Heidenhain: Scale Drum 532728-03 (TTR ERA 4400)
Heidenhain: Scale Drum 532728-03 (TTR ERA 4400)

Heidenhain

833-9MOTION inquiry@e-motionsupply.com.
Price : $2,409.00


Availability: 1-2 Business Days
Order #: 532728-03
Qty:

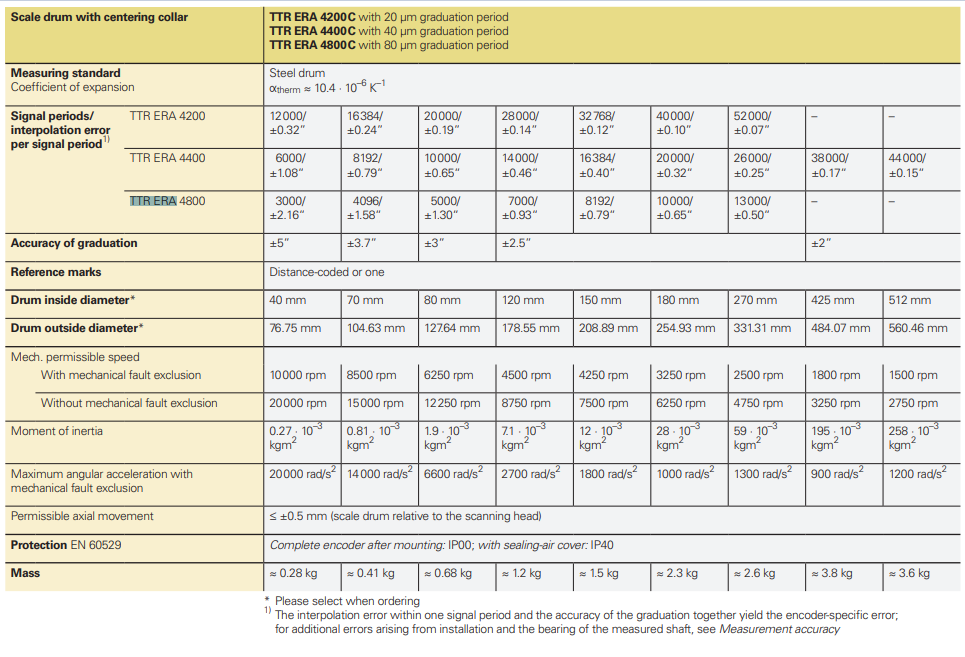

Description Ordering Information Specifications and Drawings


Heidenhain: Scale Drum 532728-03 (TTR ERA 4400)
Scale Drum for Incremental Modular Angle Encoder without Integral Bearing

ID 532728-03
Part Name TTR ERA 4400
Description

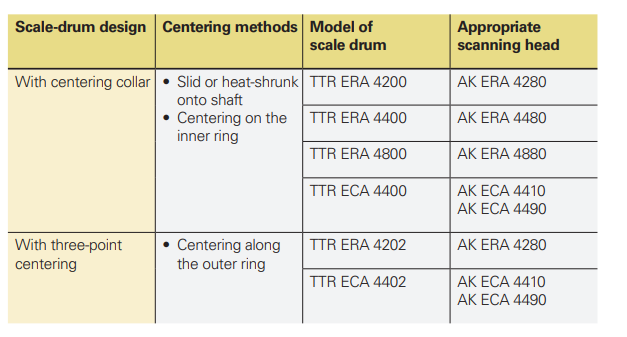

TTR ERA 4400
Scale drum for incremental modular angle encoder
without integral bearing
Line count:              10000
Grating period:          40.000 µm
Accuracy of the
graduation:              ± 3.0 ''
Geometry of drum:        Outside Ø 127.64 mm,
                         inside Ø 80 mm, hole
                         circle Ø 95 mm, 6 holes Ø
                         5.5 mm, with centering
                         collar
Reference mark:          1 reference mark
Mechanical permissible
speed without mechanical
fault exclusion:         12250 min-1
Mechanical permissible
speed with mechanical
fault exclusion:         6250 min-1
