Heidenhain: Scale Drum 532729-04 (TTR ERA 4800)

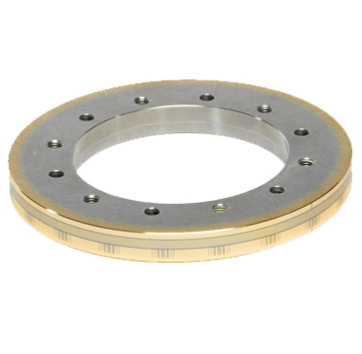

Heidenhain: Scale Drum for Incremental Modular Angle Encoder 532729-04 (TTR ERA 4800)

Heidenhain

833-9MOTION inquiry@e-motionsupply.com.
Price : $2,698.00


Availability: Subject to availability
Order #: 532729-04
Qty:

Description Ordering Information Specifications and Drawings


Heidenhain: Scale Drum for Incremental Modular Angle Encoder 532729-04 (TTR ERA 4800)
Scale Drum for Incremental Modular Angle Encoder without Integral Bearing

ID532729-04
Part Name TTR ERA 4800
Description
Scale drum for incremental modular angle encoder
without integral bearing
Line count:              7000
Grating period:          80.000 µm
Accuracy of the
graduation:              ± 2.5 ''
Geometry of drum:        Outside Ø 178.55 mm,
                         inside Ø 120 mm, hole
                         circle Ø 140 mm, 6 holes
                         Ø 5.5 mm, with centering
                         collar
Reference mark:          1 reference mark
Mechanical permissible
speed without mechanical
fault exclusion:         8750 min-1
Mechanical permissible
speed with mechanical
fault exclusion:         4500 min-1
