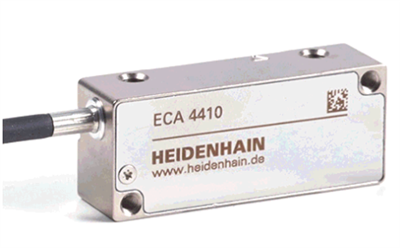

AK ECA 4410
Scanning head for absolute angle encoder without
integral bearing
Drum outside diameter:    104.63 mm
Positions per revolution: 134217728
Interface:                EnDat 2.2
Ordering designation:     EnDat22
Electrical permissible
speed:                    7000 1/min
Rotational direction of
graduation carrier:       CW, positive counting
Power supply:             3.6 V ... 14 V
Electrical connection:    Coupling M12, male,
                          8-pin
Pin configuration:        D532351
Cable length:             1.00 m
Cable type:               PUR Ø 3.7 mm
Degree of protection:     IP67 (EN60529)
Safety concept:           Fault exclusion for the
                          loosing of the
                          mechanical connection
                          possible
