Horter & Kalb - I2C-Support für Raspberry PI

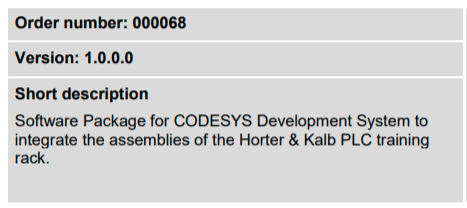

Software Package for CODESYS Development System to integrate the assemblies of the Horter & Kalb PLC training rack

Product description:

The library contains two sample programs to read out the digital and analog input modules as well to control the digital and analog output modules via the I2C bus from the Raspberry Pi.

Technical description

Horter_Kalb_Raspi_Support.package The package must be installed on "Tools / Package Manager" in CoDeSys Development System.

Horter_Kalb_Raspi_Support_FB_Example.project Horter_Kalb_Raspi_Support_IO_driver_Example.project

Sample programs with web visualization of the four PLC module types:

I2HE Digital Input module 8 bit

I2HA Digital Output module 8 bit

I2HAE Analog Input module 5 channels 10 bit

I2HAA Analog Output module 4 channels 10 bit
