LS Mecapion: L7NHB Servo Drive

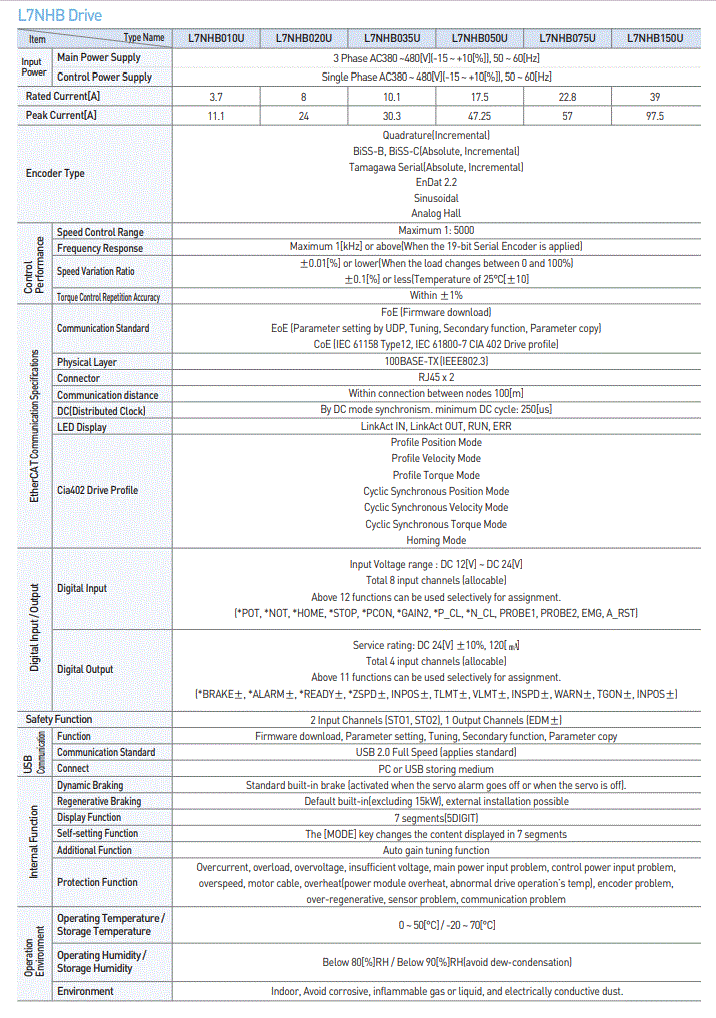

Specifications:
L7NHB

• Input Power: AC 380[V]~480[V]

• Capacity: 1[kW]~15[kW]

• Rated Current: 3.7[A]~39[A]

• Encoder: Quadrature(Incremental) , BiSS-B and BiSS-C(Absolute, Incremental), Tamagawa Serial(Absolute, Incremental), EnDat 2.2, Sinusoidal, Analog Hall

• Communication Type:FoE (Firmware download) , EoE (Parameter setting by UDP, Tuning, Secondary function, Parameter copy), CoE (IEC 61158 Type12, IEC 61800-7 CIA 402 Drive profile)

• Cia402 Drive Profile: Profile Position Mode Profile Velocity Mode Profile Torque Mode Cyclic Synchronous Position Mode Cyclic Synchronous Velocity Mode Cyclic Synchronous Torque Mode Homing Mode

  L7NHB Series Price List With Description

  Series	Model	Old Model	Description	Unit Price(USD)

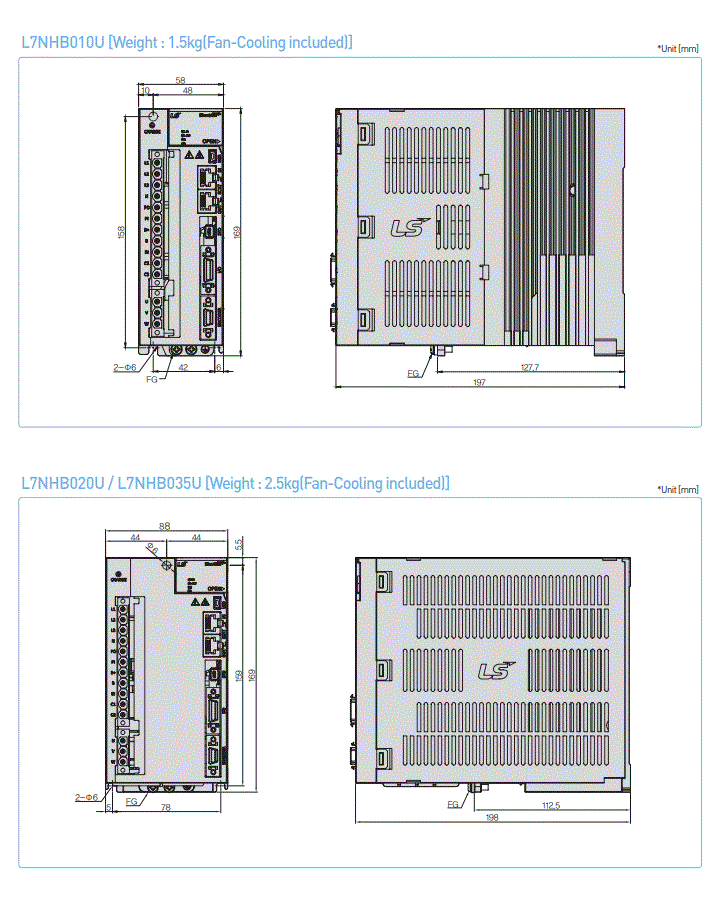

  L7NH Drive	L7NHB010U	XDL-L7NHB010UE	3P-400V, 1.0KW,3.7A	$852.50
  L7NH Drive	L7NHB020U	XDL-L7NHB020UE	3P-400V, 2.0KW,8.0A	$1120.50
  L7NH Drive	L7NHB035U	XDL-L7NHB035UE	3P-400V, 3.5KW,10.1A	$1267.50

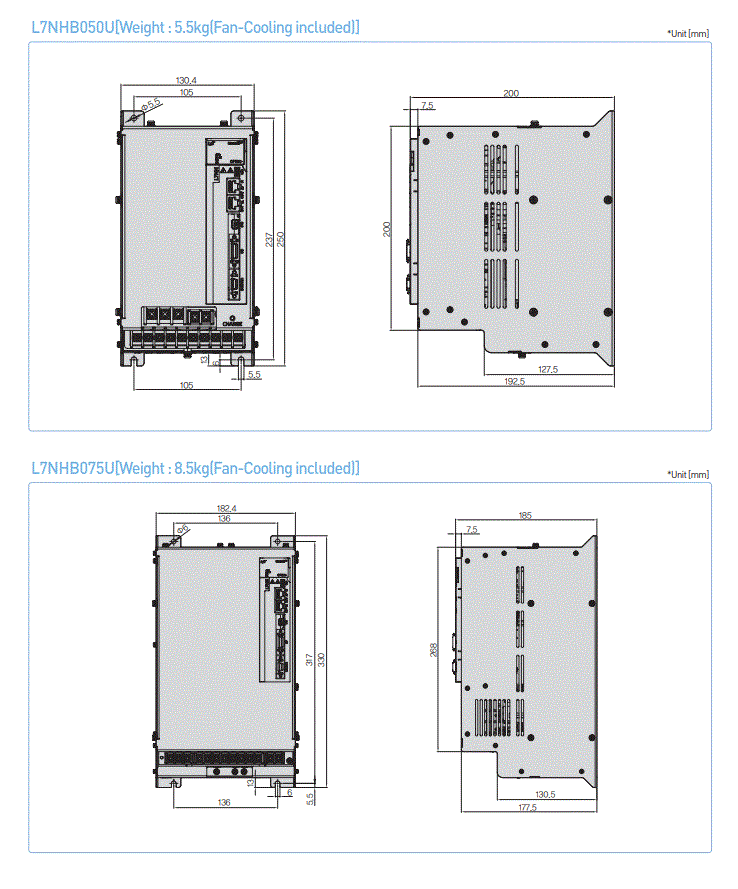

  L7NH Drive	L7NHB050U	XDL-L7NHB050UE	3P-400V, 15.0KW,17.5A	$1698.00
  L7NH Drive	L7NHB075U	XDL-L7NHB075UE	3P-400V, 7.5KW,22.8A	$1987.00

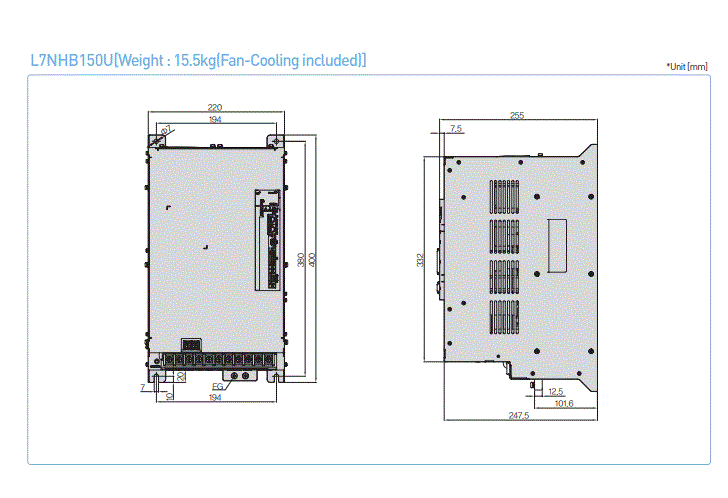

  L7NH Drive	L7NHB150U	XDL-L7NHB150UE	3P-400V, 15.0KW,39.0A	$3316.50
