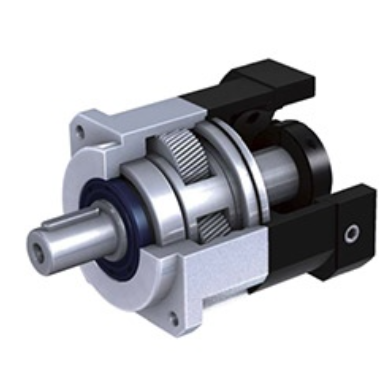

LIMING Precision Planetary Reducer：PGX44-H-3

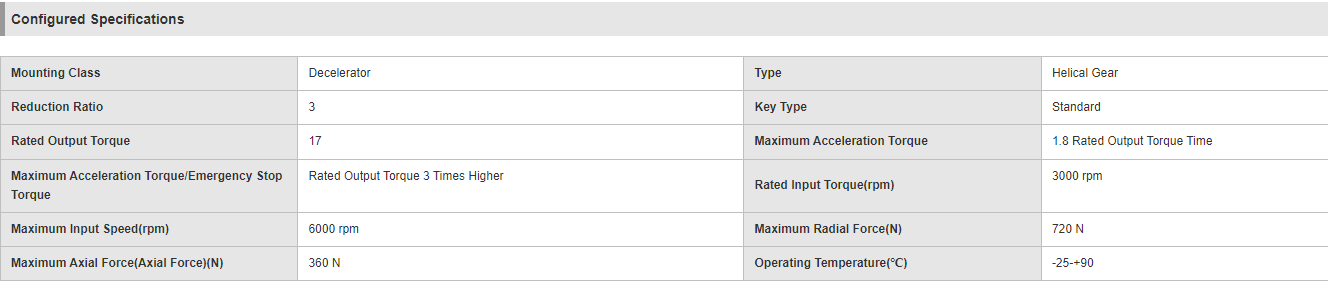

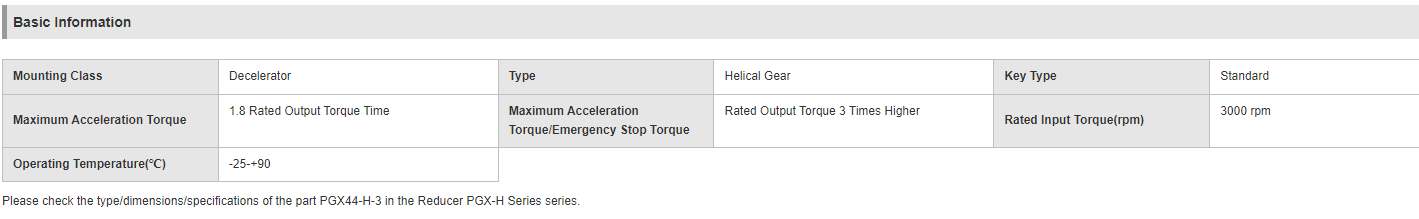

Specifications:

· Ratio: 3:1

· Rated Output Torque: 17 Nm

· Backlash: ≤8 arcmin

· Available Sizes: 44

Features

• Low Noise: Smooth and quiet operation possible through the use of helical gear
• High rigidity and high torque: Use of uncage needle bearing , increases rigidity and torque
• High efficiency: 1-Stage Over 97%, 2-Stage Over 94%
