FAULHABER: Linear DC-Servomotors LM0830-040-01
LM0830-040-01

Faulhaber
833-9MOTIONinquiry@e-motionsupply.com.
Price : $879.00


Availability: Lead time approx. 8 weeks
Order #: LM0830-040-01
Qty:

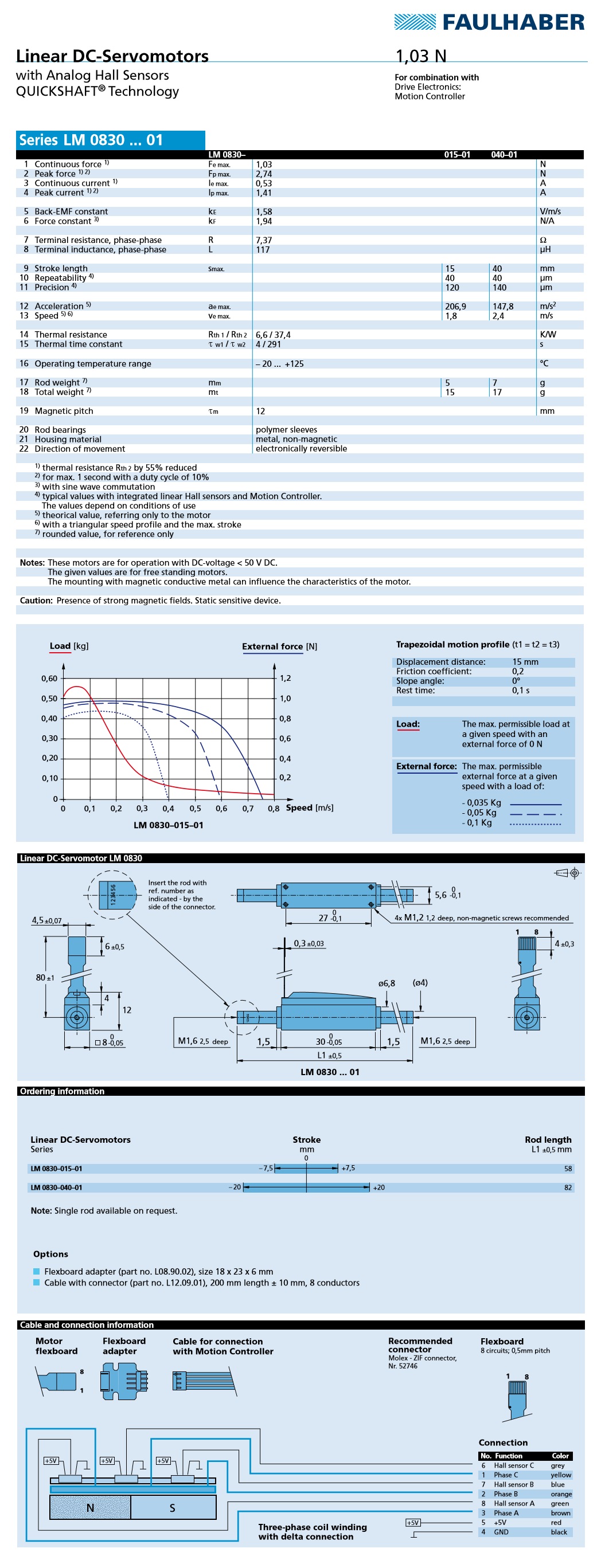

Description Specifications and Drawings


Please call 833-9MOTION for the price of order over quantity of 50.

FAULHABER: Quickshaft® Linear DC-Servomotors LM0830-040-01

QUICKSHAFT® Linear DC-Servomotors bring linear motion to new dimensions. These high performance, miniature, linear motors consist of a solid stator housing and coil assembly and a multi-pole magnetic force rod.

High power magnets help the motor achieve its excellent force and dynamic speed performance.

Specifications:

  • Continuous Force (N):1.03

  • Peak Force (N): 2.74

  • Stroke Length (mm):15 ... 40

  • Repeatability (µm): 40

  • Maximum Precision (µm): 120

  • Maximum Speed (m/s): 2.4


Model No.: LM 0830-015-01, LM 0830-040-01
