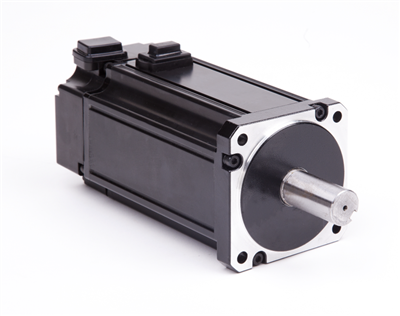

LS Mecapion: Brushless Servo Motor (APMC-FCL10AMK)

LS Mecapion: Brushless Servo Motor (APMC-FCL10AMK)

Price : $522.00

Availability: Lead time is 4-6 weeks.
Order #: APMC-FCL10AMK

Qty:

Description

Ordering Information

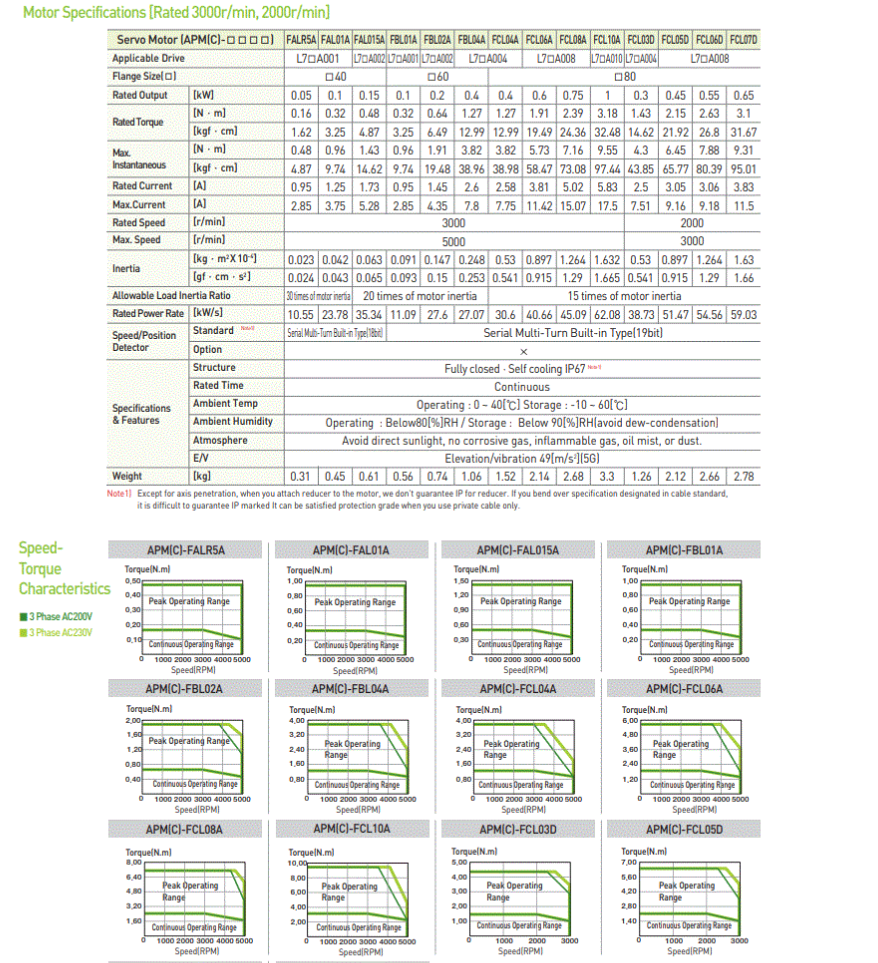

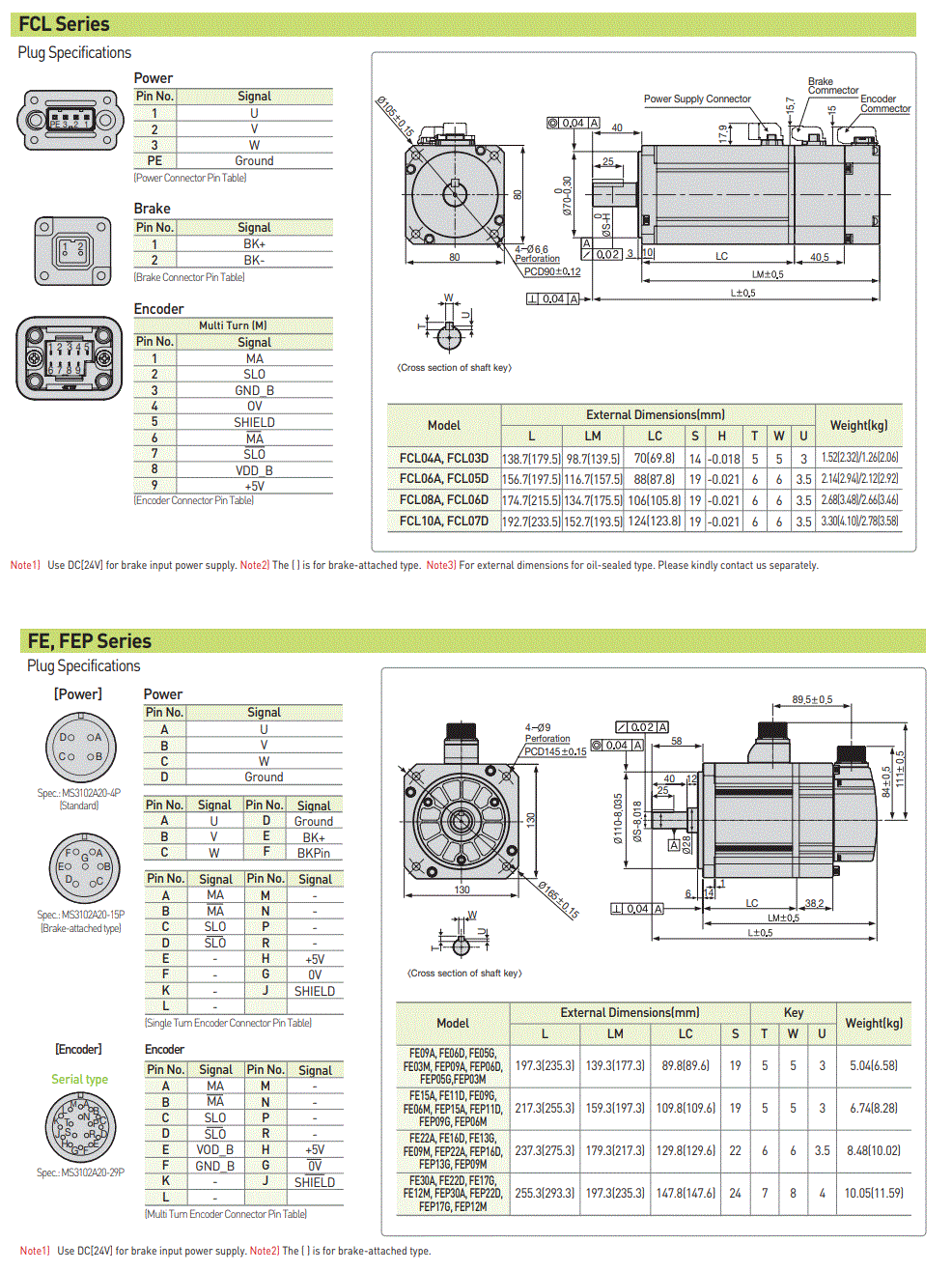

Specifications and Drawings

LS Mecapion: Brushless Servo Motor (APMC-FCL10AMK)

Specifications:

· Flange Size: 80 mm

· Rated power: 1 kW

· Torque: 3.18Nm

· Rated/Max current: 5.83/17.5 A

· Rated/Max rpm: 3000/5000 [rpm]

· Speed, Position transducer: Serial type 19 Bit

· Weight: 3.3 Kg
