LS Mecapion: L7NHA Servo Drive

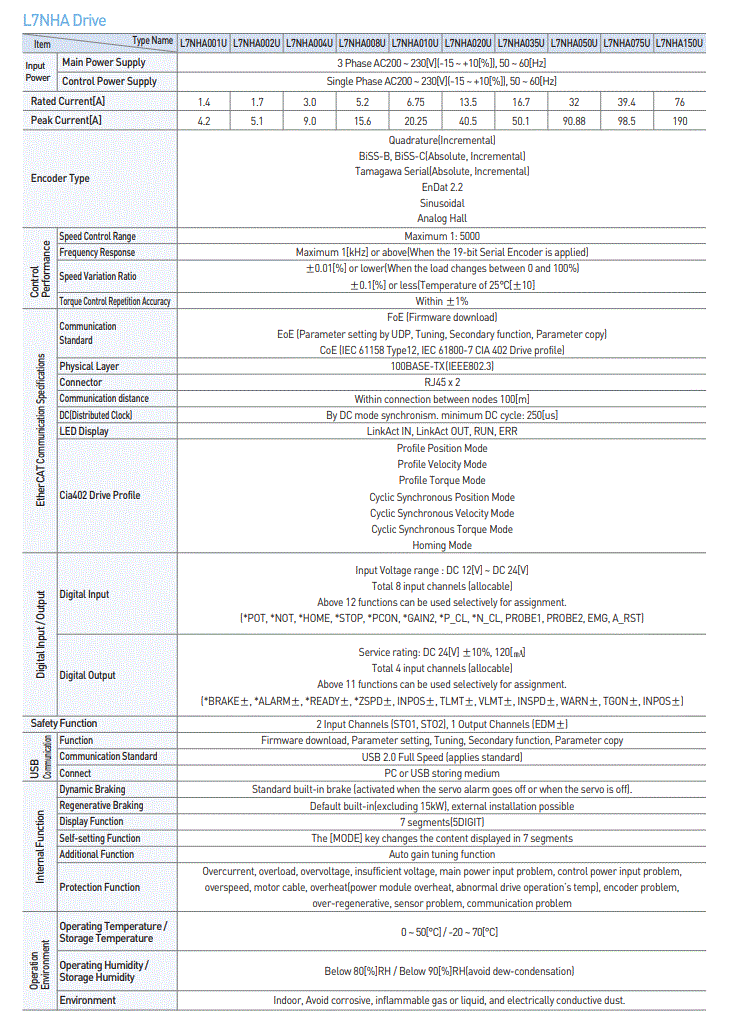

Specifications:

L7NHA

• Input Power: 3 Phase AC220 ~230[V](-15 ~ +10[%]), 50 ~ 60[Hz]

• Capacity: 100[W]~15[kW]

• Rated Current: 1.4[A]~76[A]

• Encoder: Quadrature(Incremental) , BiSS-B and BiSS-C(Absolute, Incremental), Tamagawa Serial(Absolute, Incremental), EnDat 2.2, Sinusoidal, Analog Hall

• Communication Type:FoE (Firmware download) , EoE (Parameter setting by UDP, Tuning, Secondary function, Parameter copy), CoE (IEC 61158 Type12, IEC 61800-7 CIA 402 Drive profile)

• Cia402 Drive Profile: Profile Position Mode Profile Velocity Mode Profile Torque Mode Cyclic Synchronous Position Mode Cyclic Synchronous Velocity Mode Cyclic Synchronous Torque Mode Homing Mode
