LS Mecapion: L7SA Servo Drive AC200V Series

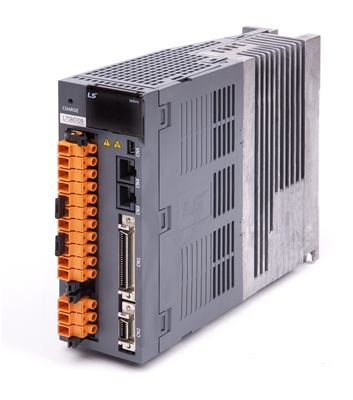

LS Mecapion: L7SA Servo Drive

Alternate View

Request discount coupon over Qty5

Price with Selected Options: $0.00

Availability: Usually Ships in 6 to 8 Weeks
Order #: L7SA-

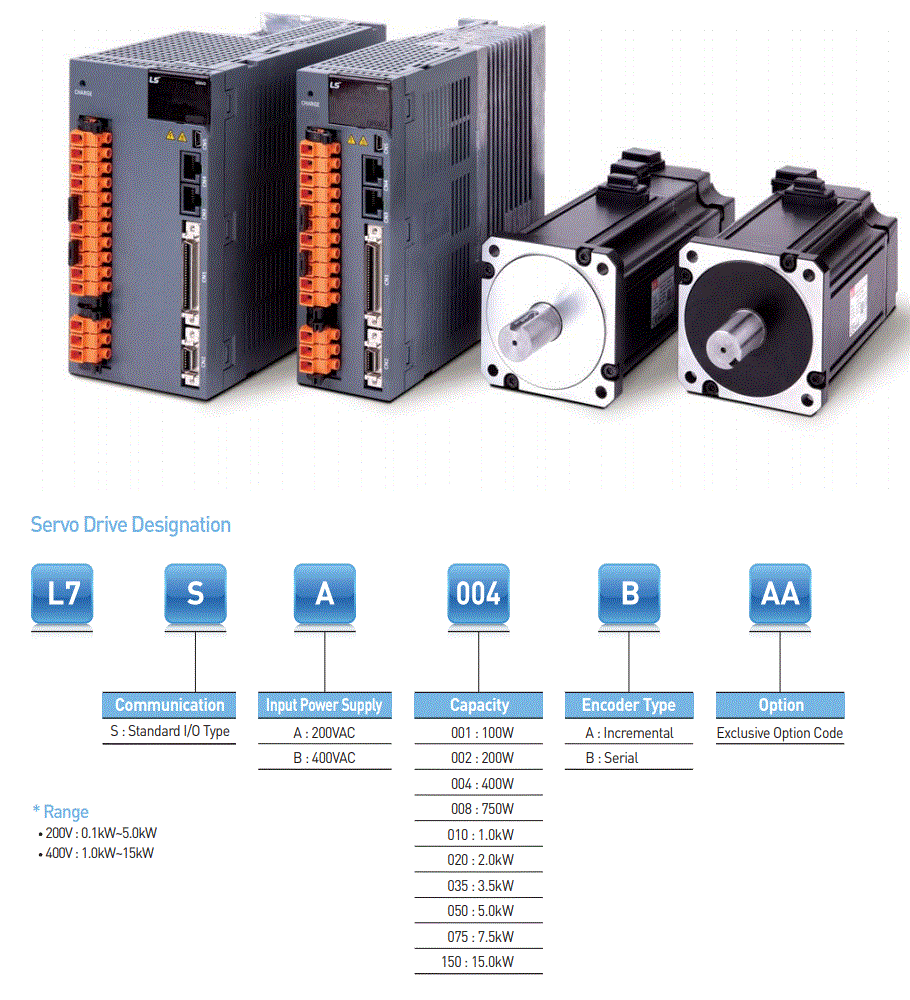

Model Number/Code*:

Qty:

Description

Ordering Information

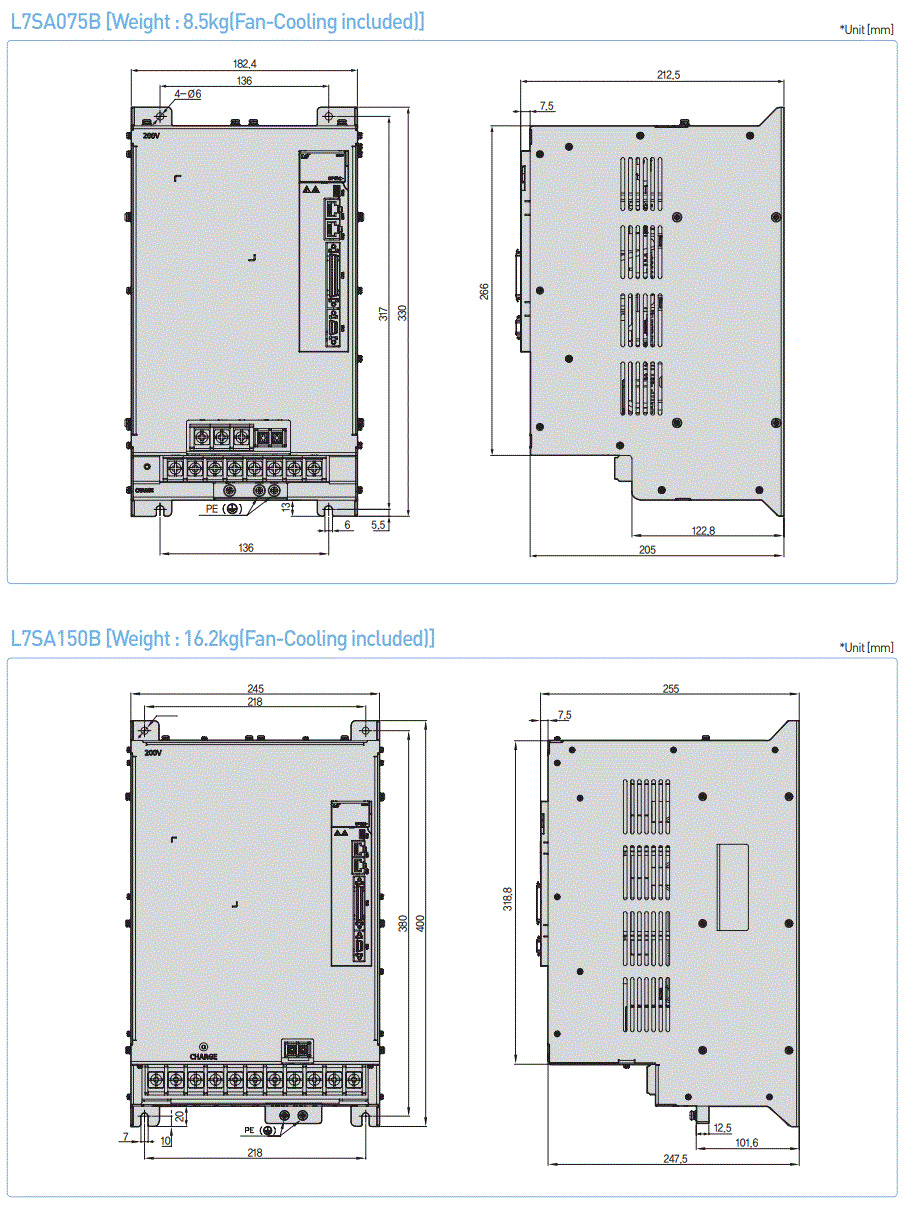

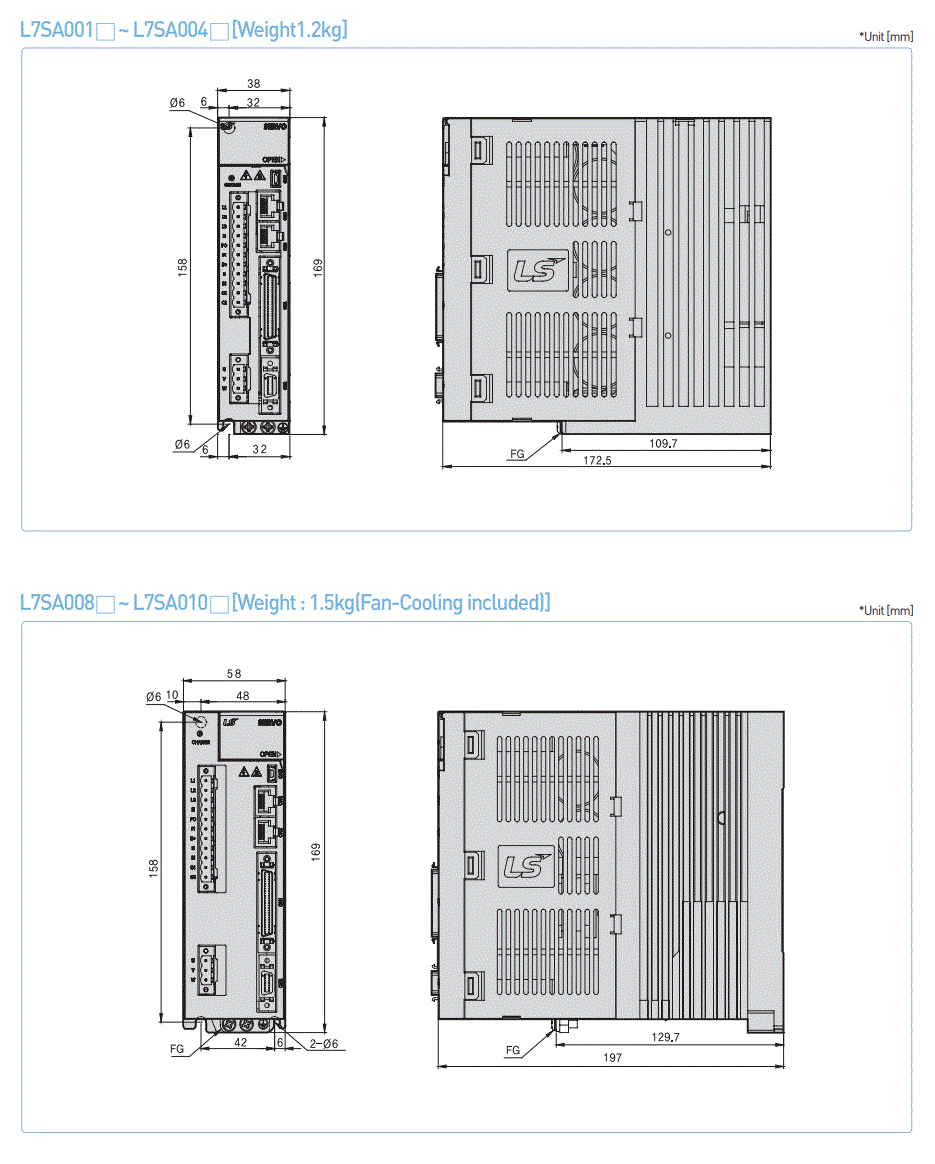

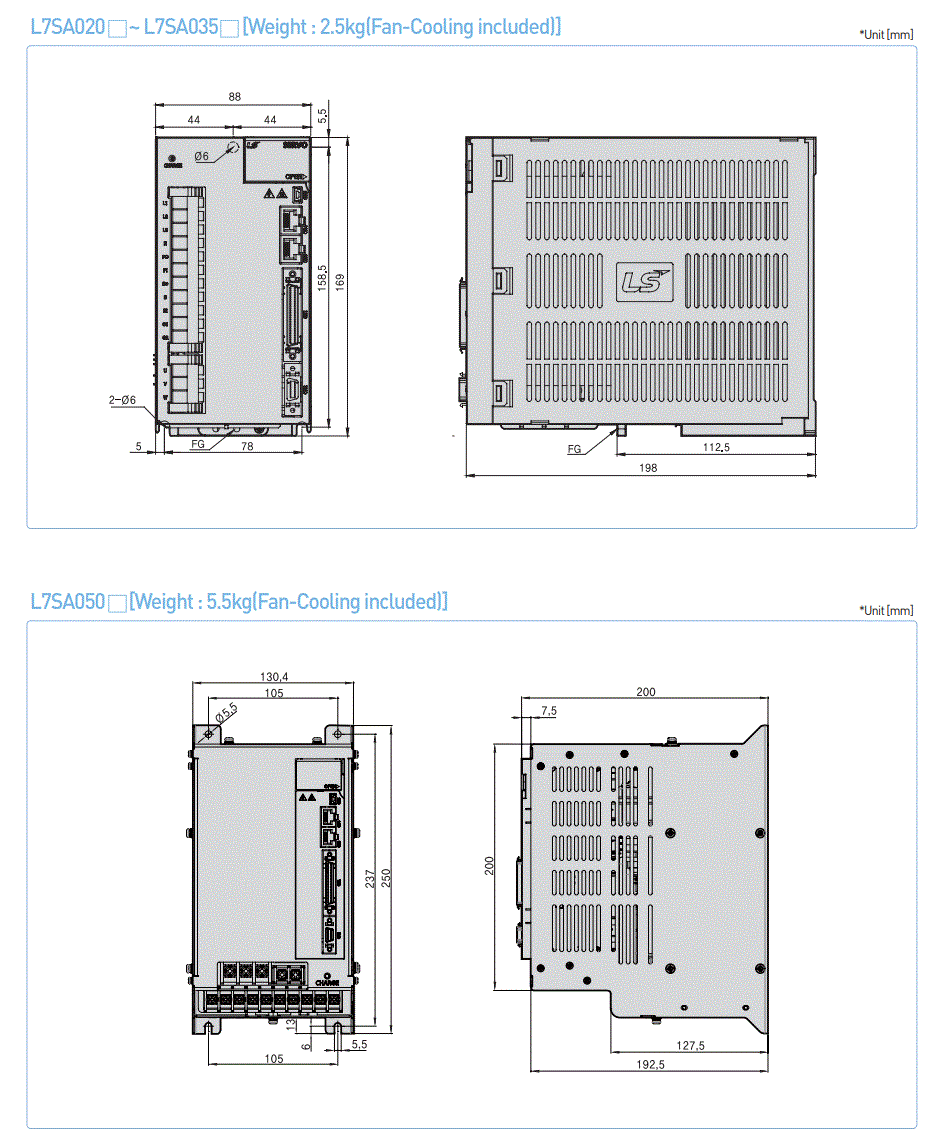

Specifications and Drawings

LS Mecapion: L7SA Servo Drive

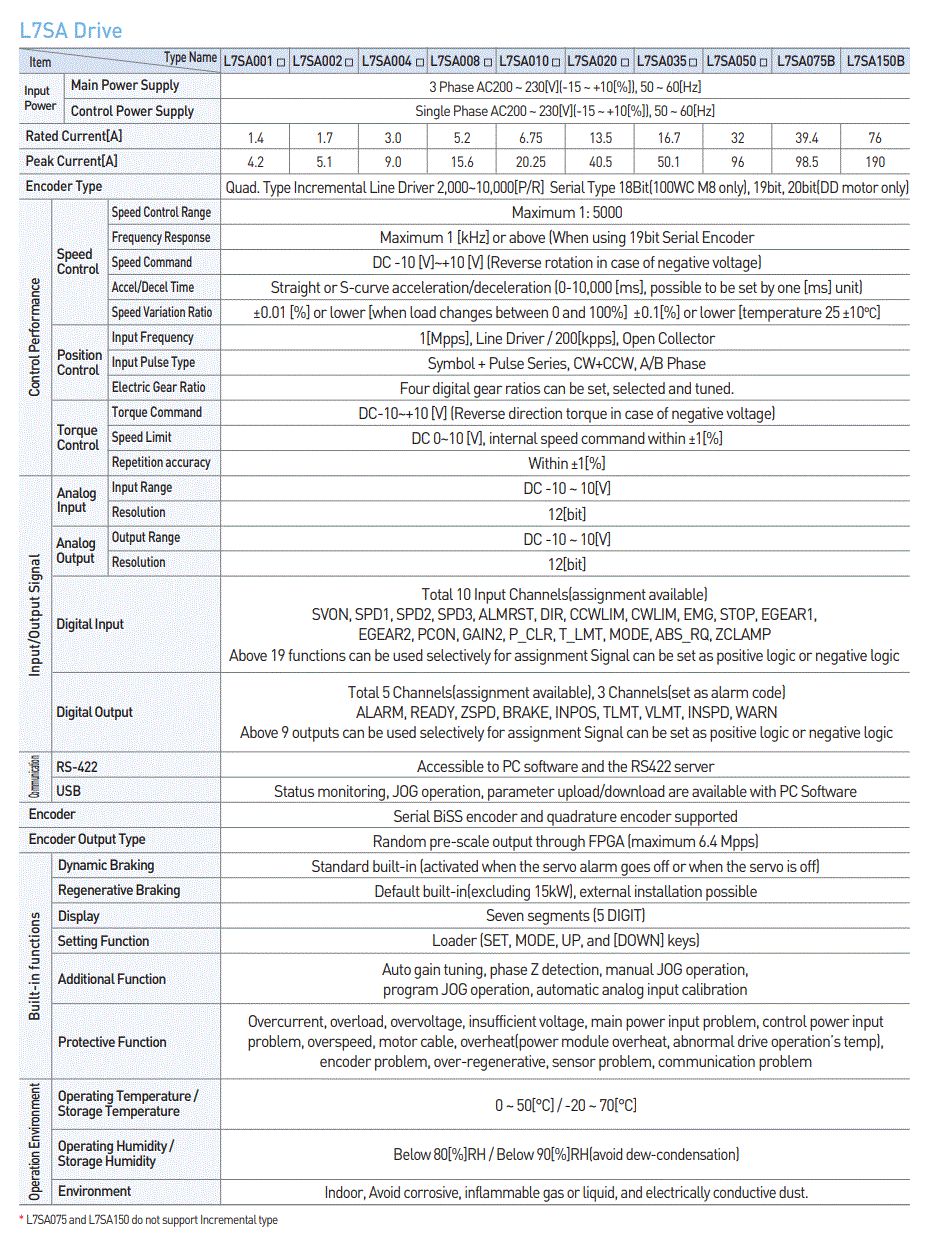

Specifications:

Power Rang:100w-15.0Kw
Main power supply: 3Phase AC200 ~ 230[V]
Rated current: 1.4[A]-76[A]
Peak current: 4.2[A]-190[A]
Encoder type: Incremental encoder, 19Bit BISS Serial encoder
Frequency response: Max 1kHz

L7SA Series List Price

Model	Old Model	Description	Unit Price(USD)
L7SA001A	XDL-L7SA001AE	3P-220V, 100W, 1.4A	$567.00
L7SA002A	XDL-L7SA002AE	3P-220V, 200W, 1.7A	$571.00
L7SA004A	XDL-L7SA004AE	3P-220V, 400W, 3.0A	$579.00
L7SA008A	XDL-L7SA008AE	3P-220V, 800W, 5.2A	$712.00
L7SA010A	XDL-L7SA010AE	3P-220V, 1.0KW, 6.7A	$717.00
L7SA020A	XDL-L7SA020AE	3P-220V, 2.0KW, 13.5A	$969.00
L7SA035A	XDL-L7SA035AE	3P-220V, 3.5KW, 16.7A	$992.00
L7SA050A	XDL-L7SA050AE	3P-220V, 5.0KW, 32.0A	$1,660.00
L7SA001B	XDL-L7SA001BE	3P-220V, 100W, 1.4A	$591.00
L7SA002B	XDL-L7SA002BE	3P-220V, 200W, 1.7A	$665.00
L7SA004B	XDL-L7SA004BE	3P-220V, 400W, 3.0A	$683.00
L7SA008B	XDL-L7SA008BE	3P-220V, 800W, 5.2A	$816.00
L7SA010B	XDL-L7SA010BE	3P-220V, 1.0KW, 6.7A	$821.00
L7SA020B	XDL-L7SA020BE	3P-220V, 2.0KW, 13.5A	$1,073.00
L7SA035B	XDL-L7SA035BE	3P-220V, 3.5KW, 16.7A	$1,296.00
L7SA050B	XDL-L7SA050BE	3P-220V, 5.0KW, 32.0A	$1,964.00

Cables and Connectors Accessory purchase link

Motors Purchase link
