AC Permanent Magnet Synchronous Motor (PMSM)

Description

The LUGE-M series motor is available air or water-cooled and in 5 sizes. The power range is from 1700 W to 36 kW.

Optionally available integrated wheel hub drives supplement the engine to the drive axle and allow a large number of variants in two sizes and countless transmission levels.

LUGE provides here brushless synchronous disc motor for traction applications in axial flux technology (pancake motor). The LUGE-M series motor, especially designed for traction applications, can be used in a wide range of battery-powered applications, such as

 Municipal technology
Sweepers
Slope mowers
Transport vehicles
Gangway drive

 Logistics
Unmanned transport systems
Heavy load transport systems
Mobile robots
Mecanum vehicles
Forklift trucks and transporters

 Agricultural Machines
Harvesters
Field robots
Stable robots
Mowers and vehicles
Wind technology
Electric lawn mowers

 Two-wheeled vehicles
E-scooters
Cargo bikes

Leisure/Leisure Vehicles
Go-Karts
Golf Carts
Leisure park vehicles
Rehab vehicles

 Other applications
Compressor technology
Wind technology
Hybrid applications
Generators
Electric boats
and many other applications

This achievement is based on the high level of flexibility that is needed to provide customized motor. The individual winding design, the flat rotor and the housing for very compact motor are an example. The Luge-M motor can be combined with different gear boxes and brakes. Suitable motor controllers with regenerative braking are available in a wide power- and voltage range. LUGE guarantee the highest quality standards. Our products have been developed for meeting the demand in industrial and automotive applications.

Features / Benefits
 Axial magnetic flux design
 Very compact, flat construction
 High power density and high efficiency
 Air- or Liquid cooled
 Reduced diameter and length
 Excellent torque / weight / volume ratio
 High overload capability
 Customized solutions possible

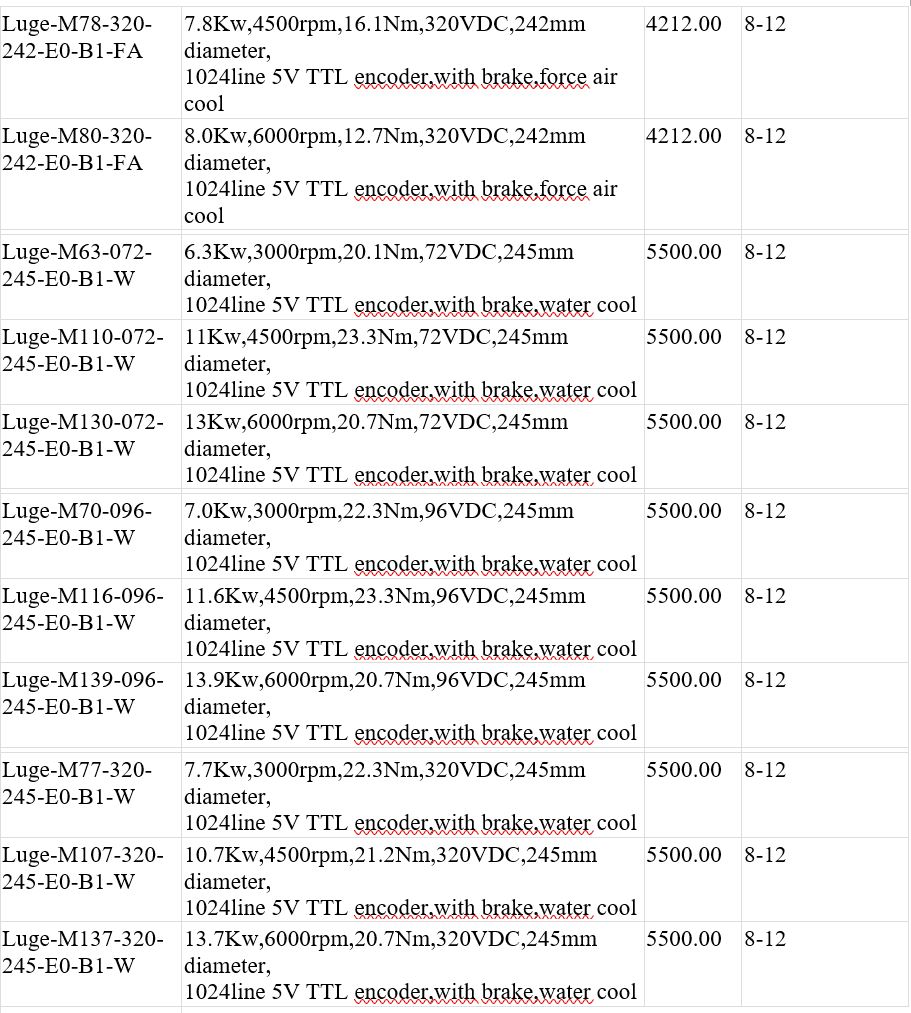

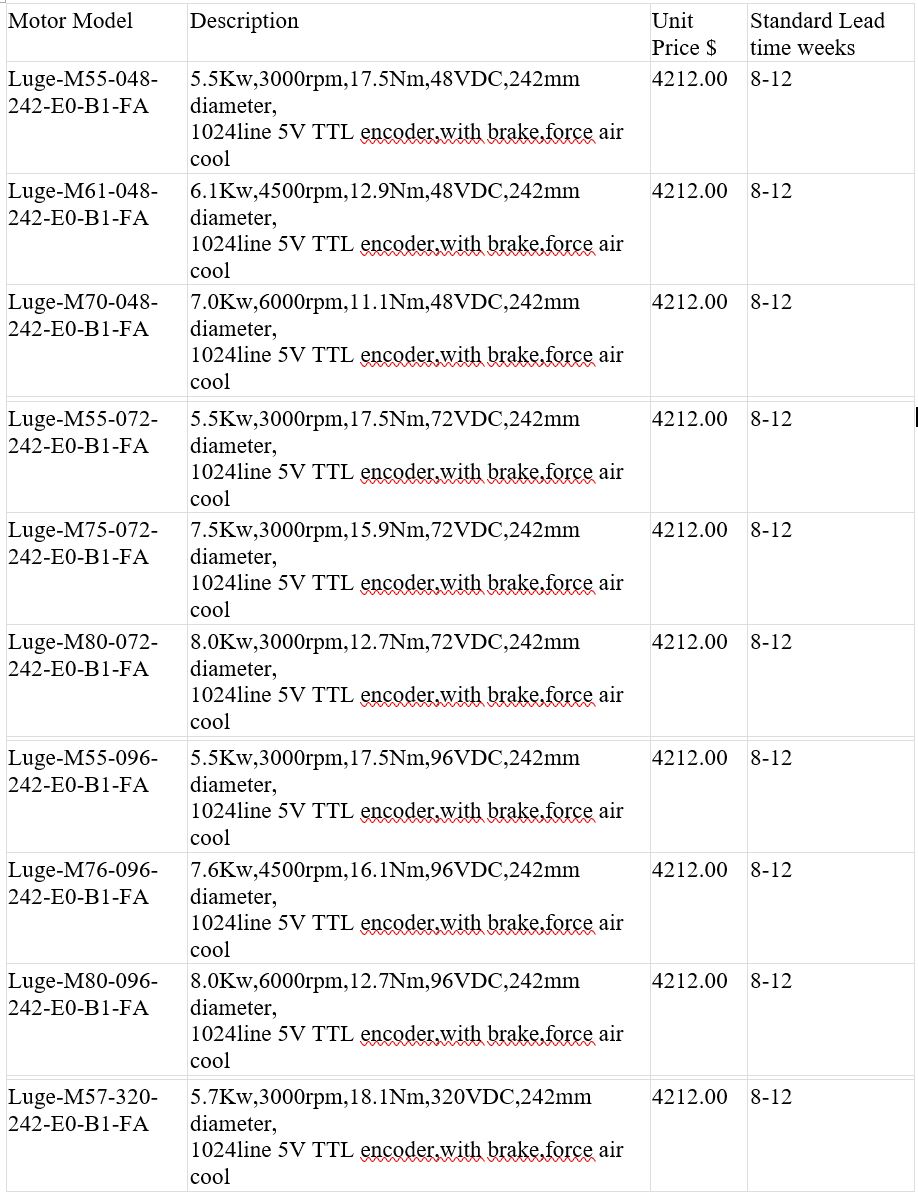

Models

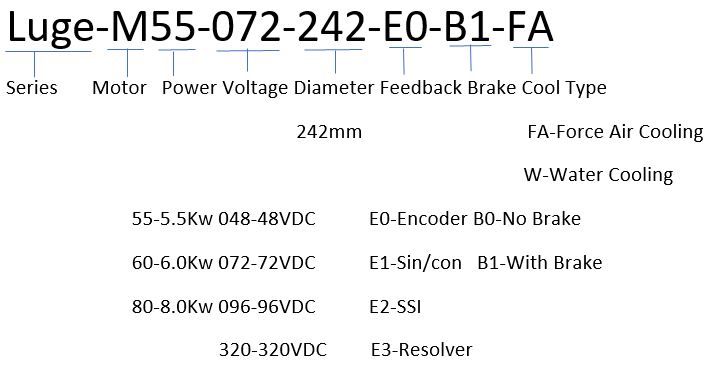

Model Designation

15.7Kg




17.8Kg
