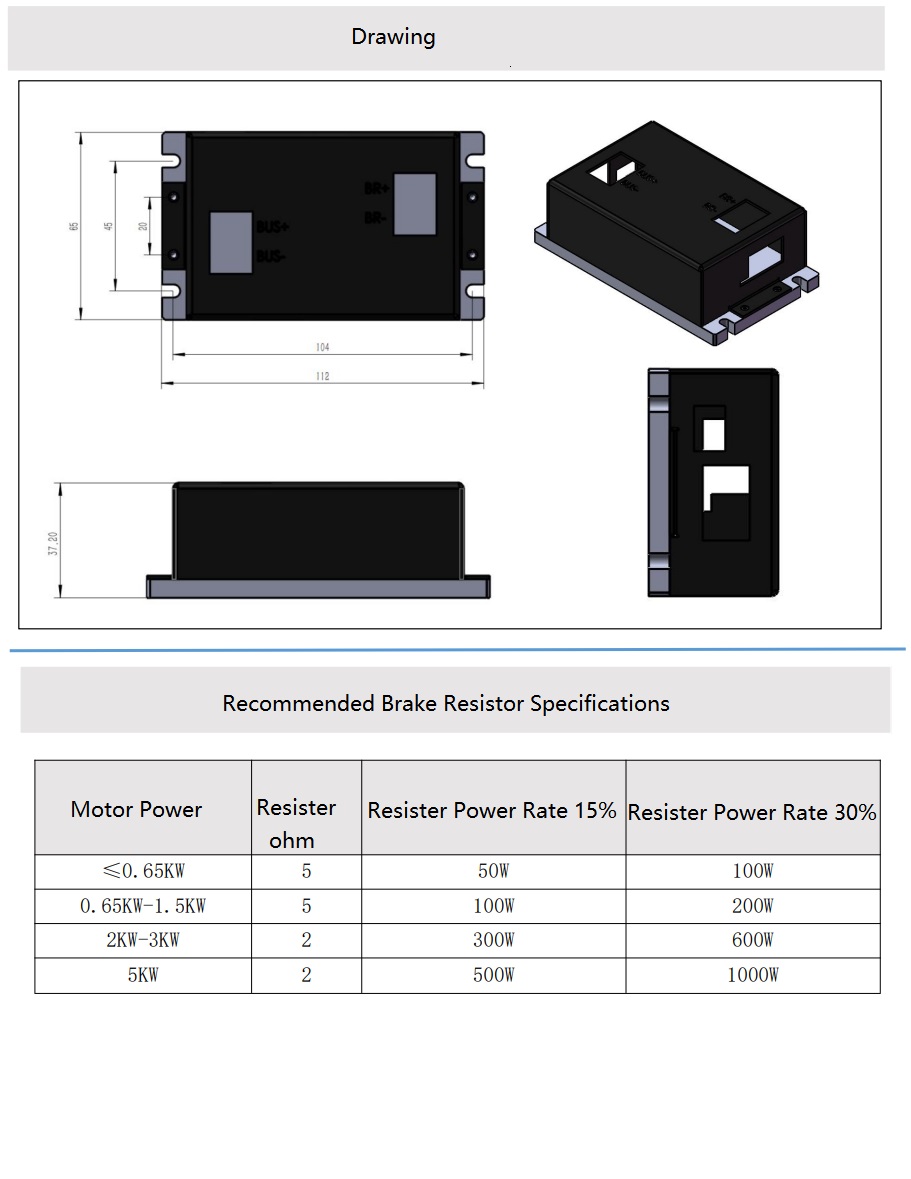

Specifications and Drawings

LUGE: shunt regulator (brake resistor/brake module/low Voltage brake module)

LUGE-SR060/080

Product Summary

LUGE-SR series shunt regulators are designed to be used in applications where the actuator in the servo system feeds back energy during the deceleration process, causing the bus voltage to rise. During deceleration braking, most of the stored mechanical energy is returned to the power supply, which charges the output capacitor to a higher voltage. If charging reaches the system overvoltage protection point (controller, amplifier, sensor, etc.), the system will fail. To ensure smooth braking of high inertia loads, a shunt regulator is recommended. The shunt regulator is needed by observing the change in the DC bus voltage by braking under the worst conditions.

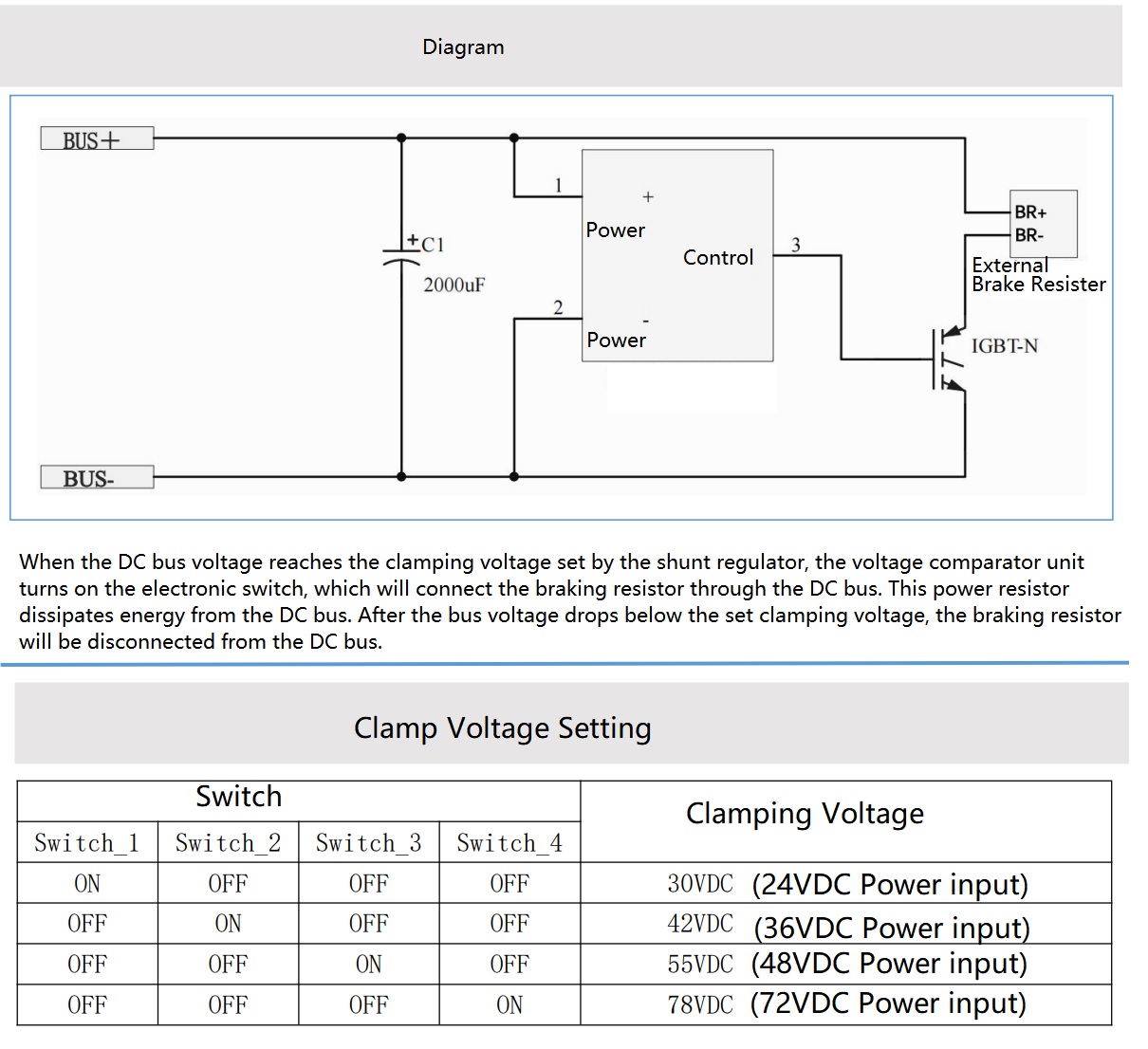

The LUGE-SR060/080 allows users to select four different brake clamping voltages to meet the system requirements through a 4-position DIP switch.

Features

Apply to low-voltage DC power supply system

There are four different clamping voltages for user to set

The power of the braking resistor can be freely selected (the current through the shunt circuit needs to be calculated)

Product parameters

Shunt circuit can withstand continuous current: 60A

The shunt circuit can withstand peak current: 160A (2s)

Internal bus capacitance: 2000uF
