Leine & Linde: Inductive Shaft Absolute Encoder 810334-01 (ISA 608)
Leine & Linde: Inductive Shaft Absolute Encoder 810334-01 (ISA 608)

Price : $1,438.00


Availability: 4-6 weeks lead time
Order #: 810334-01
Qty:

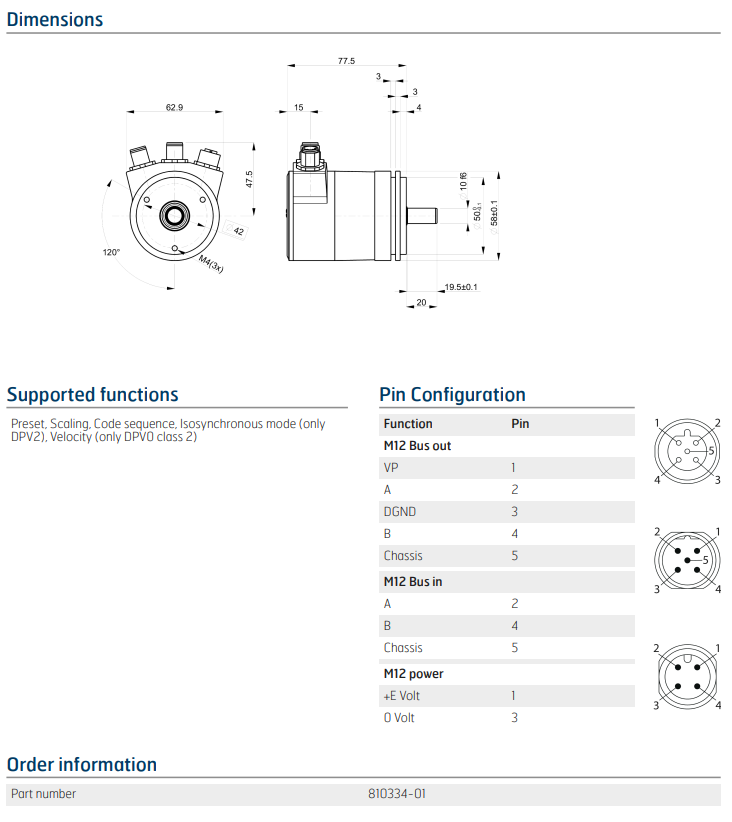

Description Specifications and Drawings

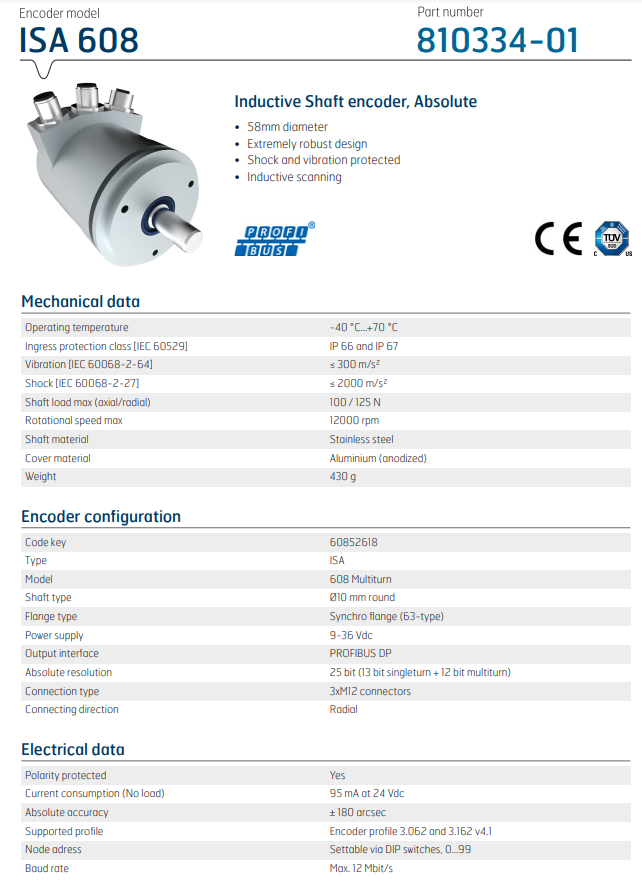

Leine & Linde: Inductive Shaft Absolute Encoder 810334-01 (ISA 608)

ISA 608

Part number: 810334-01

Inductive Shaft encoder, Absolute

  • 58mm diameter
  • Extremely robust design
  • Shock and vibration protected
  • Inductive scanning


Product data

Code key60852618
TypeISA
Model608 Multiturn
Shaft typeØ10 mm round
Flange typeSynchro flange (63-type)
Power supply9-36 Vdc
Output interfacePROFIBUS DP
Absolute resolution25 bit (13 bit singleturn + 12 bit multiturn)
Connection type3xM12 connectors
Connecting directionRadial
