Leine & Linde: Ruggedized Incremental Hollow shaft encoder RHI 503 (ID: 528955-23)
Leine & Linde: Ruggedized Incremental Hollow shaft encoder RHI 503 (ID: 528955-23)

Price : $566.00


Availability: 4-5 weeks lead time
Order #: 528955-23
Qty:

Description Specifications and Drawings


Leine & Linde: Ruggedized Incremental Hollow shaft encoder RHI 503 (ID: 528955-23)

RHI 503

Ruggedized Hollow Shaft encoder, Incremental

  • Robust Ø58 mm encoder with hollow shaft
  • Short-circuited protected outputs
  • IP67 at housing, IP66 at shaft inlet

Product data

TypeRHI
Model503 Standard
Shaft typeØ12 mm blind hollow shaft
Flange type56/57-flange
Resolution60 ppr
Power supply9-30 Vdc
Output signalHTL

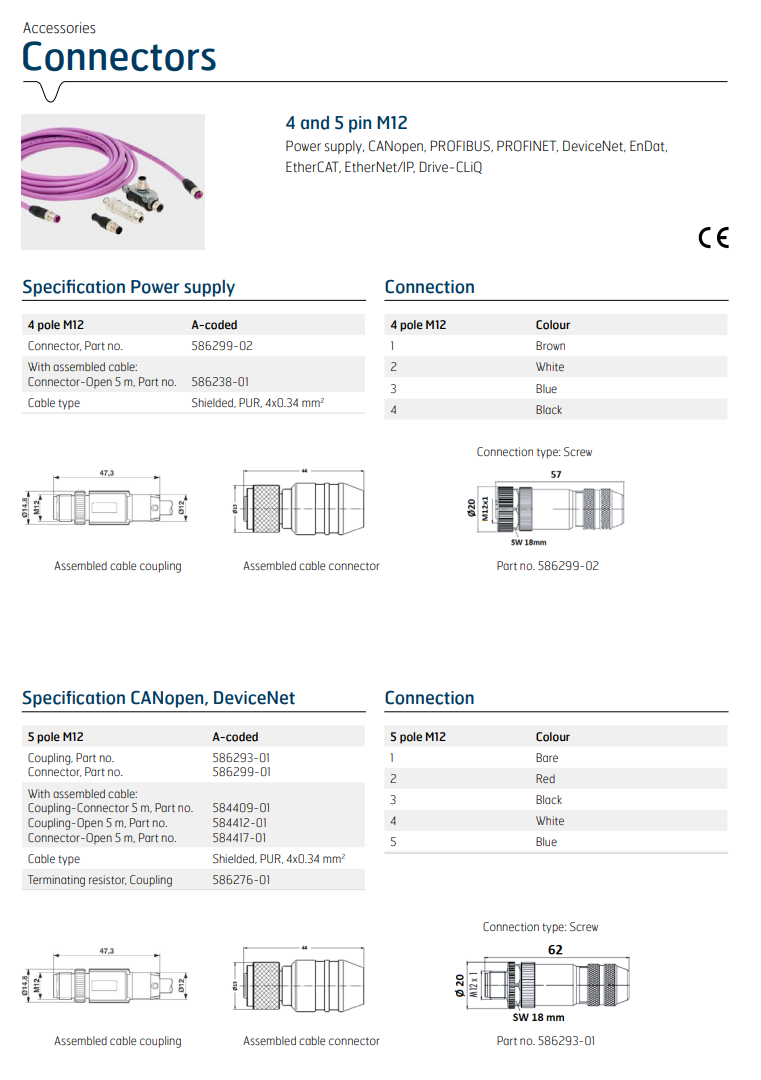

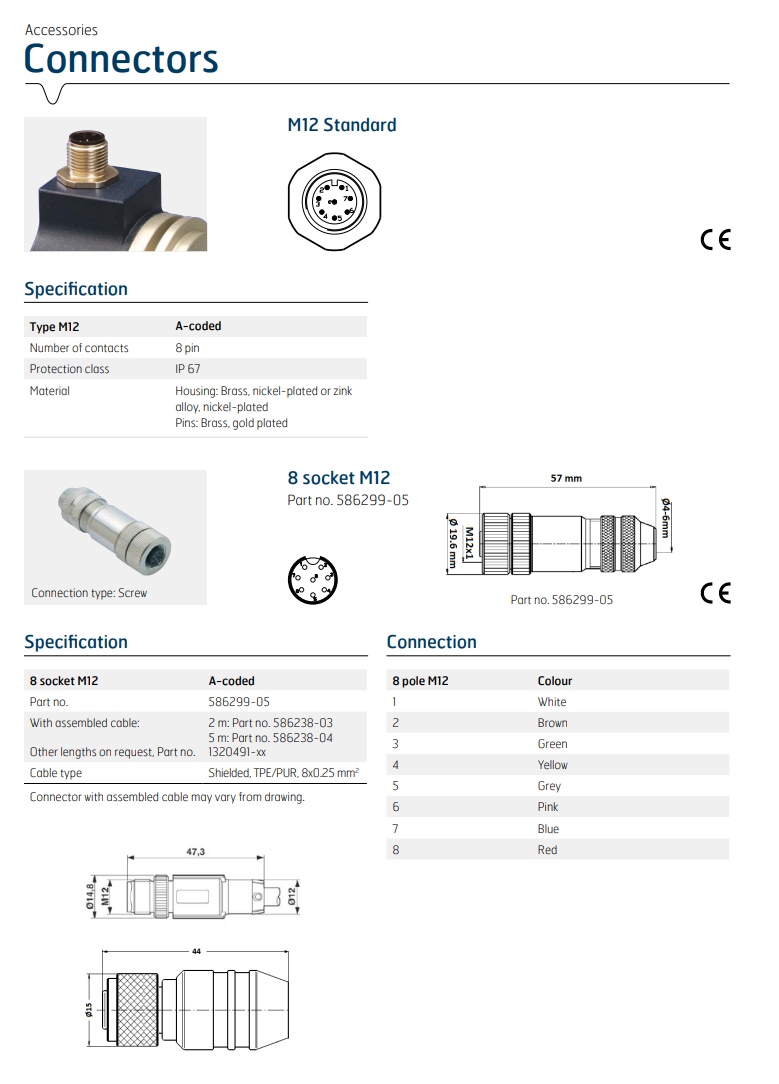

Connection typeM12 connector 8-pin
Connecting directionRadial
Number of channels6 (S00, S00\, S90, S90\, Sref, Sref\)
