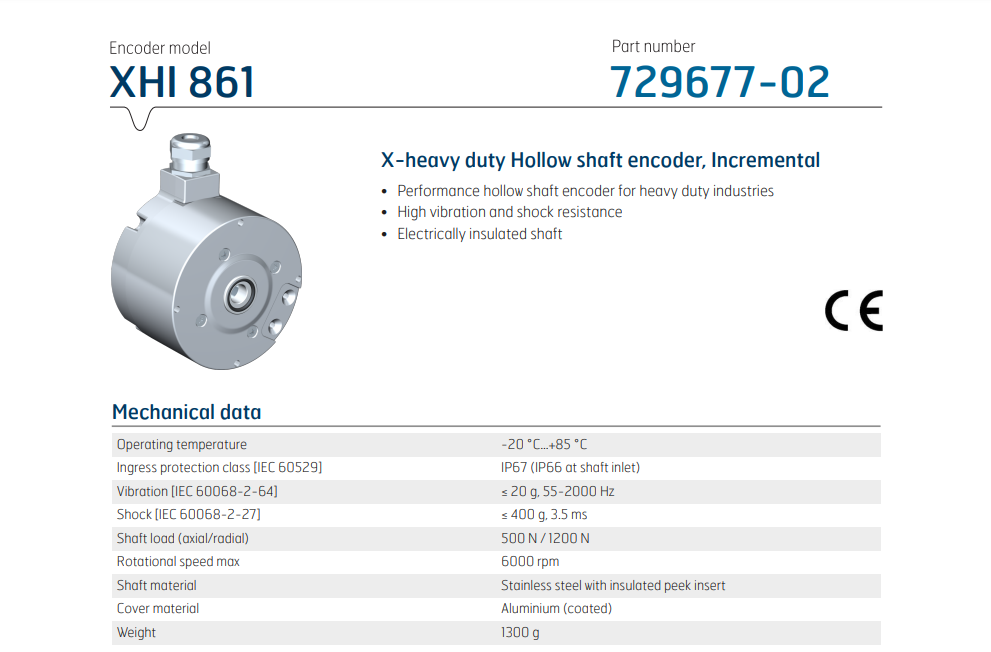

Leine & Linde: X-heavy duty Incremental Shaft Encoder XHI 861 (ID: 729677-02)

Robust incremental encoder adapted for challenging industrial environments.

X-heavy duty hollow shaft encoder, Incremental. Performance hollow shaft encoder for heavy duty industries. It has high vibration and shock resistance with electrically insulated shaft.

The product series has a long history of successful operation in applications within heavy industries, such as the steel, paper and wind power industries. These industries place stringent demands on robustness and reliability, and the encoder is designed thereafter. Mechanically it features a dual set of heavy duty bearings and a well-encapsulated enclosure.

XHI 861

X-heavy duty hollow shaft encoder, incremental.

Electrically insulated shaft

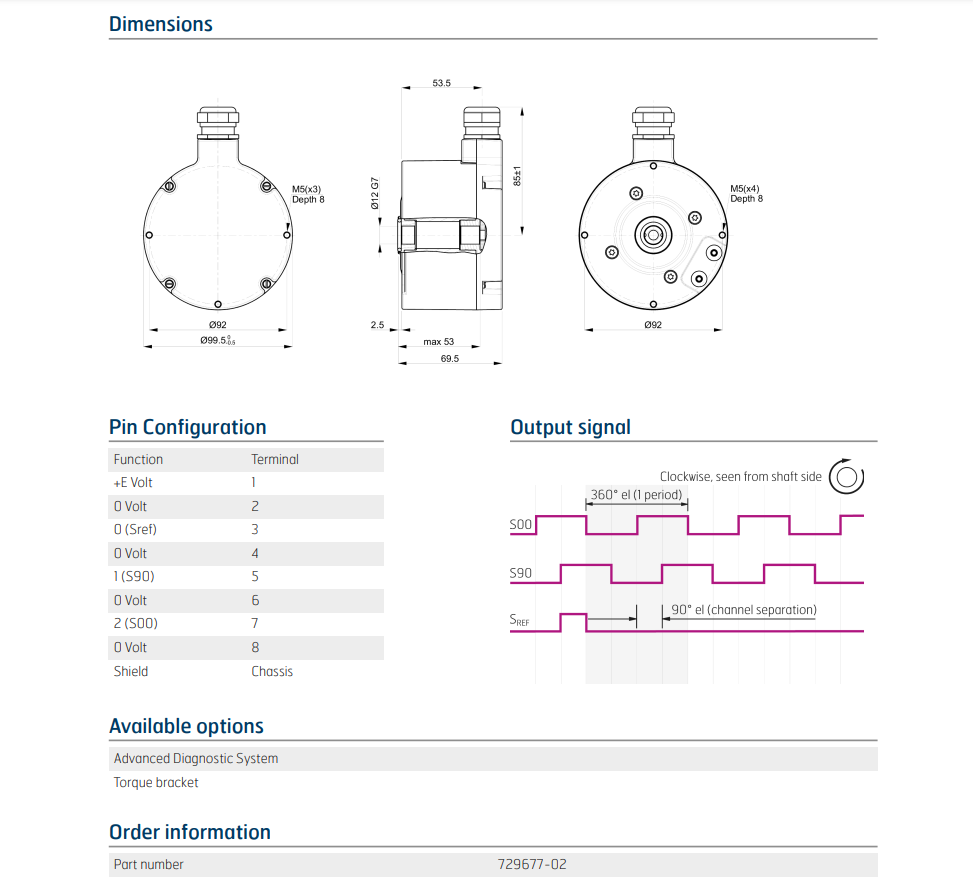

• Shaft: Blind hollow shaft for axial fastening, diameter 12 mm, depth 53 mm, bushing isolated
• Flange version: Flange type 86x, shaft hole Ø 25 mm, outside diameter 99.5 mm, bolt circle Ø 92 mm, 4 x M5 bolt holes 90° spaced
• Power supply: 9 V ... 30 V DC
• Output signal: 2048 ppr HCHTL
• Number of channels: 6 active output channels
• Electrical connection: PCB terminal block, 2 x 4-pin, 0° connection direction from conductor to the PCB
• Connecting direction: radial
• Cable bushing type: Thread M20, cable diameter 8-11 mm
