Leine & Linde: X-heavy duty Incremental Shaft Encoder XSI 850 (ID: 750728-01)

The product series has a long history of successful operation in applications within heavy industries, such as the steel, paper and wind power industries. These industries place stringent demands on robustness and reliability, and the encoder is designed thereafter. Mechanically it features a dual set of heavy duty bearings and a well-encapsulated enclosure.

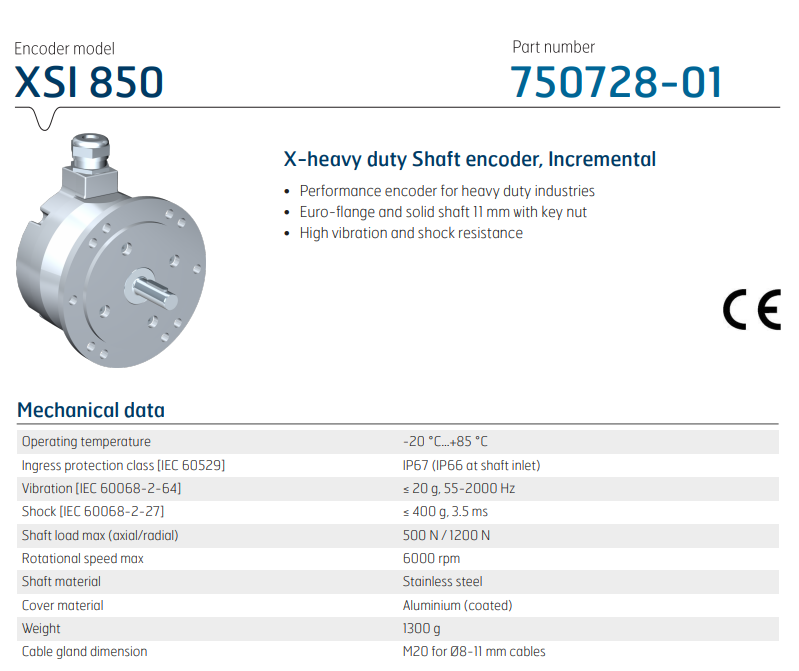

XSI 850

X-heavy duty Shaft encoder, Incremental.

• Performance encoder for heavy duty industries
• Euro-flange and solid shaft 11 mm with key nut
• High vibration and shock resistance

Product data
