Leine & Linde: Inductive Shaft Encoder 1178331-01 (ISA 608)
Leine & Linde: Inductive Shaft Encoder 1150912-01 (ISA 608)

Price : $1,486.00


Availability: 4-5 weeks lead time
Order #: 1178331-01
Qty:

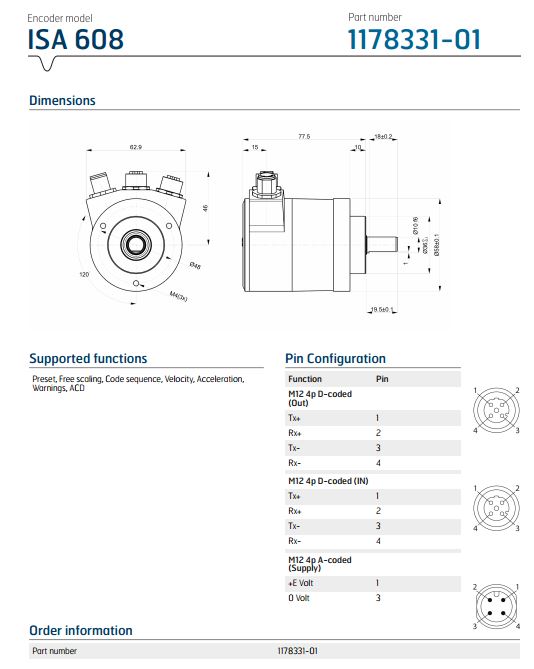

Description Ordering Information Specifications and Drawings

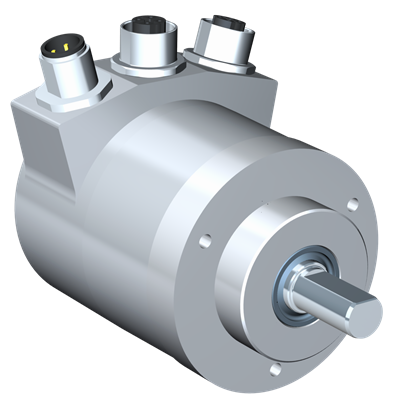

Leine & Linde: Inductive Shaft Encoder 1150912-01 (ISA 608)


ISA 608

Inductive Shaft encoder, Absolute

  • Single turn
  • Robust design
  • Shock and vibration protected
CE

Product data
TypeRSA
Model608 Multiturn
Shaft typeØ10 mmshaft with flat
Flange typeClamping flange (61sp-type)
Power supply9-36 Vdc
Output interfaceEthernet/IP
Absolute resolution25 bit (13 bit singleturn + 12 bit mulititurn)
Connection type3xM12 connectors
Connecting directionRadial
Code Key
60853727
