Leine & Linde: Premium Absolute Hollow Shaft Encoder 1096821-01 (PHE 903)
Leine & Linde: Premium Absolute Hollow Shaft Encoder 1096821-01 (PHE 903)

Price : $4,513.00


Availability: 3-5 weeks
Order #: 1096821-01
Qty:

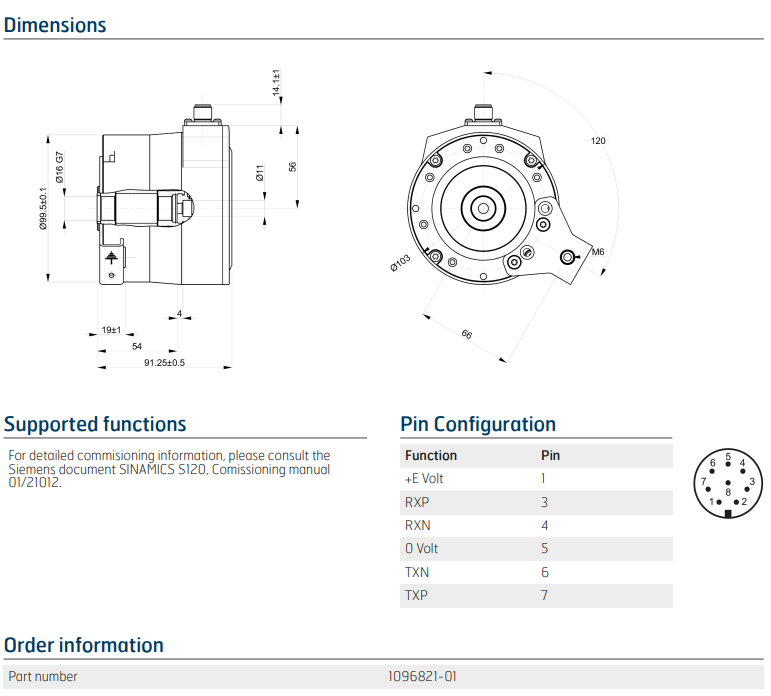

Description Specifications and Drawings

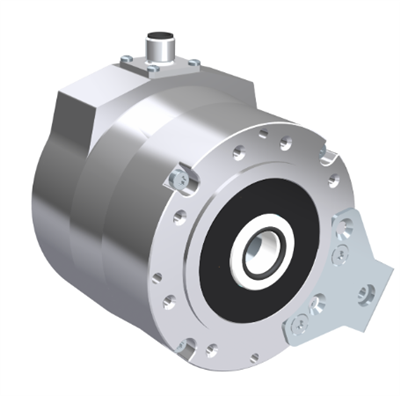

Leine & Linde: Premium Absolute Hollow Shaft Encoder 1096821-01 (PHE 903)


PHE 903

Part number: 1096821-01

Premium absolute hollow shaft encoder

  • 99,5mm diameter
  • Extremely robust design
  • Shock and vibration protected
  • Inductive scanning
CE

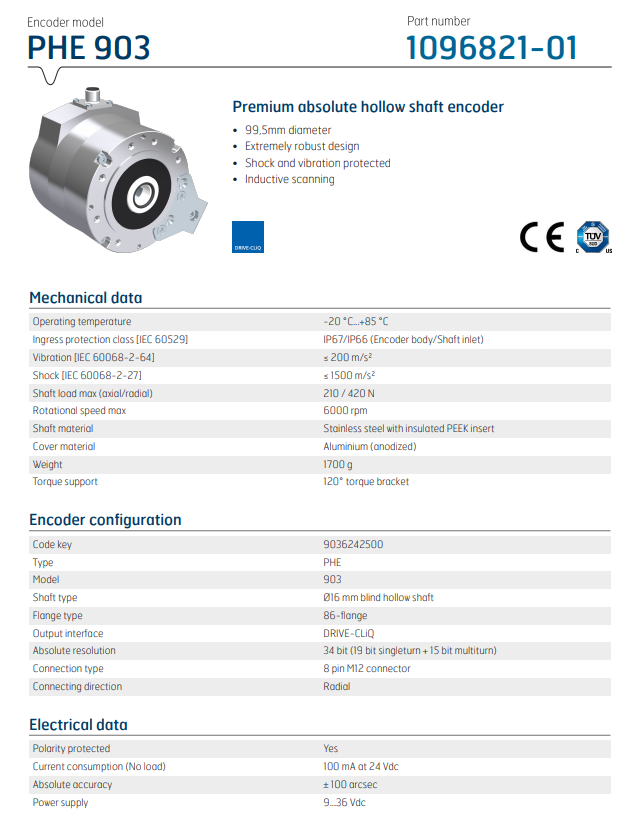

Product data

Code key9036242500
TypePHE
Model903
Shaft typeØ16 mm blind hollow shaft
Flange type86-flange
Output interfaceDRIVE-CLiQ
Absolute resolution34 bit (19 bit singleturn + 15 bit multiturn)
Connection type8 pin M12 connector
Connecting directionRadial
Torque support120° torque bracket
Power supply9...36 Vdc
