Leine & Linde: Ruggedized Shaft Encoder 1150912-01 (RSA 507)

Leine & Linde: Ruggedized Shaft Encoder 1150912-01 (RSA 507)

Price : $1,776.00

Availability: 4-5 weeks lead time
Order #: 1150912-01

Qty:

Description

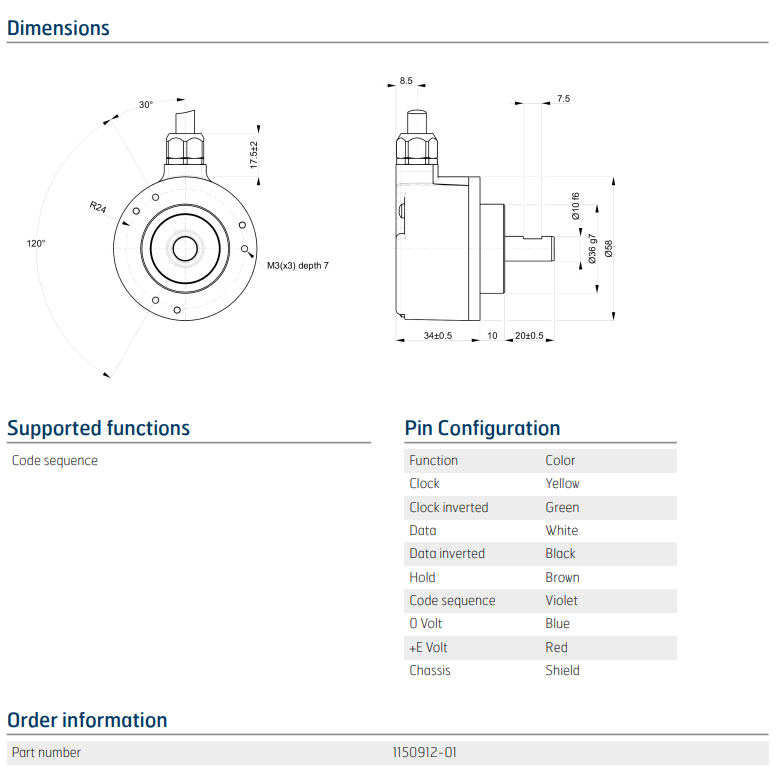

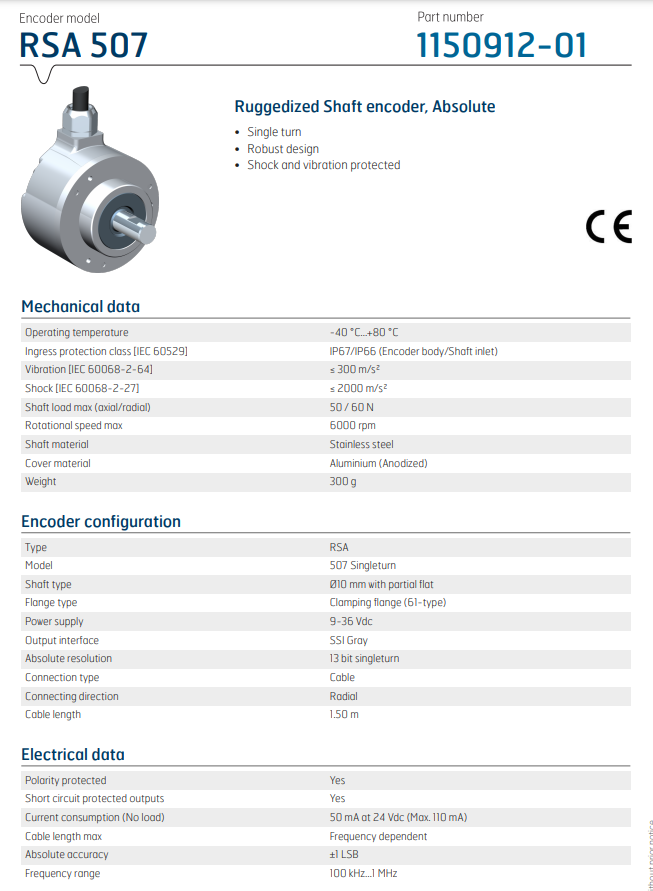

Specifications and Drawings

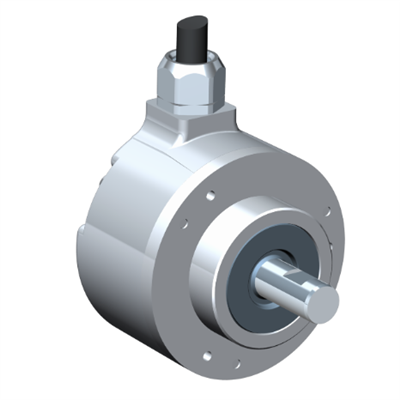

Leine & Linde: Ruggedized Shaft Encoder 1150912-01 (RSA 507)

RSA 507

Ruggedized Shaft encoder, Absolute

Single turn
Robust design
Shock and vibration protected

Product data

Type	RSA
Model	507 Singleturn
Shaft type	Ø10 mm with partial flat
Flange type	Clamping flange (61-type)
Power supply	9-36 Vdc
Output interface	SSI Gray
Absolute resolution	13 bit singleturn
Connection type	Cable
Connecting direction	Radial
Cable length	1.50 m
