Leine & Linde: Ruggedized Shaft Encoder 514582-01 (RSI 503)

Leine & Linde: Ruggedized Shaft Encoder 514582-01 (RSI 503)

Price : $496.00

Availability: 4-5 weeks lead time
Order #: 514582-01

Qty:

Description

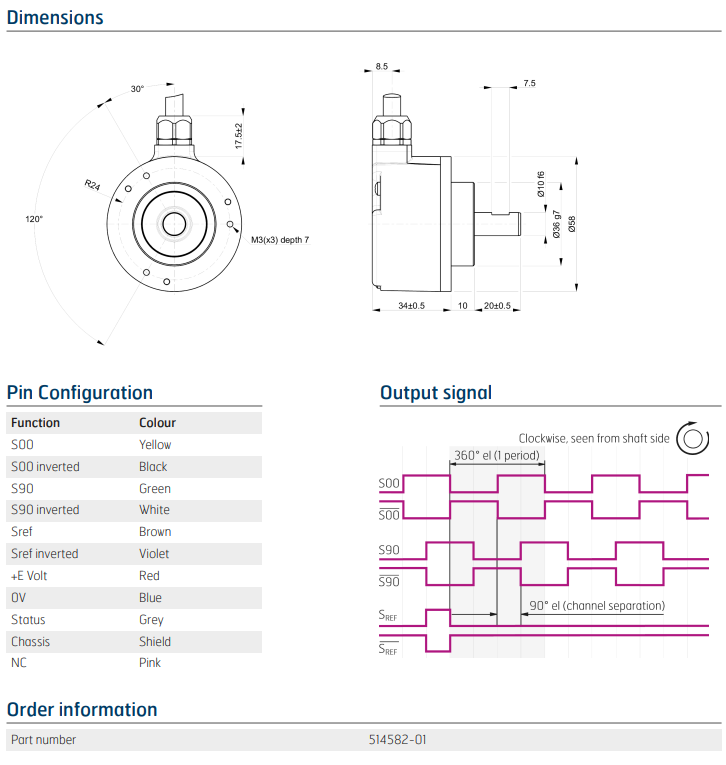

Specifications and Drawings

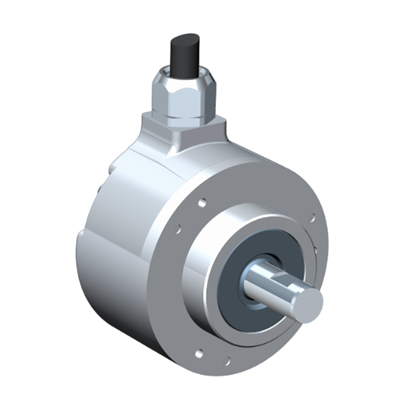

Leine & Linde: Ruggedized Shaft Encoder 514582-01 (RSI 503)

Ruggedized Shaft encoder, Incremental

Robust encoder with solid shaft
Short-circuited protected outputs
IP67 at housing, IP66 at shaft inlet

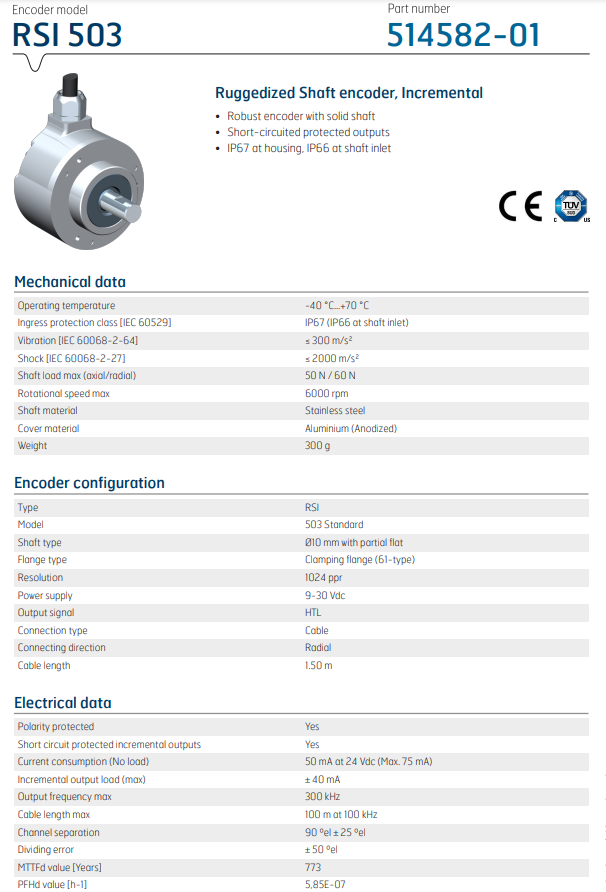

Product data

Type	RSI
Model	503 Standard
Shaft type	Ø10 mm with partial flat
Flange type	Clamping flange (61-type)
Resolution	1024 ppr
Power supply	9-30 Vdc
Output signal	HTL
Connection type	Cable
Connecting direction	Radial
Cable length	1.50 m
