MOONS': Stepper Motors MS08HY1R4050
MS08HY1R4050

833-9MOTION inquiry@e-motionsupply.com.
Price : $54.50


Order #: MS08HY1R4050
Qty:

Description Ordering Information Specifications and Drawings


MOONS': High Torque 2 Phase Stepper Motor (MS08HY Series)

A stepper motor is an Open-loop control element which converts electrical pulse signals into angular or linear displacements, By controlling the sequence, frequency and quantity of electrical pulses working on the motor coils, we can achieve the control for the velocity, rotation and rotation angle of a stepper motor. Matching with linear motion executive module or gear box device, it will satisfying more complicated and precise linear motion controlling demands.

Due to our professional technology and experience in designing, developing, manufacturing, and marketing of stepper motors, MOONS' supplies abundant stepper motor products series, with different phases and step angle for your selection. Each of the series has its unique advantages and characteristics, in order to meets the demands of different customers and different applications.

MOONS' Step Motor Advantage

Included are a number of improvements in performance and value:

  • Many refinements that increase torque by an average of 20%

  • Complete range of sizes: 8, 11, 14, 16, 17, 23, 24, 34, 42

  • Size 17 and larger 2 phase motors are UL recognized

  • 0.9 degree 2 phase motors, and 3 phase motors for extra smooth, quiet, performance

  • PowerPlus technology: for maximum efficiency and performance at all speeds

  • Lower inertia rotors provide faster acceleration

  • High voltage insulation for use with high voltage, high performance drives

  • Low loss stators have better high speed performance

  • Standard windings with high fill for more torque

  • Updated model numbering system includes a wider range of windings and standard options

Standard Hybrid Stepper Motors

Stepper motor is an electromechanical device that directly converts electrical impulses into mechanical motions. By controlling the sequence, frequency and quantity of electrical impulses applied to the motor coils, we can control the steering, speed and rotation angles of stepper motors. Without the help of closed-loop feedback control with position sensing system, using stepper motor and related supporting driver to composite a simple, low-cost open-loop control system, we can achieve precise position and speed control.

Specifications

MOONS' high torque 2 phase stepper motor MS08HY series is the minimum frame size currently on the market with mass production, the key advantages are reflected as following:

  • Smaller Installation Space: The frame size is only 20mm * 20mm, the installation space requirements are minimal.

  • Higher torque: Compared with the similar volume of permanent magnet type stepper motor, the torque of NEMA 8 hybrid stepping motor is greatly improved.

  • Higher precision: The NEMA 8 hybrid stepping motor compared with the same volume of permanent magnet type step stepper motor has a higher accuracy of control, and can be widely used in the fields such as portable medical equipment, industrial instruments, micro robot, video conference system, printer, valve control etc.

Electrical Specifications

  • Phase: 2

  • Steps/ Revolution: 200

  • Step Angle: 1.8°

  • Step Accuracy: ±5%

  • IP Rating: IP 40

  • Approvals: RoHS

  • Axial Load: 6N (1.3 Lbs.) Push / 25N (5.6 Lbs.) Pull

  • Radial Load: 18N (4 Lbs.) At End of Shaft

  • Operating Temp.: -20℃～50℃

  • Insulation Class: B, 130℃

  • Insulation Resistance: 100 MegOhms

Industry Applications

MOONS’ stepping motors are widely used to create the motion needed in many types of equipment. Examples include:

  • Office automation: printers, scanners, copy machines

  • Stage lighting: pointing, focus, color changes, spot size, special effects

  • Banking: check processing, credit card manufacturing, money scanners & counters

  • Medical: body scanning, blood analyzers, chemical analysis

  • Industrial: textile, packaging, robotics, conveyors, assembly, labeling

  • Telecommunication: phase shift, Tuning, mobile antenna positioning

  • Security: camera movement

  • Automotive: fuel metering, steering control

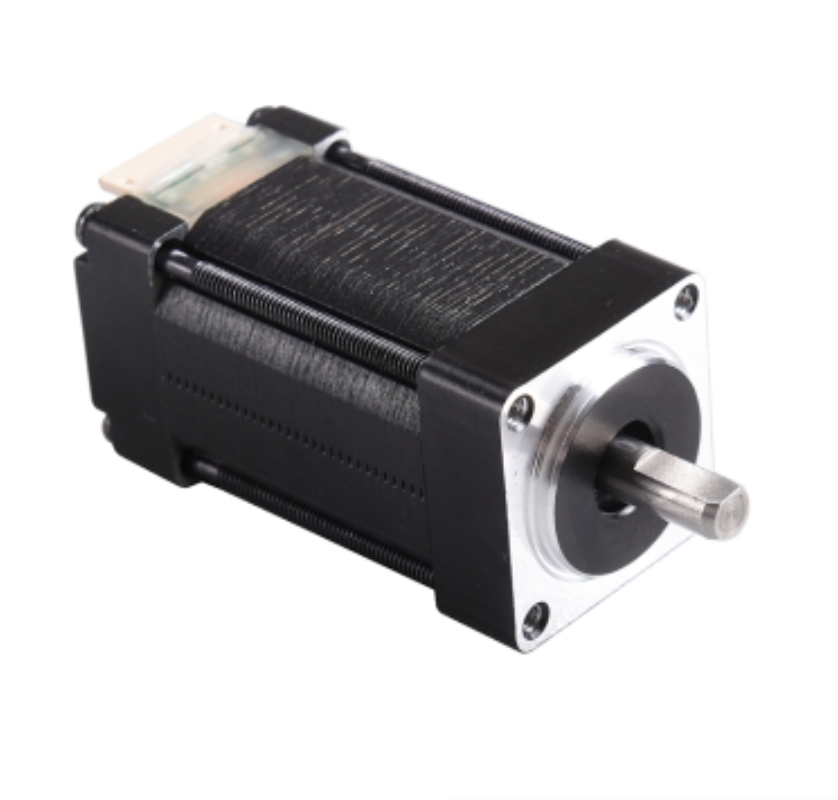

MS08HY1R4050


New generation NEMA8 stepper motor, Small size design, Higher torque, 2 phase, 1.8°

● holding torque up to 4.5 oz-in (32 mNm).
● Variety of mounting connection modes: facing forward, out the side of the motor,
or out the rear of the motor for flexibility and space savings
● Customization available include motor windings, various shafts, motor leads and connectors and encoder & gearhead options

Share your knowledge of this product. Be the first to write a review »
