MOONS': Stepper Motors MS23HA8L4360-E
MS23HA8L4360-E

833-9MOTION inquiry@e-motionsupply.com.
Price : $60.00


Order #: MS23HA8L4360-E
Qty:

Description Ordering Information Specifications and Drawings


MOONS': High Accuracy 2 Phase Hybrid Stepper Motors (MS23HA Series)

A stepper motor is an Open-loop control element which converts electrical pulse signals into angular or linear displacements, By controlling the sequence, frequency and quantity of electrical pulses working on the motor coils, we can achieve the control for the velocity, rotation and rotation angle of a stepper motor. Matching with linear motion executive module or gear box device, it will satisfying more complicated and precise linear motion controlling demands.

Due to our professional technology and experience in designing, developing, manufacturing, and marketing of stepper motors, MOONS' supplies abundant stepper motor products series, with different phases and step angle for your selection. Each of the series has its unique advantages and characteristics, in order to meets the demands of different customers and different applications.

MOONS' Step Motor Advantage

Included are a number of improvements in performance and value:

  • Many refinements that increase torque by an average of 20%

  • Complete range of sizes: 8, 11, 14, 16, 17, 23, 24, 34, 42

  • Size 17 and larger 2 phase motors are UL recognized

  • 0.9 degree 2 phase motors, and 3 phase motors for extra smooth, quiet, performance

  • PowerPlus technology: for maximum efficiency and performance at all speeds

  • Lower inertia rotors provide faster acceleration

  • High voltage insulation for use with high voltage, high performance drives

  • Low loss stators have better high speed performance

  • Standard windings with high fill for more torque

High Accuracy Hybrid Stepper Motors

Because the step angle is only half of the 1.8 °stepper motor, the 0.9 °stepper motor has a higher resolution and smoother operation. The driver of 0.9 °stepper motor and of 1.8 °stepper motor are exactly the same. An example of a good application for 0.9°motors are security cameras.0.9 °stepper motor can make the camera operating smoothly and accurately, which avoid the situations that causing the camera shaking that results in the image blur.

Specifications

  • Frame Size: NEMA 23

  • Step Angle: 0.9°

  • Holding Torque: 590 mN•m～2400 mN•m

  • Low vibration; Low noise

  • Higher motor efficiency

  • Optimal copper factor

  • Smooth precise movement & Running quiet

Electrical Specifications

  • Phase: 2

  • Steps/ Revolution: 400

  • Step Angle: 0.9°

  • Step Accuracy: ±5%

  • Insulation Class: B, 130℃

  • Insulation Resistance: 100 MegOhms

  • Axial Load: 40N (9 Lbs.) Push, 130N (30 Lbs.) Pull

  • Radial Load: 70N (15.5 Lbs.)At Flat Center

  • Operating Temp.: -20℃～50℃

  • IP Rating: IP 40

  • Approvals: UL Recognized File E465363, RoHS

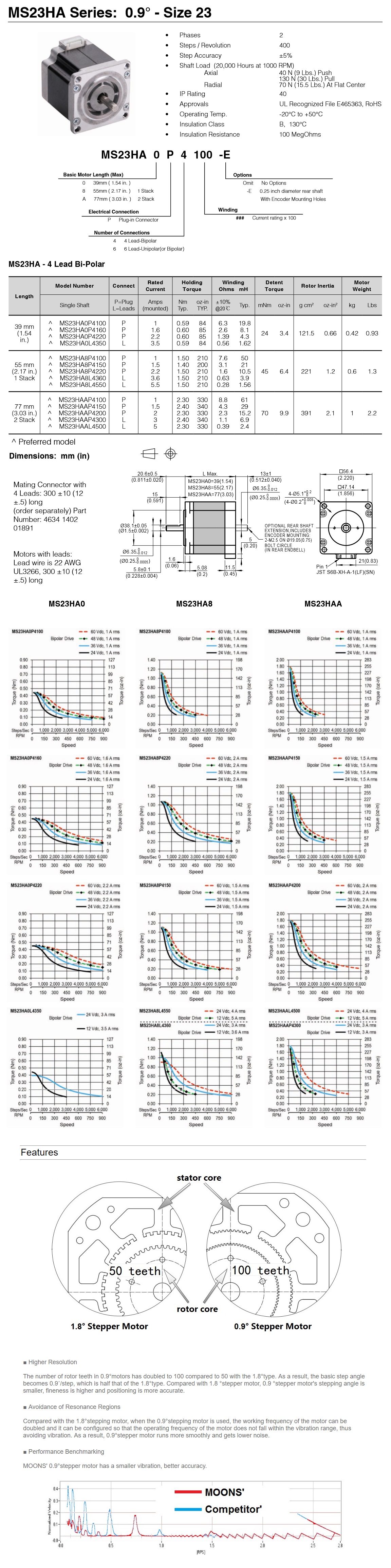

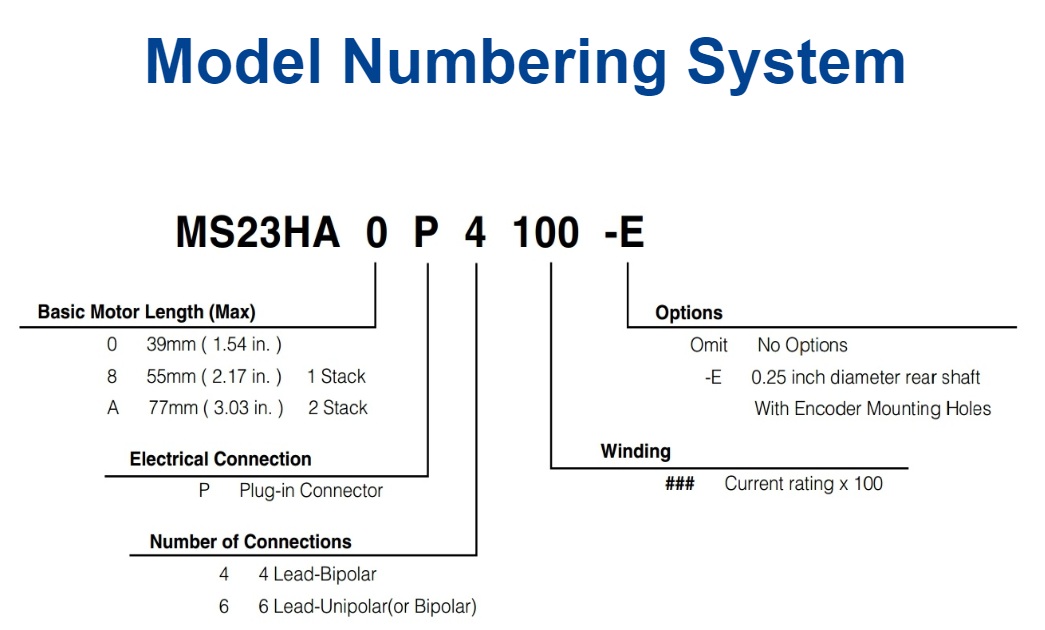

MS23HA8L4360-E


Stepper motor,Double shaft, High accuracy, High efficiency, High reliability, 2 phase, 0.9°, NEMA23

● High Resolution,Low Noise
● High Torque,Low Vibration
● High Efficiency
● Available options for Wire Harness, Flexible Coupling, Damper

Share your knowledge of this product. Be the first to write a review »
