Parker: Square Frame Three-Phase Induction Motors MS-23100SE10-1B-RO0K1-0000

The MS series family of motors has been specially engineered to be suitable for high dynamic performance when used with a flux vector type controller - AC890 and AC690+.
They permit operation in constant power at maximum speed up to 8000/min.

Features:
• Compact square frame format
• Same frame dimensions as DC motors of similar power rating
• IP23 or IP54 protection
• Auxiliary cooling fan allows low-speed, hightorque operation
• High overload capability
• Higher operating speeds
• 360 V (Contact your local sales office for details)
• PTC thermister (option)
• IP55 protection (option)
• Insulated bearings (option)
• Encoder or resolver feedback (option)

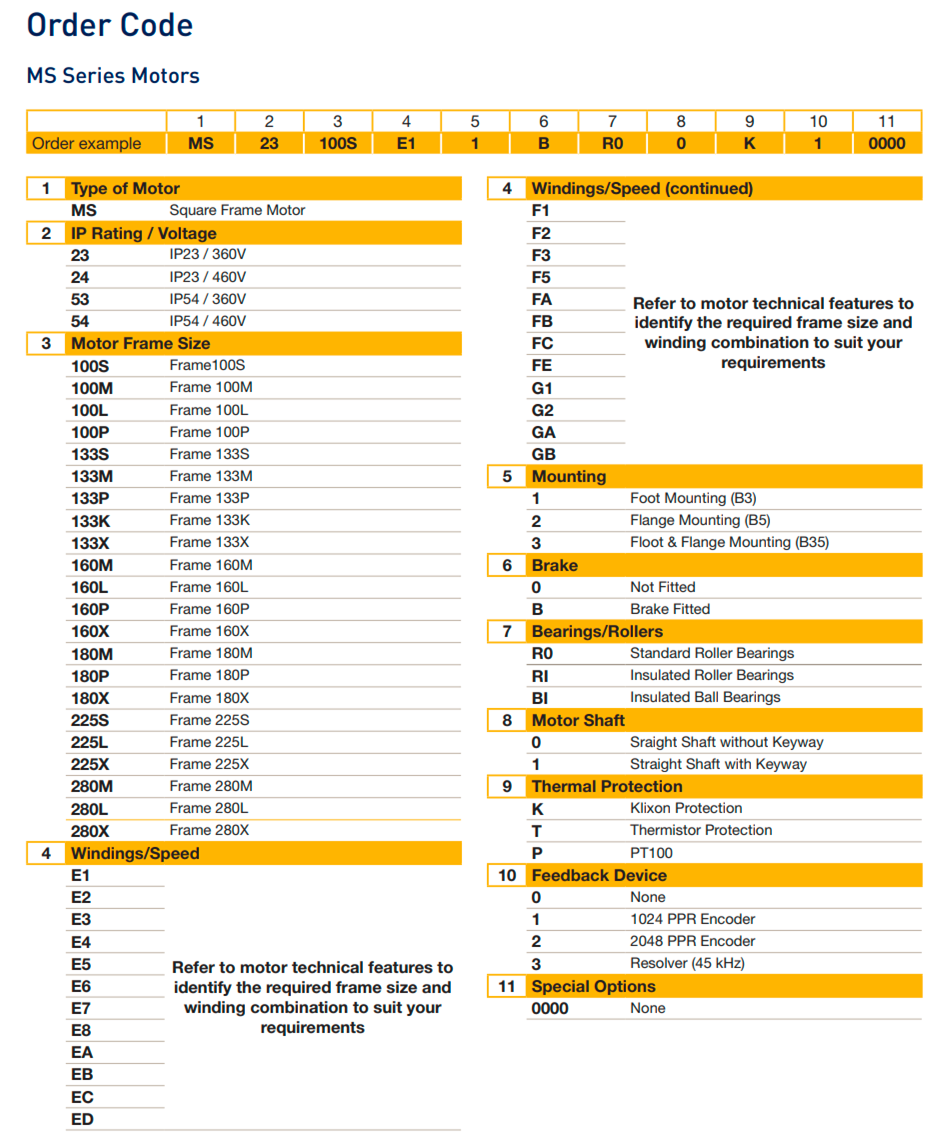

Motor Model No: MS-23100SE1-1B-RO0K1-0000, MS-23280ME2-10-BI0P1-0002, MS-24100SE1-1B-RO0K1-0000, MS-53100SE1-1B-RO0K1-0000, MS-54100SE1-1B-RO0K1-0000

Downloads:

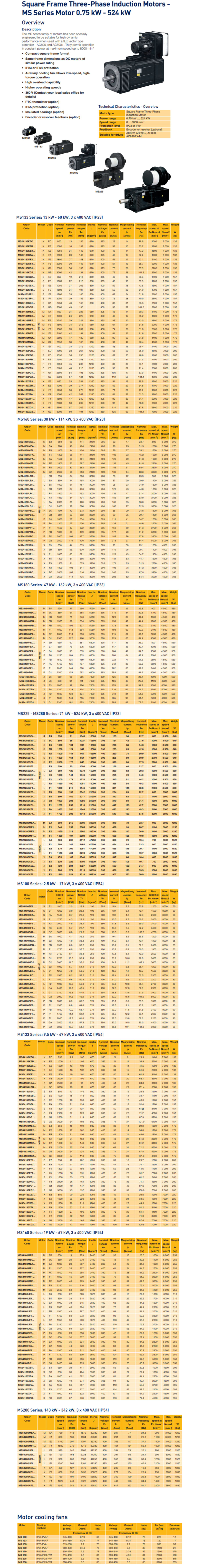

Square Frame Asynchronous Induction Motors - Catalogue
