Metronix: SmartServo Drives (BL 4000-C Series)

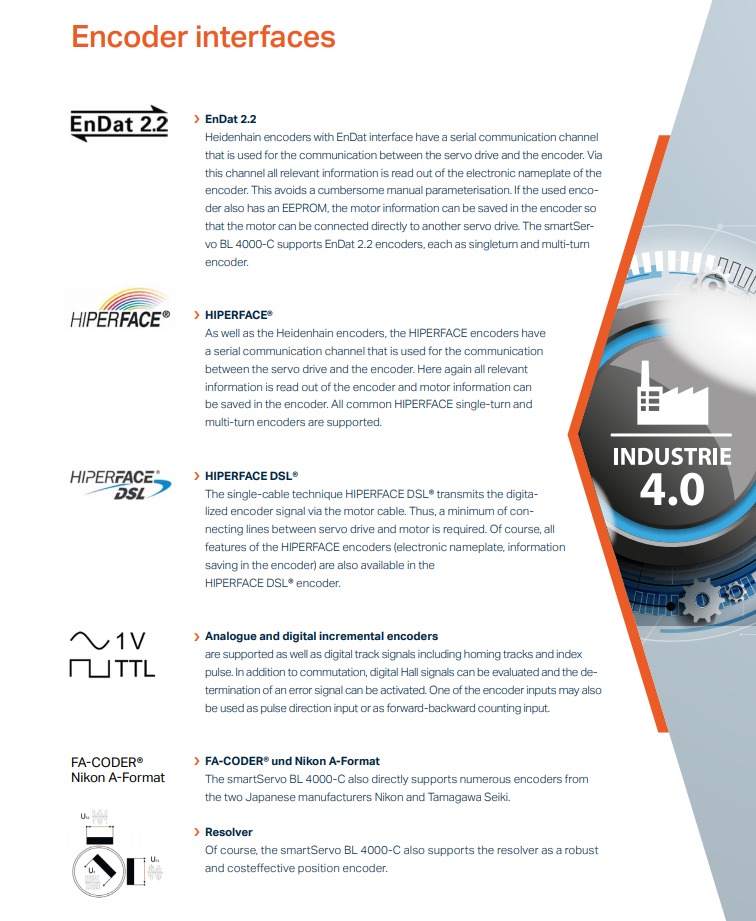

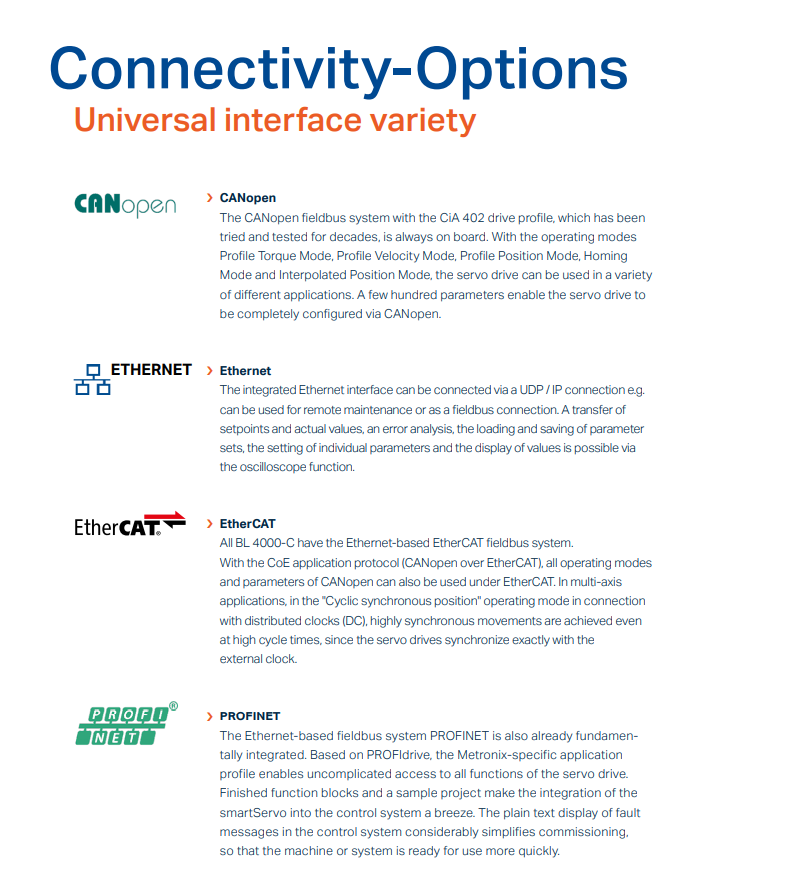

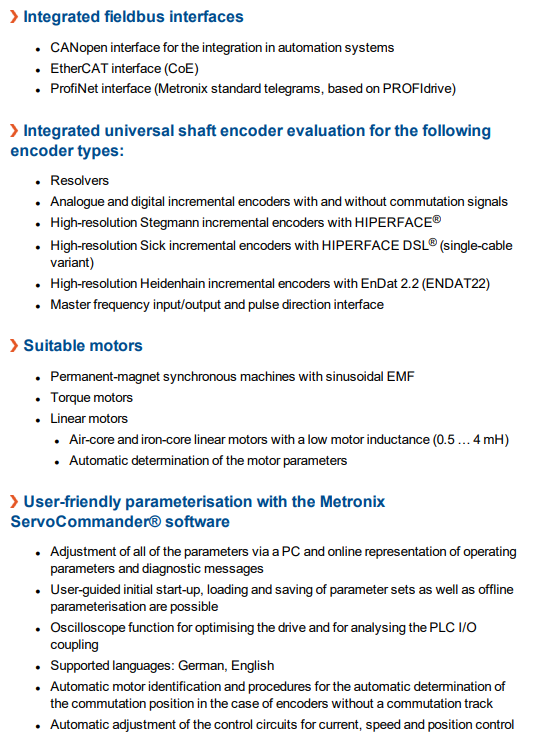

The servo drives of the smartServo BL 4000-C series are smart AC servo drives for controlling three-phase synchronous motors, torque motors and linear motors. The servo drives can be used in a universal manner, since they can be combined with a wide range of encoder systems and motors. Due to their extensive parameterisation options, they can be adapted to a variety of different applications. Servo drives of the BL 4000-C series are intended for use as devices installed in control cabinets. The connection to a superordinate control system can be realised by way of the integrated EtherCAT/Profinet or CAN interface. Parameter sets that have been created for the ARS 2000 FS series can be used for the BL 4000-C, BL 4000-M and BL 4000-D series and vice versa.
