Mitsubishi Power Supply Unit MDS-DH2-CV-300

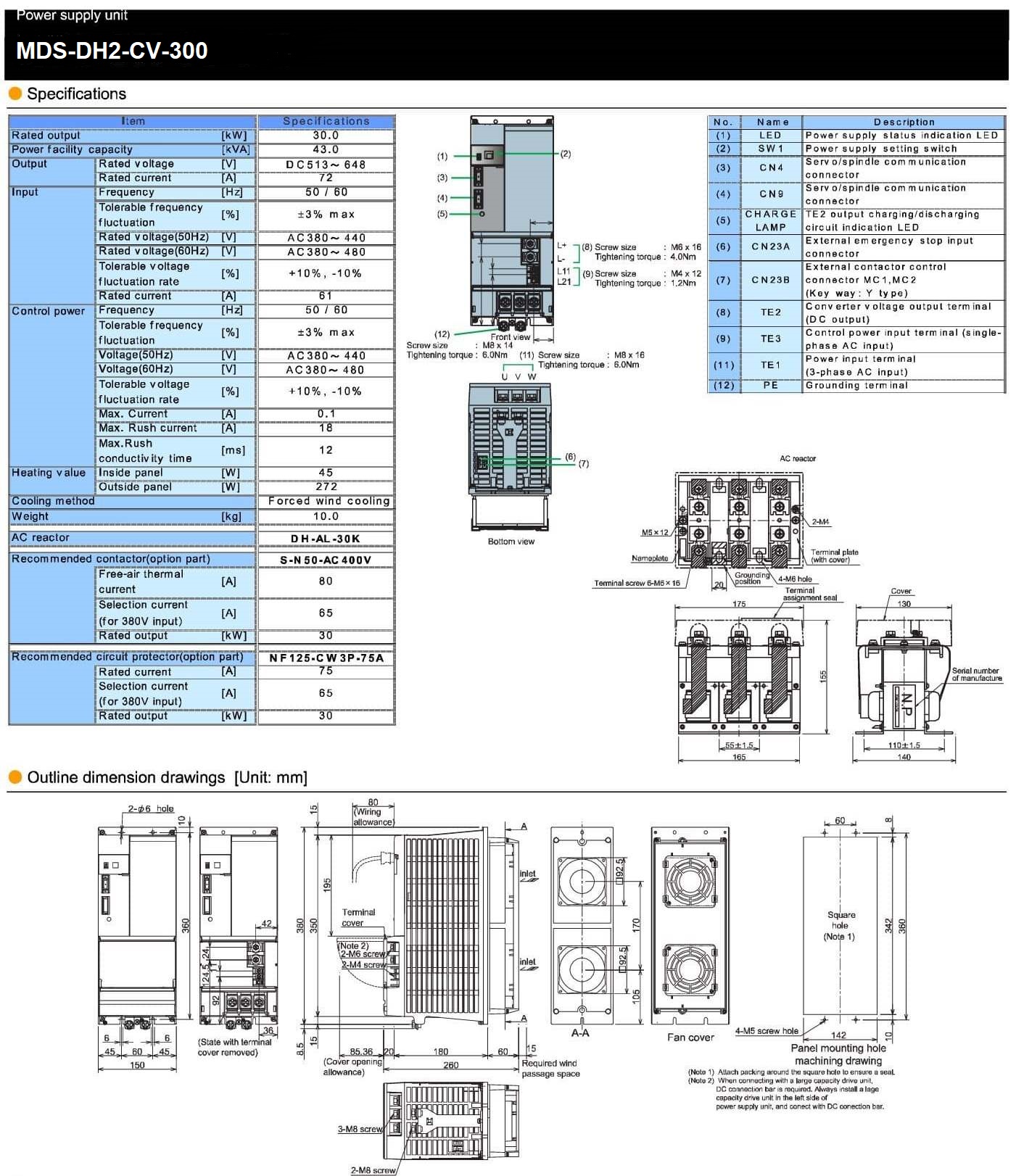

MITSUBISHI MDS-DH2-CV-300 (MDS-DH2-CV-300) This is a Power supply units that supplies the DC currents to the MITSUBISHI MDS Servo drives and MITSUBISHI Spindle drives for your CNC Machine-Tools. This MITSUBISHI MDS-DH2-CV-300 is mounted and must be placed next to the MDS Spindle drive unit as shown on the connecting drawinf from the MDS manual in order of drive capacity size.

The MDS-DH2-CV-300 Power supply unit operates a cooling fan on the rear side of the unit.

Buy online the MITSUBISHI Electric MDS-DH2-CV-300 400V series, it comes with a warranty to get your machine running up as soon as possible.

Always make sure than neither of the link bars are short circuited and connected.

Connect the largest-capacity spindle drive unit to the final axis of the NC communication bus in order to control the power supply unit. The spindle drive unit must be installed adjacent to the power supply unit. In the system with servo only, a servo drive unit for controlling unbalance axis must be installed in the same manner in the same way..
