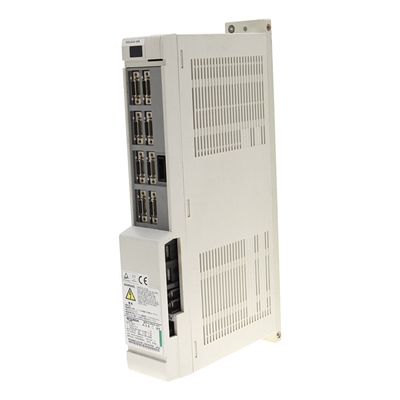

Mitsubishi Servo Drive Unit-MDS-A-V2-1005

MITSUBISHI MDS-A-V2-1005 It is a 2 axis servo drive CNC MELDAS MITSUBISHI MDS-A-V2-1005 type MDS-A mounted on machine-tools with CNC MELDAS and MITSUBISHI HA Series axis motor for a power of 1.0kW on 1 axis and 0.5kW on the other axis. MITSUBISHI MDS-A-V2-1005 ready to replace your 2 axis servo drive MDS-A-V2-1005 defective or in fault installed on your CNC production machine-tools. MITSUBISHI MDS-A-V2-1005 servo drive using the following characteristics Output : 6.8A / 3.4A (1.0kW / 0.5kW)

All our MITSUBISHI MDS-A-V2-1005 drives are sold and tested on suitable test rigs. This 2 axis servo drive CNC Meldas MITSUBISHI MDS-A-V2-1005 is accompanied with a functional warranty.

Outline:
The MDS-A Series is a drive system that corresponds to the MELDAS M500 Series NC that has been developed to totally connected the servo drive and spindle drive sections. The MDS-B Series is the successor to the MDS-A Series, and has been developed to satisfy European Safety Standards.
This Series has the following features:

The MDS-C1 Series is a drive system compatible with the NC system. This high-performance, compact series is compatible with the MDS-B Series (some changes have been made)
1.Compact and lightweight
The converters that were conventionally built in each servo and spindle drive have been integrated into one unit. The drive system volume, installation area and weight have been drastically reduced with the incorporation of high density mounted electronic parts IGBT-IPM (Intelligent Power Module) and the high performance heat radiating fin.
2.Standardization of dimensions
The outline has been standardized to the book end type, and by unifying the height and depth dimensions, installation in cabinets has been made easy. Furthermore, by matching the shape with the NC unit, an integrated appearance with the NC has been realize
3.Low heat generation
By incorporating the IPM and using power supply regeneration in the servo drive, the amount of heat generated has been greatly reduce
4.High speed and precision processing
A high speed CPU has been mounted on the control PCB, and a 100,000 pulse/rotation sub micron detector has been incorporated as a standard to allow faster and more precise interpolation. By incorporating the stable position loop control (SHG control) method, having an outstanding response, the positioning time and tracking have been improved and the machine vibration during acceleration/deceleration has been reduced. The cutting performance and cutting precision during position control have been improved by using the high speed CPU also for the spindle drive.
5.High speed spindle orientation
Smooth operations and minimum orientation times have been realized by using the high speed orientation method while allows direct orientation from the high speed during the spindle drive.
