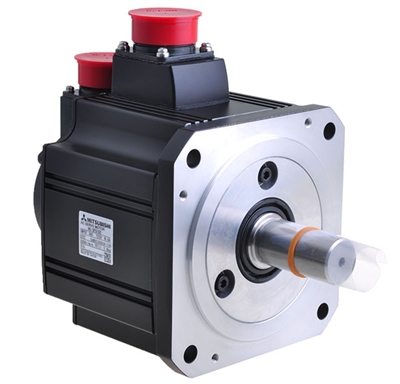

Mitsubishi Servo Motor- HC-SFS352K

Features:

Medium inertia from low speed to high speed three modes for selection, suitable for different applications.
High resolution encoder 131072p/rev (17 bit).

The encoder with high resolution ensures excellent performance and stability at low speed.

Application examples:

Transmission machinery, robots, X-Y working platform.

All motor dimensions are the same as before and all are compatible with the wiring.

Motor series: medium inertia, medium power.

Rated output power: 3.5kw.

Rated speed: 2000r/min

Whether to take the brake: No.

Shaft end: Standard (straight).

Protection level: IP65 (IP67).
