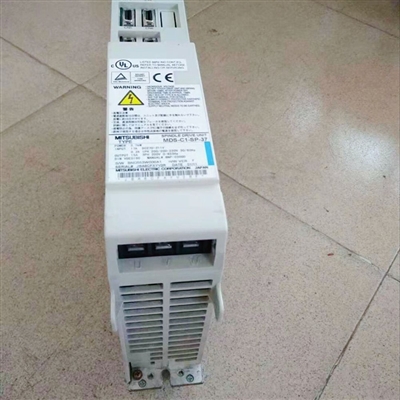

MITSUBISHI MDS-C1-SP-37 CNC Spindle drive unit.

MITSUBISHI Electric MDS-C1-SP-37 (MDSC1SP37) MITSUBISHI Electric spindle drive unit that permits a CNC Machine-tools drive a MITSUBISHI AC Spindle motor with a max output capacity of 3.7kW (15A rated output from the spindle drive unit).

MITSUBISHI Electric MDS-C1-SP-37 Rated input :

DC270-311V : 17A

AC200-230V : 0.2A

MITSUBISHI Electric MDS-C1-SP-37 Rated output : 3AC - 15A

In systems which use a MITSUBISHI Electric MDS-C1-SP-37 Spindle drive unit, the spindle drive unit must be placed next to the power supply as shown in the connection manuals. Each units generates some heat, so leave a space on the top and bottom when installing other equipment or parts. The heating value for the spindle drive unit for during continuous rated output (190W).
