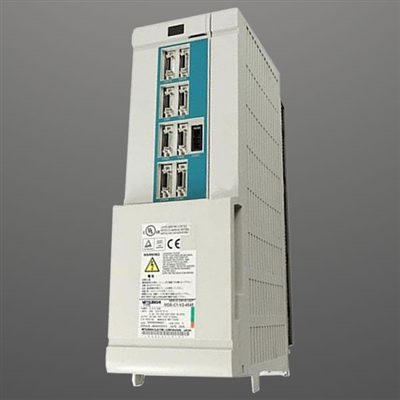

MITSUBISHI MDS-C1-SP-75 CNC Spindle drive unit.

Features of the MDS-C1-SP spindle system.

(1) The converter that was conventionally built into the spindle controller has been installed in the unit (MDS-C1-SP), and can be used commonly with the other axis drive units. This allows great reductions in size and weight.

(2) The speed response has been improved by using a high-speed CPU, and the cutting performance and cutting precision during positioning control has been improved.

(3) A high-speed orientation method that allows direct orientation from high-speeds has been incorporated allowing smooth operations and minimum orientation times.

(4) All spindle parameters can be set from the NC CRT screen thus enhancing the operability

MITSUBISHI Electric MDS-C1-SP-75 (MDSC1SP75)This is a MITSUBISHI Electric spindle drive unit that permits a CNC Machine-tools drive a MITSUBISHI AC Spindle motor.

In systems which use a MITSUBISHI Electric MDS-C1-SP-75 Spindle drive unit, the spindle drive unit must be placed next to the power supply as shown in the connection manuals. Each units generates some heat, so leave a space on the top and bottom when installing other equipment or parts. The heating value for the spindle drive unit for during continuous rated output The power supply unit capacity is determined by the motor output, and the spindle drive unit capacity is determined by the motor characteristics
