MITSUBISHI MDS-C1-SPA-110R CNC Spindle drive unit.

The MDS-C1-SPA Series units are targeted for the Low-voltage Directives

MITSUBISHI MDS-C1-SPA-110R (MDSC1SPA110R) This is a spindle drive unit MITSUBISHI MDS-C1-SPA-110R type MDS that permits a CNC Machine-tools to drive a MITSUBISHI AC Spindle motor with a max output capacity of 11kW (37A rated output from the spindle drive unit). The characteristics of this spindle drive unit MITSUBISHI MELDAS MDS-C1-SPA-110R are the following:

Input: 41A DC270-311V

0.2A 1PH 200/200-230V 50/60Hz

Output: 37A 3PH 200V 0-833Hz

Power: 11kW

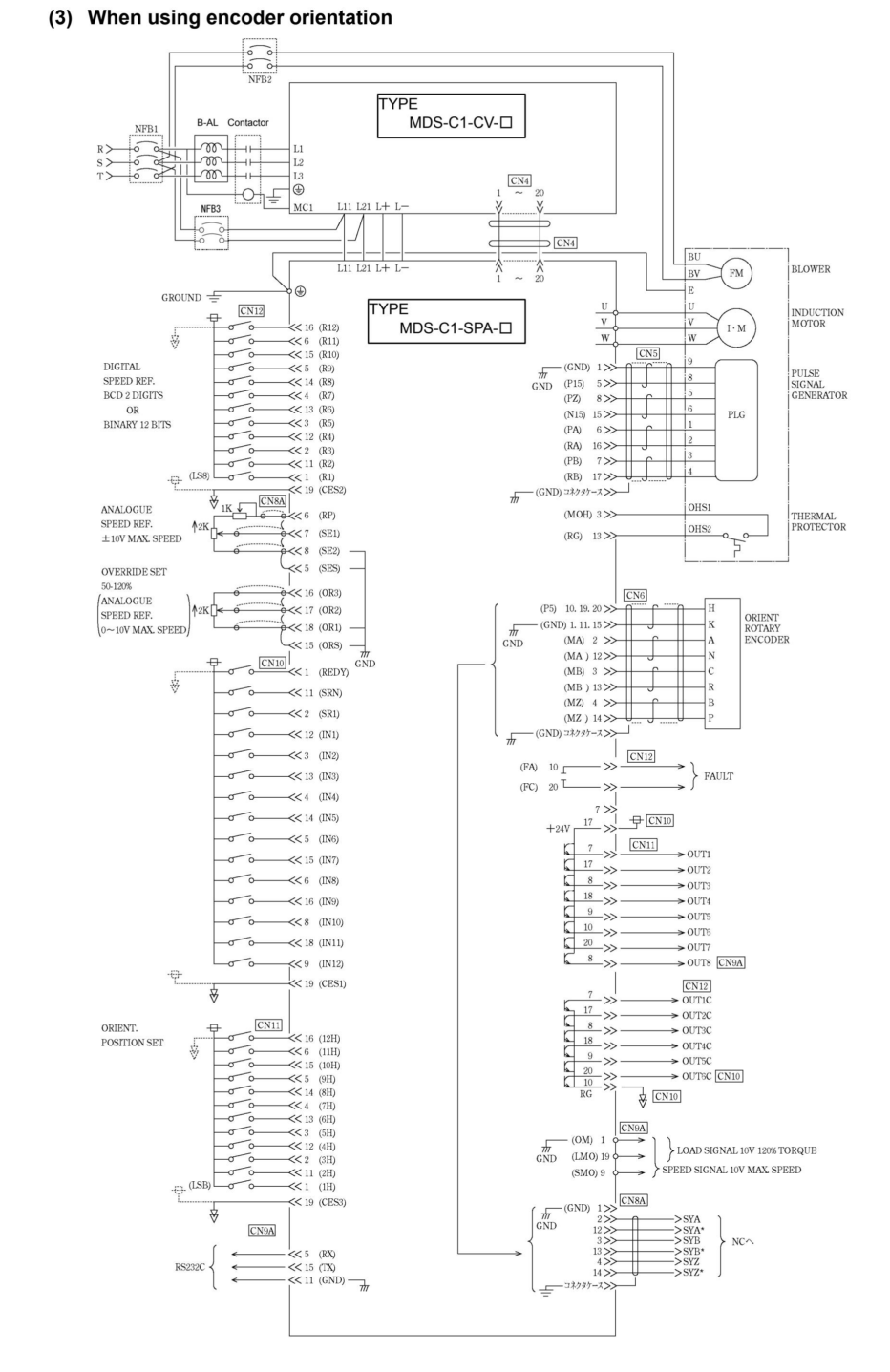

In systems which use a MITSUBISHI Electric MDS-C1-SPA-110R Spindle drive unit, the spindle drive unit must be placed next to the power supply MDS-C1-CV-* as shown in the connection manuals. Each units generates some heat, so leave a space on the top and bottom when installing other equipment or parts. The heating value for the spindle drive unit for during continuous rated output (190W). The power supply unit capacity is determined by the motor output, and the spindle drive unit capacity is determined by the motor characteristics
