Nanomotion: HHR Series Motors (HR4 Nanomotion Motor) HR4-1-S-3

Price : $885.00

Availability: Usually Ships in 4 to 6 Weeks
Order #: HR4-1-S-3

Qty:

Description

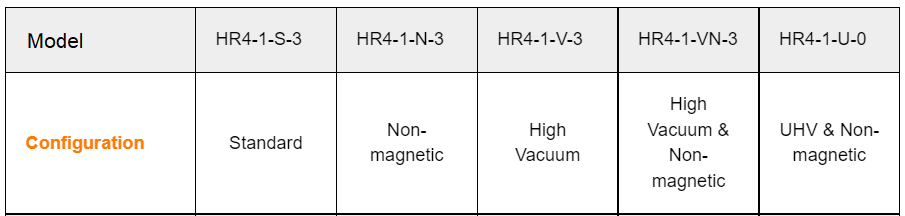

Ordering Information

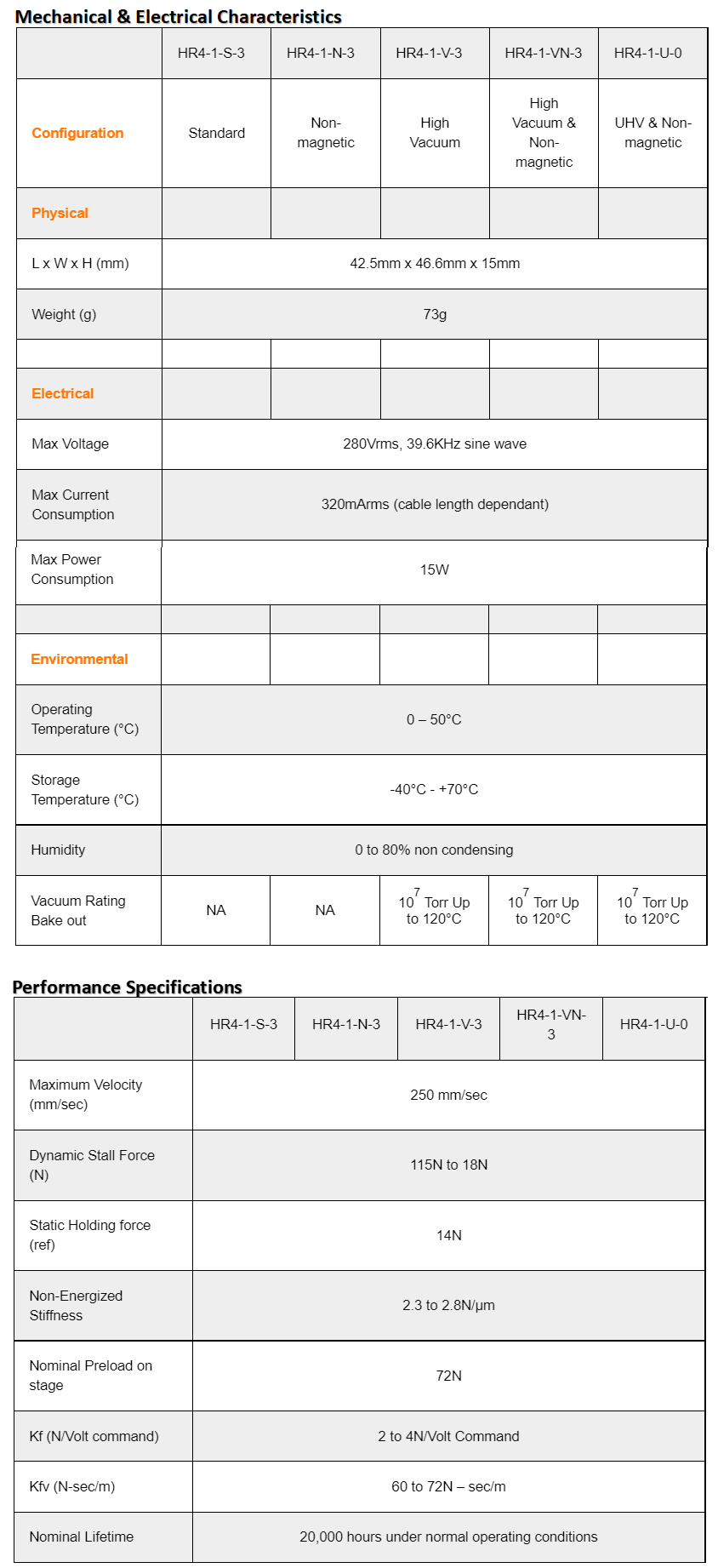

Specifications and Drawings

Nanomotion: HHR Series Motors (HR4 Nanomotion Motor) HR4-1-S-3

The HR4 motors are high precision ceramic motors. Designed and manufactured by Nanomotion, Ltd., the HR1 motors, combine unlimited stroke with high resolution in compact dimensions. Among its applications are microscopy, precision motion, robotics, etc. The motors provide a linear response to the input voltage. The operation of the motor and driver resembles that of a DC-motor driven by a voltage amplifier. The HR4-V and HR1-4 motors are constructed of materials that have been selected and designed for high vacuum compatibility.677

HR4-1-S-3 Motor Features:

Maximum Velocity (mm/sec) - 250 mm/sec
Dynamic Stall Force (N) - 115N to 18N
Static Holding force (ref) - 14N
Non-Energized Stiffness - 2.3 to 2.8N/µm
Nominal Preload on stage - 72N
Kf (N/Volt command) - 2 to 4N/Volt Command
Kfv (N-sec/m) - 60 to 72N – sec/m

Downloads:
HR Motor Manual
HR4 Step File

Options

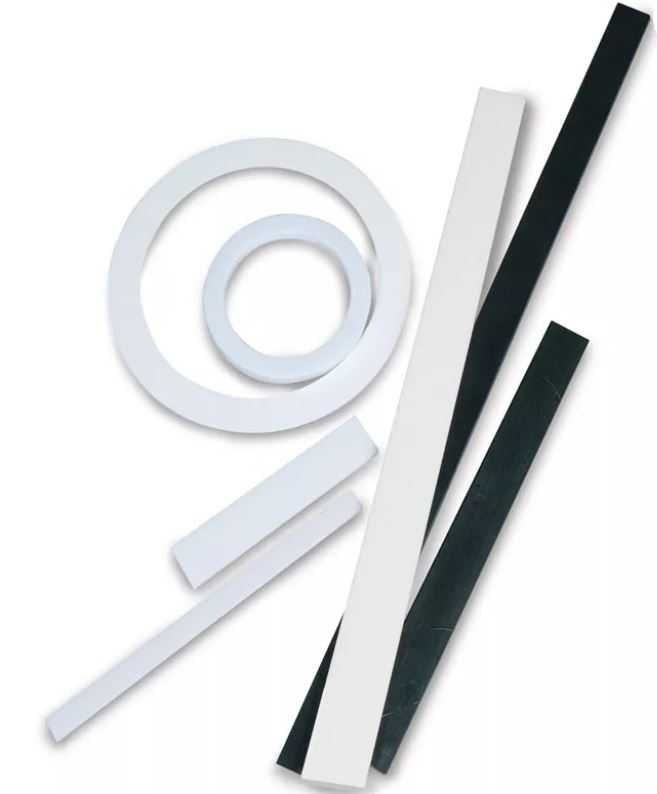

E-MotionSupply can provide ceramic drive strips, rings, and CCS Ceramic Coated Steel for all our motor types. Standard strips, rings, and disks are available in a wide variety of sizes and shapes. We can also provide custom drive strips/rings for different application requirements. The mating drive surface is critical to the motor’s performance. All specifications are based on using Nanomotion’s drive surfaces. Most of our standard drive strips are provided with vacuum compatible, double sided tape for easy mounting. The motor user manual defines the proper mounting procedure.

Customized Design and Manufacture

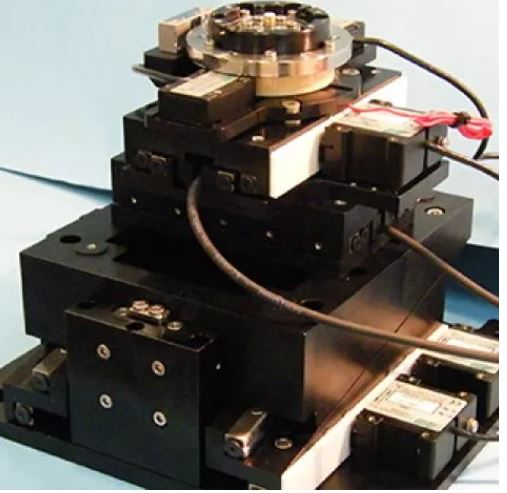

E-MotionSupply can help customer design and produce linear stage and rotary stages for different applications.
Please contact our application engineers.
