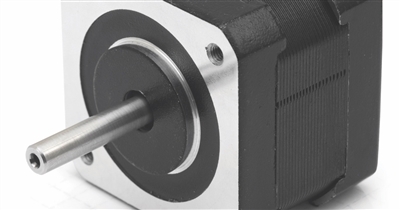

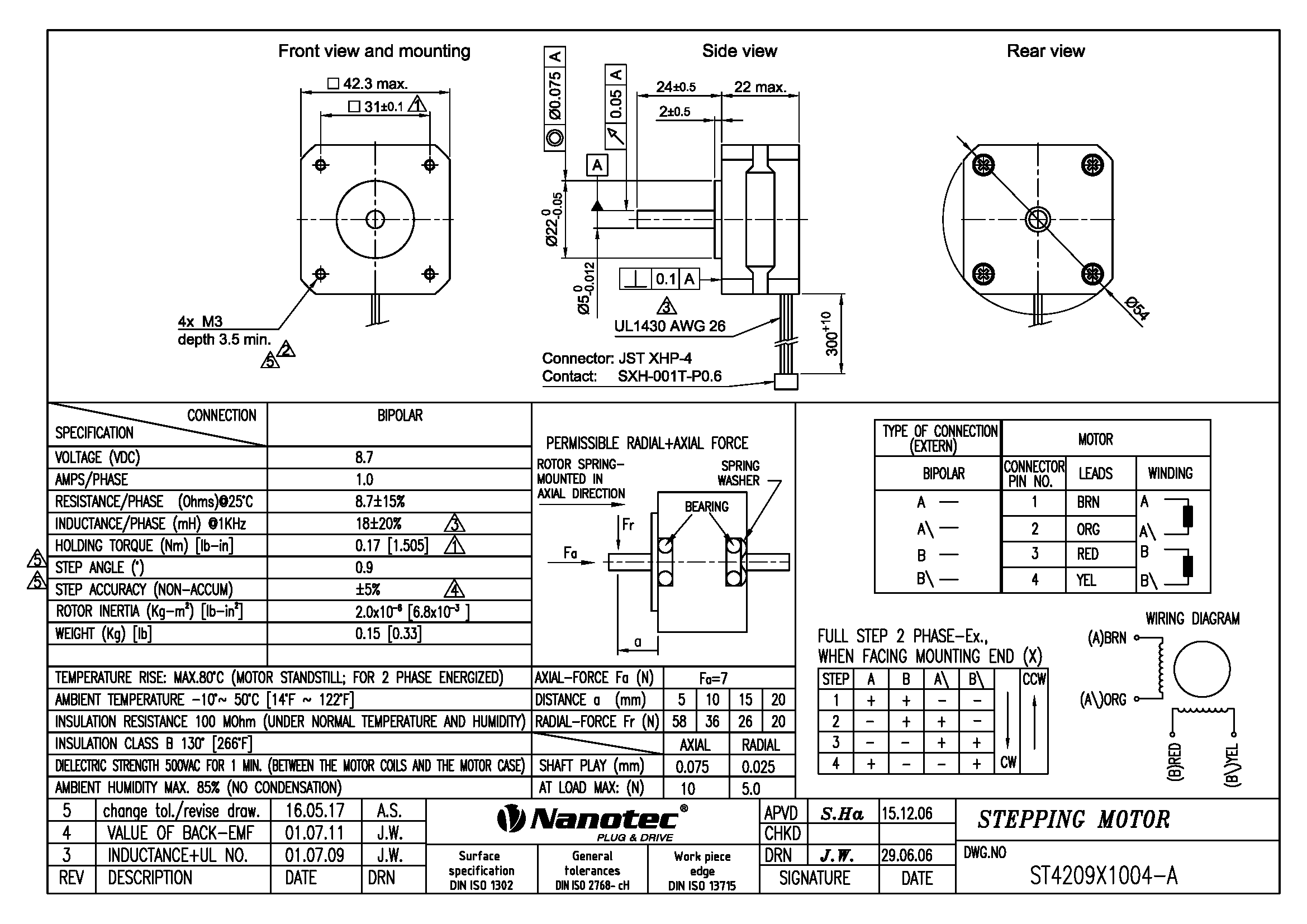

Nanotec: 2 Phase Stepper Motor ST4209X1004-A
Nanotec: 2 Phase Stepper Motor ST4209X1004-A


Price : $125.00

Quantity in Stock:4

Availability: Usually Ships in 24 Hours
Order #: ST4209X1004-A
Qty:

Description Ordering Information Specifications and Drawings


Nanotec Electronic GmbH & Co KG

HYBRID STEPPER MOTOR – NEMA 17

High-torque stepper motor in size NEMA 17 (42 mm) with 0.9° step angle (full step). Ideal for applications in which a higher resolution is to be achieved in openloop mode without encoder. Available in various lengths and versions.

  • Size1.65 in
  • NEMA17
  • Holding Torque24.07 oz-in - 62.31 oz-in
  • Current per Winding0.42 A - 1.68 A
  • Length "A"0.866 in - 1.87 in

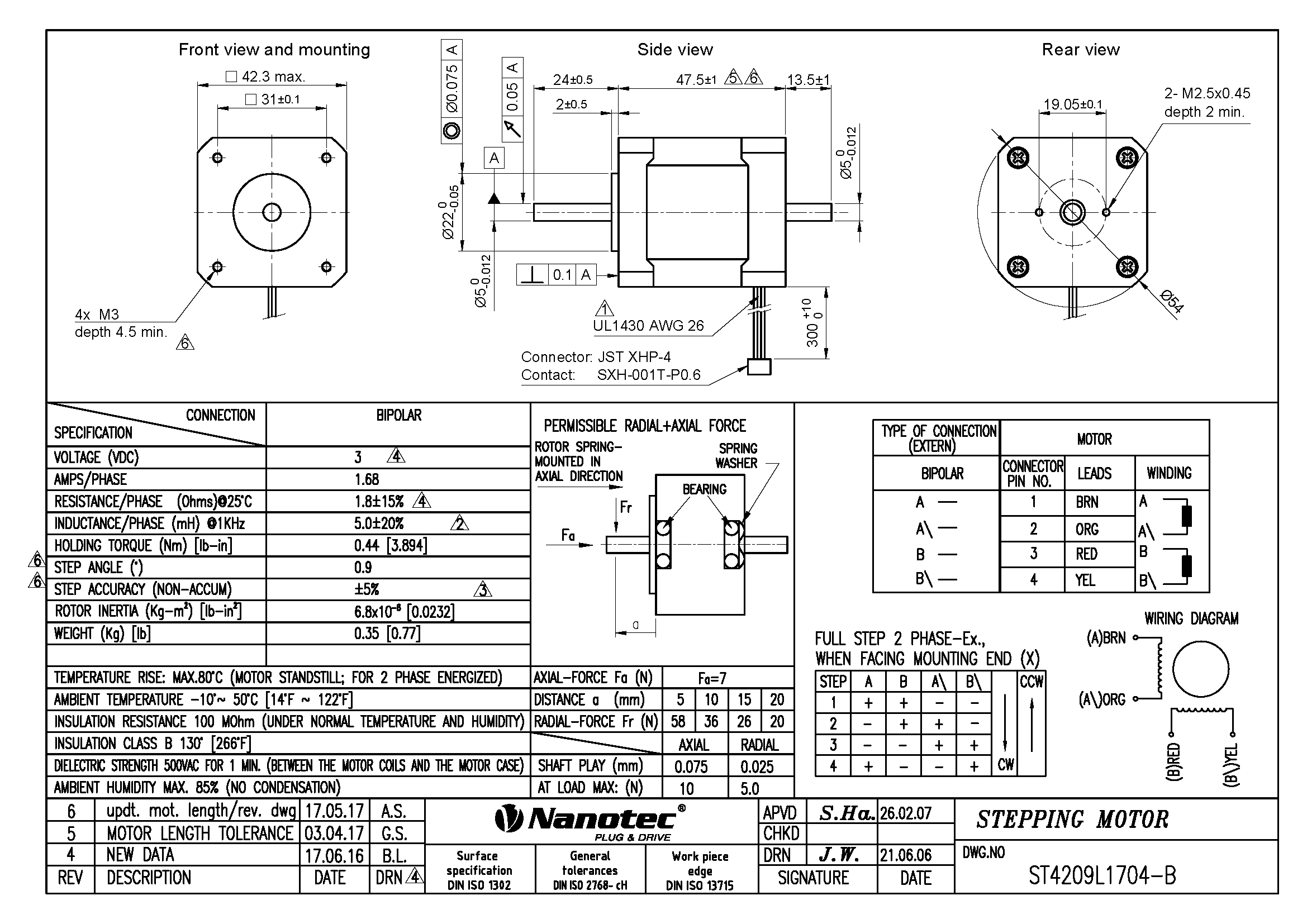

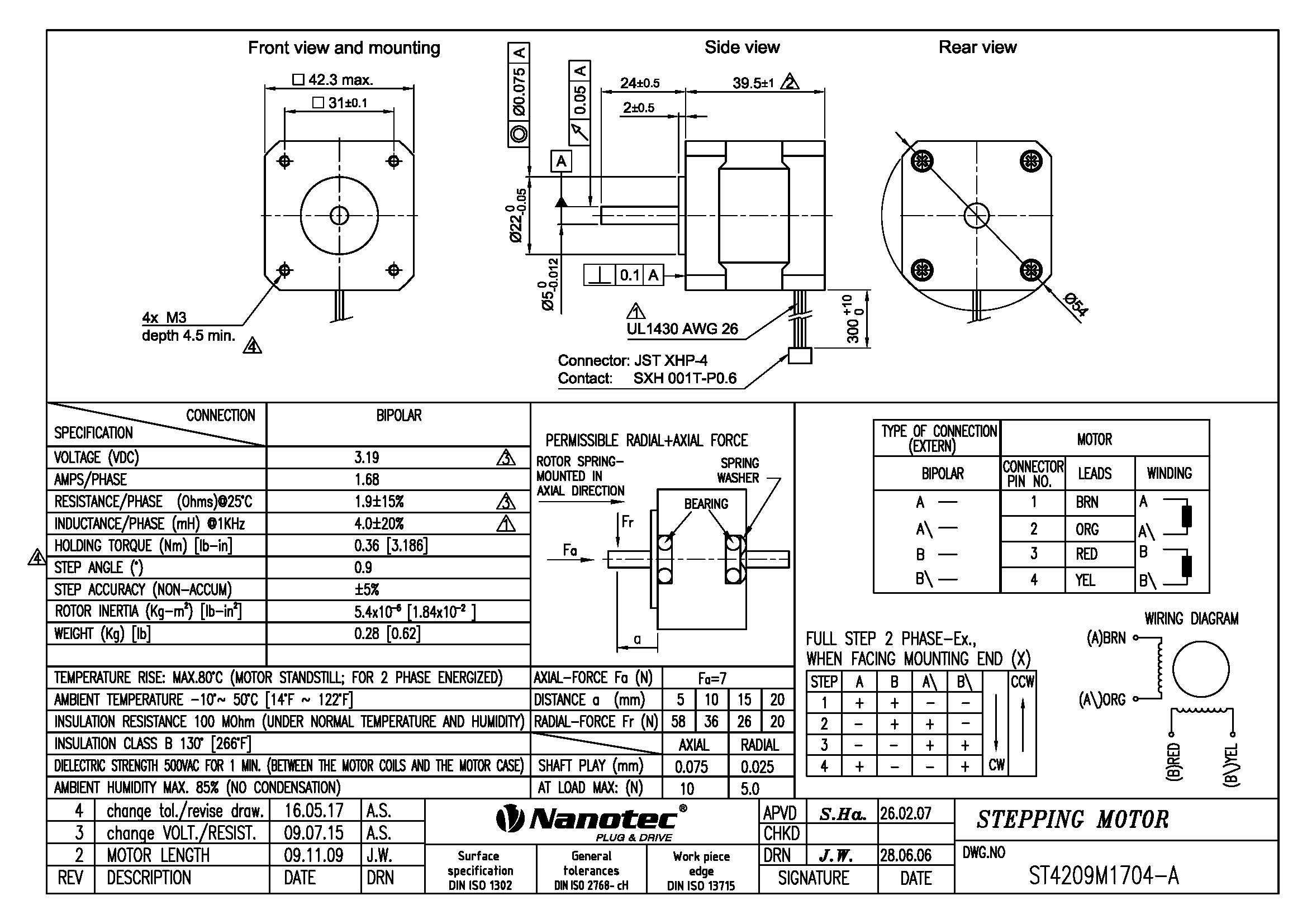

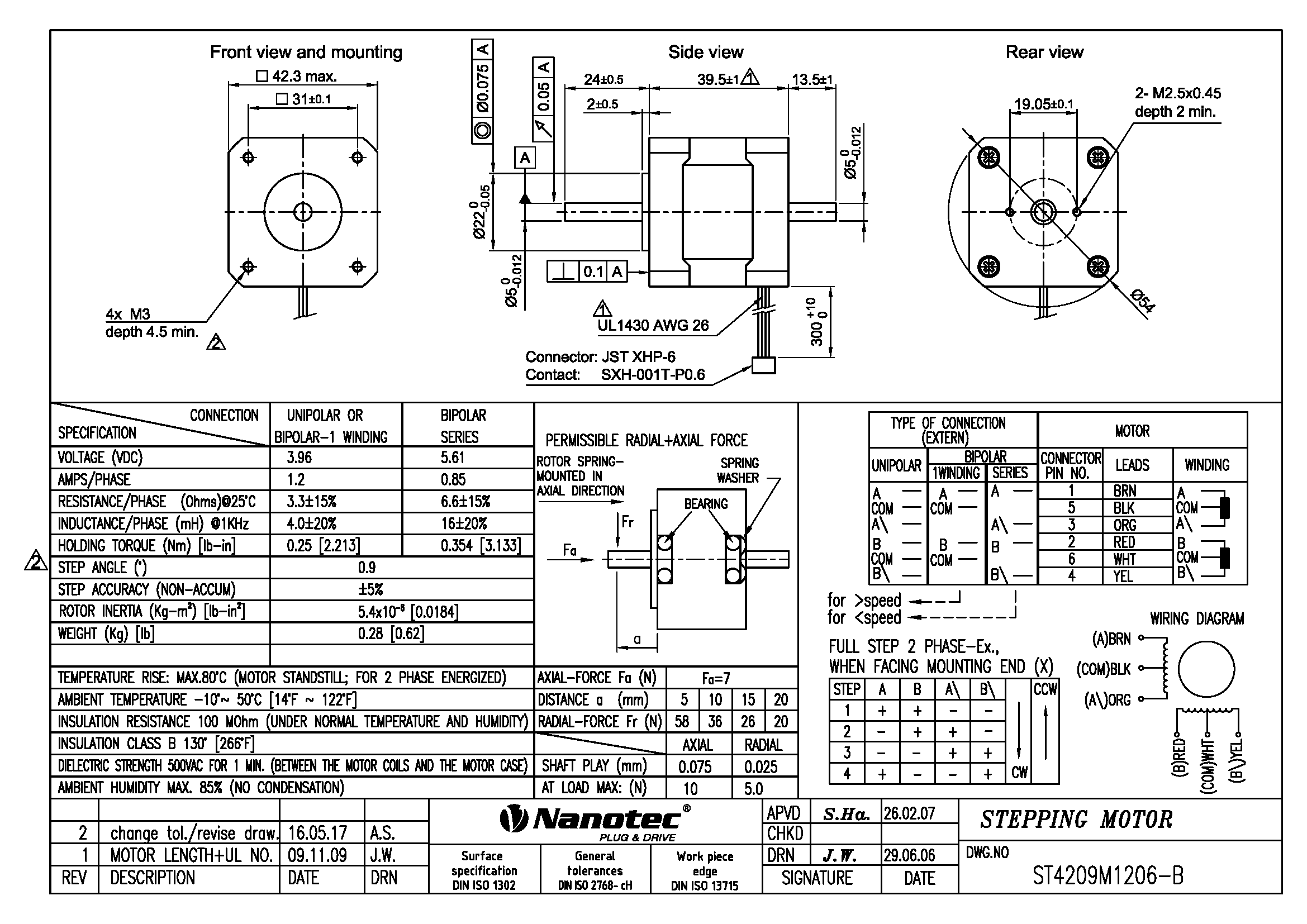

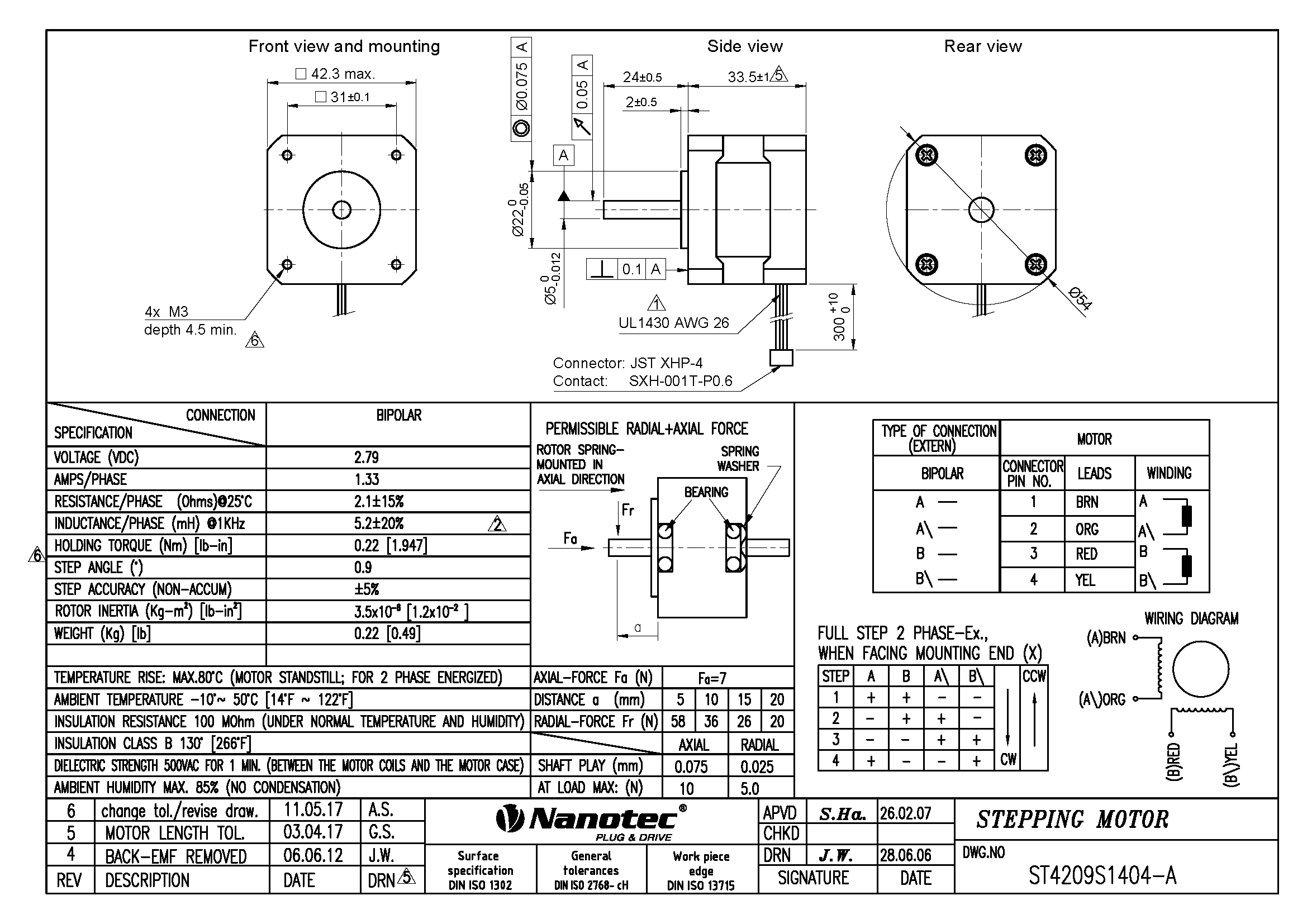

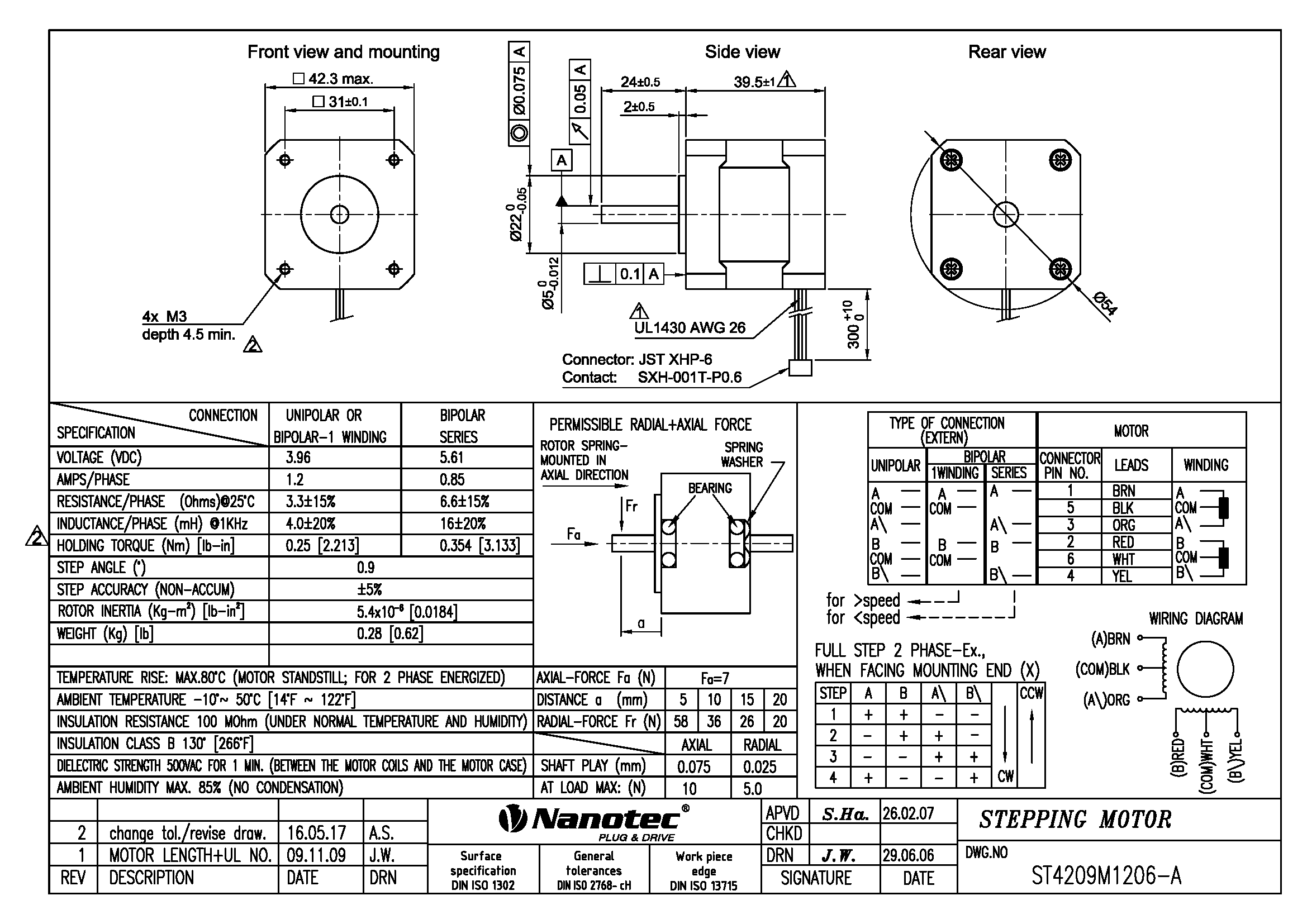

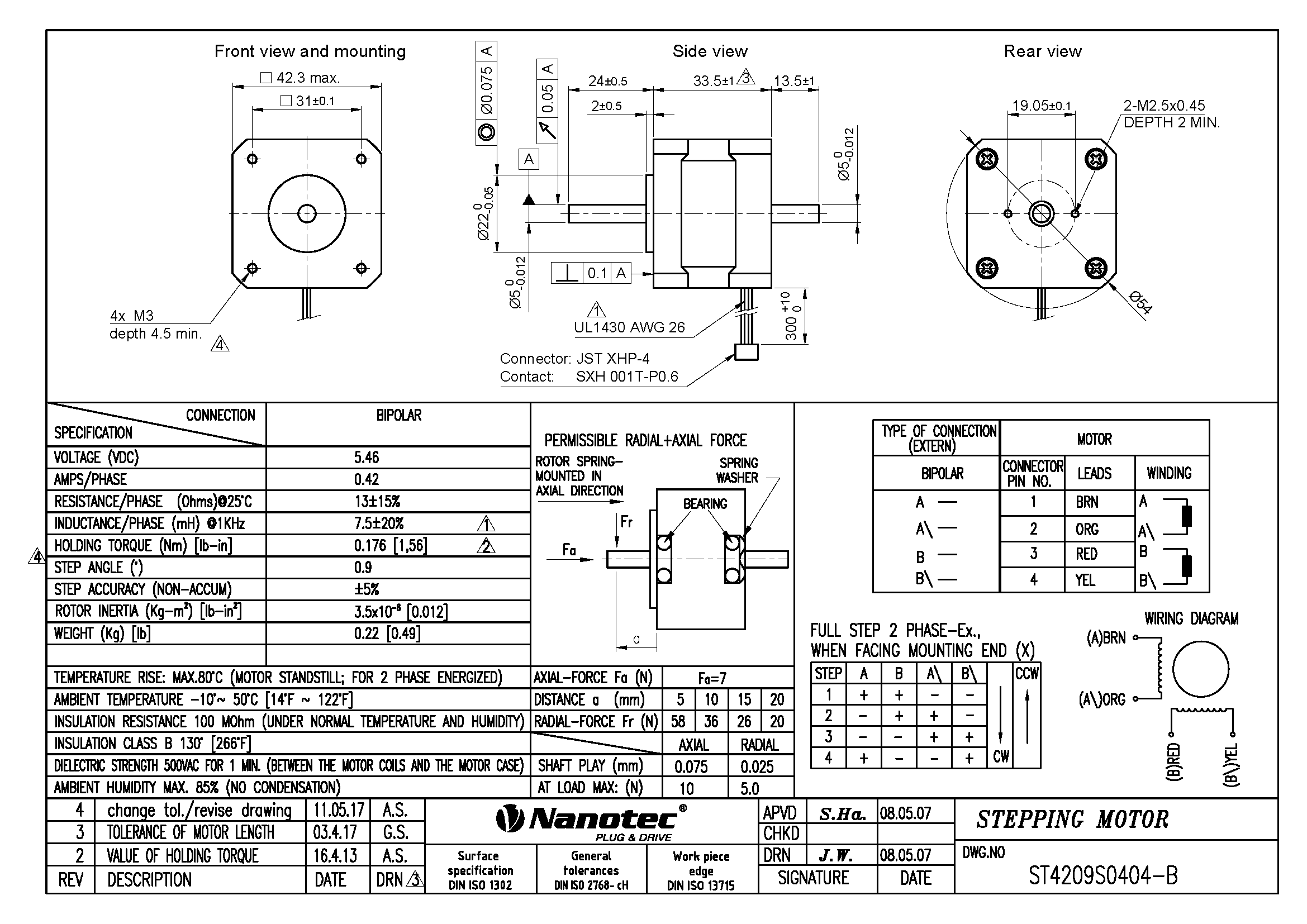

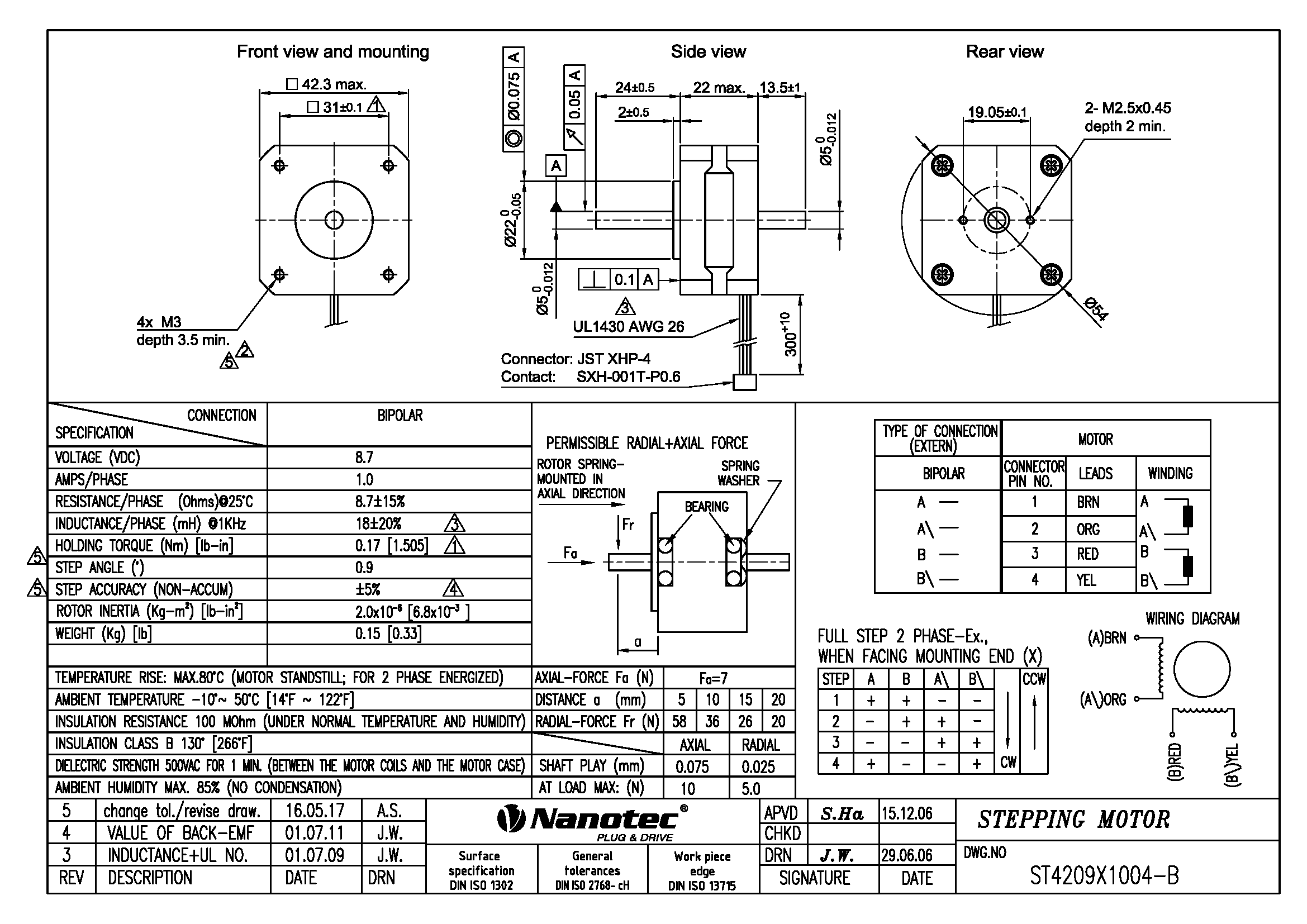

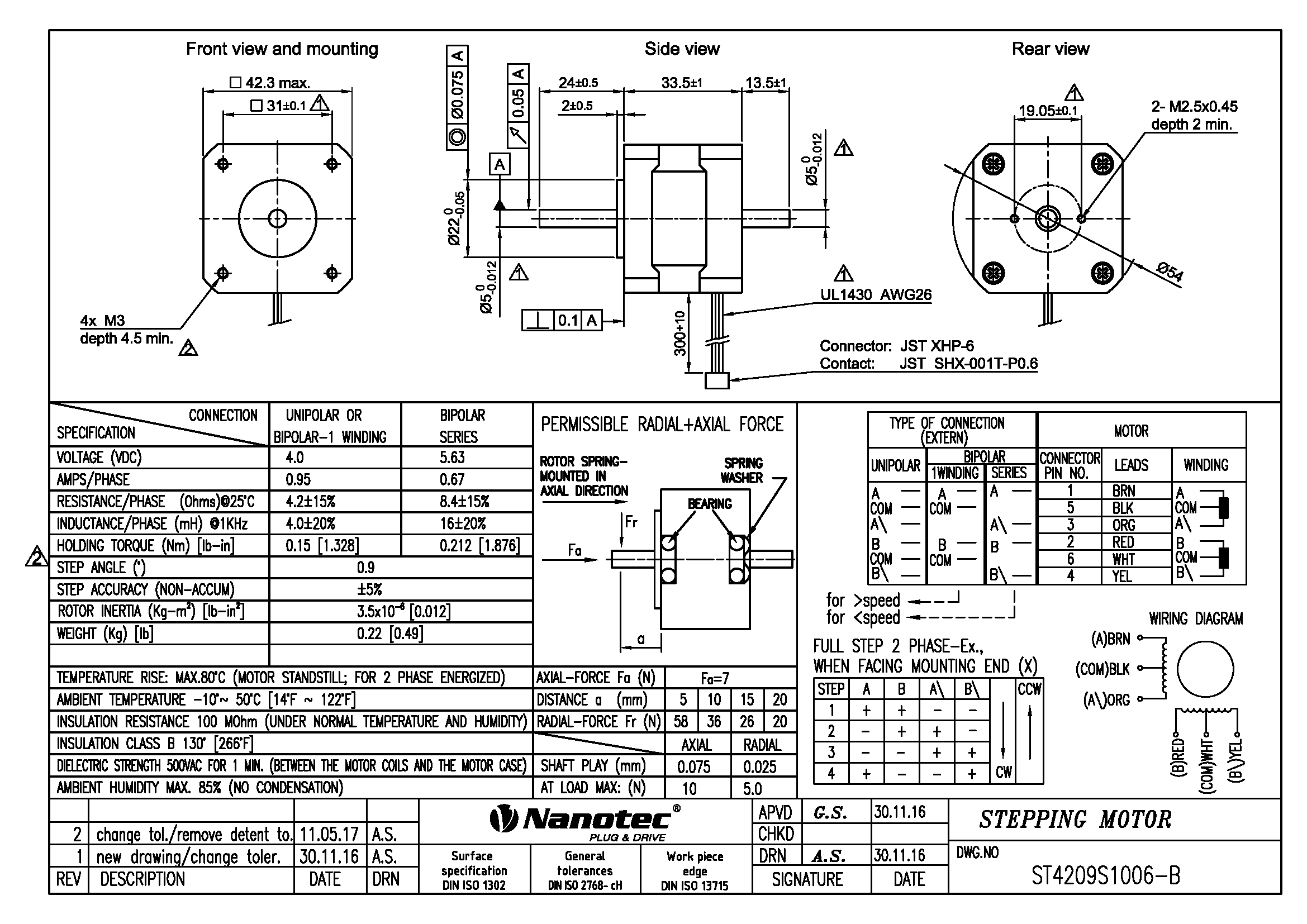

ST4209X1004-A , ST4209X1004-B, ST4209S0404-A, ST4209S0404-B, ST4209S1006-A, ST4209S1006-B, ST4209S1404-A, ST4209S1404-B, ST4209M1206-A, ST4209M1206-B , ST4209M1704-A, ST4209M1704-B, ST4209L1206-A, ST4209L1206-B, ST4209L1704-A, ST4209L1704-B
