FANUC: POWER MATE A CONTROL
Part Number: A02B-0118-B003
Product Series: A02B-0118

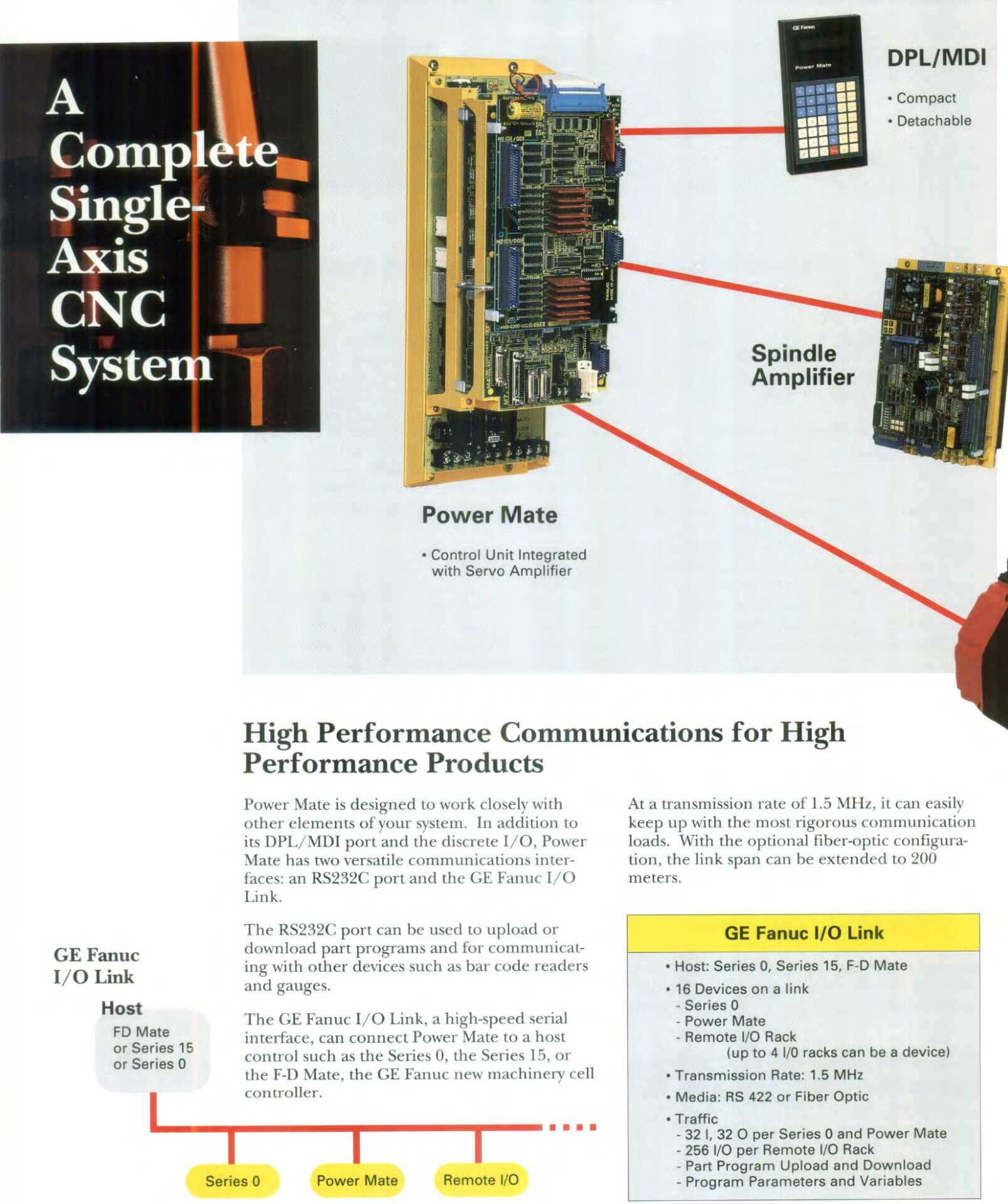

Fanuc A02B-0118-B003 Power Mate Model A Single-Axis CNC. Minimize your nonproductive time by repairing this Model A. The Model A offers precise servo control with high-speed machine control functions. In addition to it's DPL/MDI port and I/O port, the A02B-0118-B003 Power Mate Model A has two communication interfaces, RS232C port and GE Fanuc I/O Link with a transmission rate of 1.5 MHz.
Synopsis:

Fanuc Power Mate (Models ) has an option called “Workpiece Number Search". Using this option, the PMC can initiate the execution of a specified part program. This is especially useful in cases where the Power Mate is used to control special purpose machines that produce a known set of components. Such applications are found in batch production factories.

How it Works:
To synchronize the PMC and CNC functions, there is a communication area in the Fanuc Power Mate where the PMC & CNC exchange signals..
