FANUC: POWER MATE E CONTROL
Part Number: A02B-0168-B013
Product Series: A02B-0168
· SERVO CONTROL

· POWER MATE- MODEL E CONTROL

· COMPATIBLE WITH FANUC ALPHA E SERIES SERVO MOTOR E1/3000 AND E2/3000

· AC INPUT 200/230V

· CNC.

ABOUT:

The Power Mate-are high-performance CNCs developed to provide the

Outstanding speed, precision and efficiency demanded to accomplish the machining of the future

and all in a remarkably compact machine configuration. They achieve a substantial boost in

machining productivity thanks to their high-speed, high-precision. digital $ervo system, high-speed

PMC (Programmable Machine Control) functions, and abundant CNC functions made possible

through the adoption of a high-speed microprocessor.

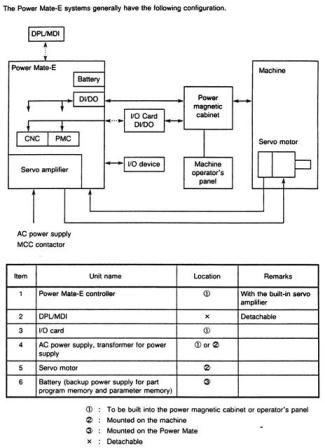

A high-speed microprocessor and many custom LSls have been employed fqr the control circuit,

successfully decreasing the number of circuit elements to the greatest extent. Therefore, its

reliability is much higher, and a small control unit with a power supply unit can be easily built into

the magnetic power cabinet on the machine. Construction of the control unit is of panel mount type

Which allows easy construction of an integrated system of machinery with an electrical unit. A

Simple, heavy current circuit on the machine also allows construction of more compact, united

Special Note: PARAMETERS AND LADDER MUST BE LOADED..
