Panasonic: AC Servo Driver MINAS A6 Family MCDLT35SF

Home > AC Servo System >

Panasonic: AC Servo Driver MINAS A6 Series MCDLT35SF - 750W

Panasonic: AC Servo Driver MINAS A6 Family MCDLT35SF

Price : $697.00

Quantity in Stock:100

Availability: New stock in oversea warehouse
Order #: MCDLT35SF

Qty:

Description

Ordering Information

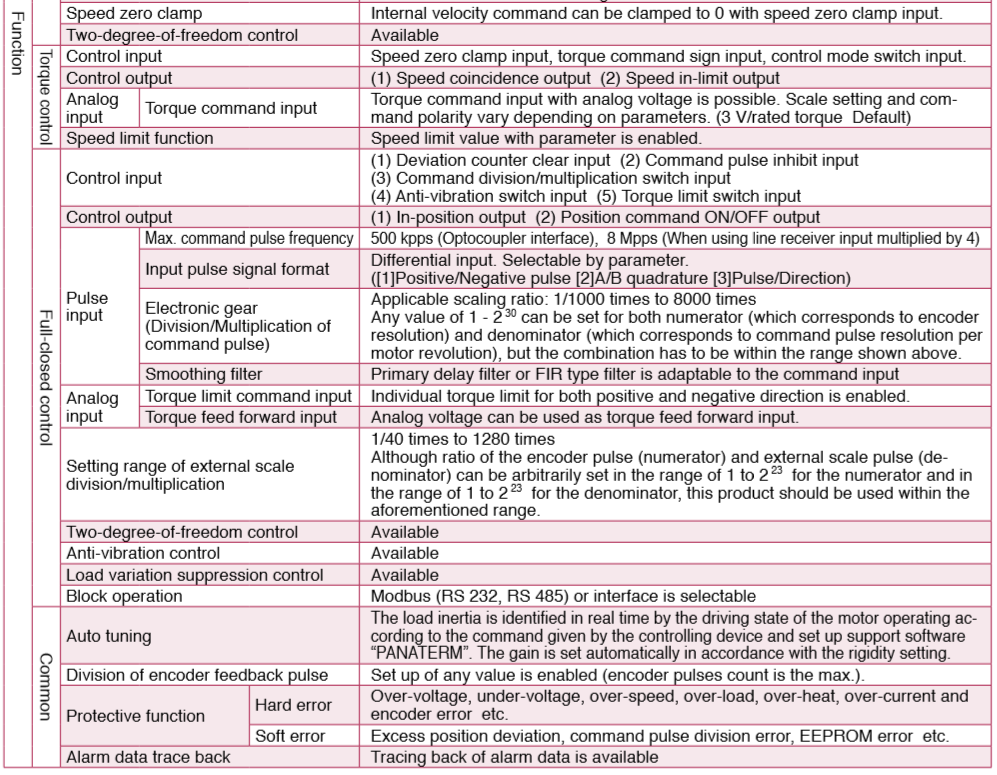

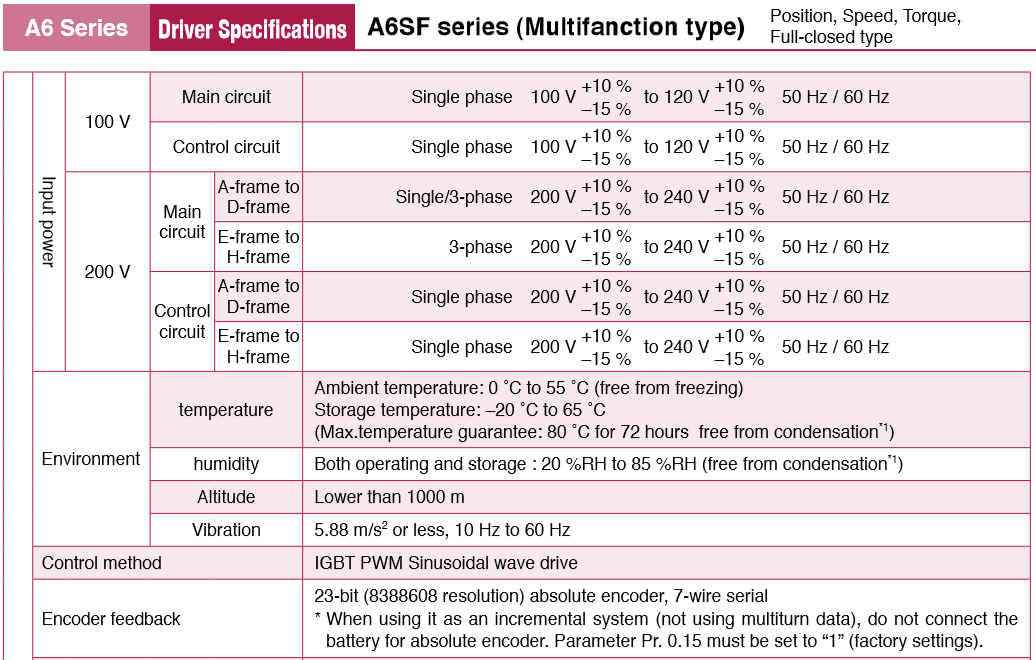

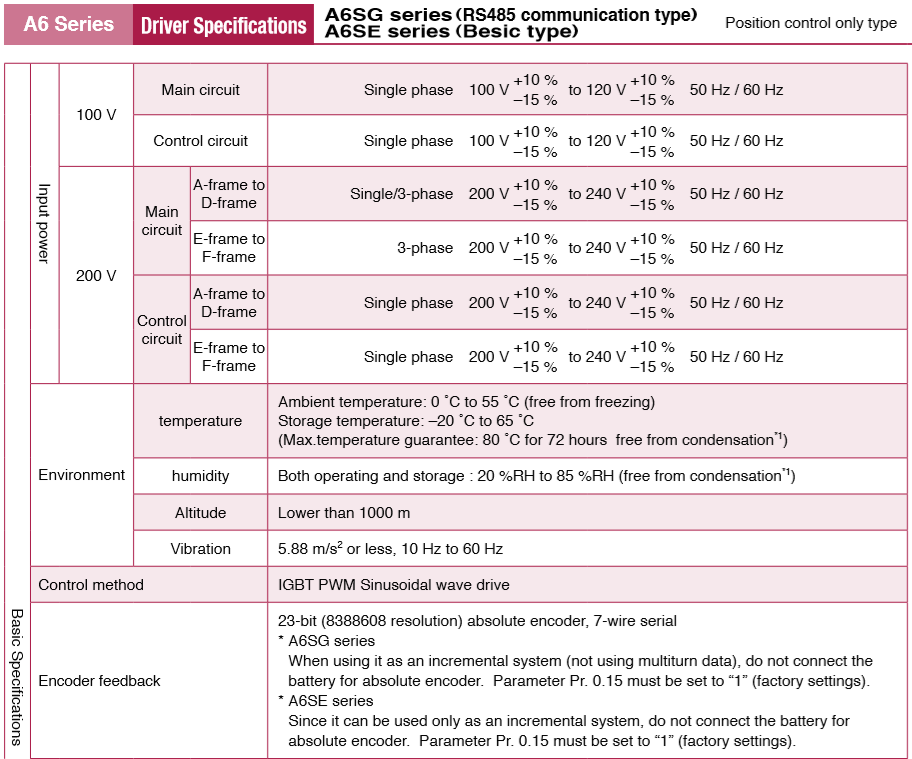

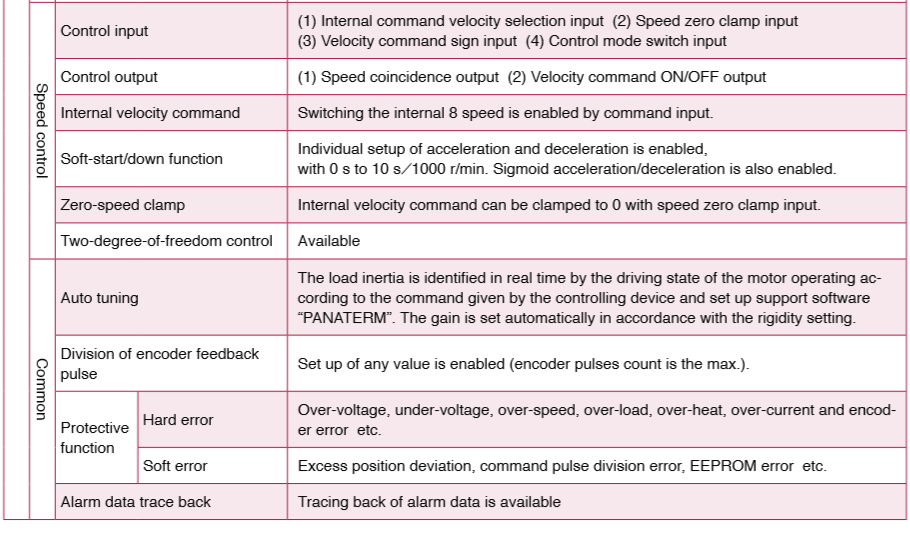

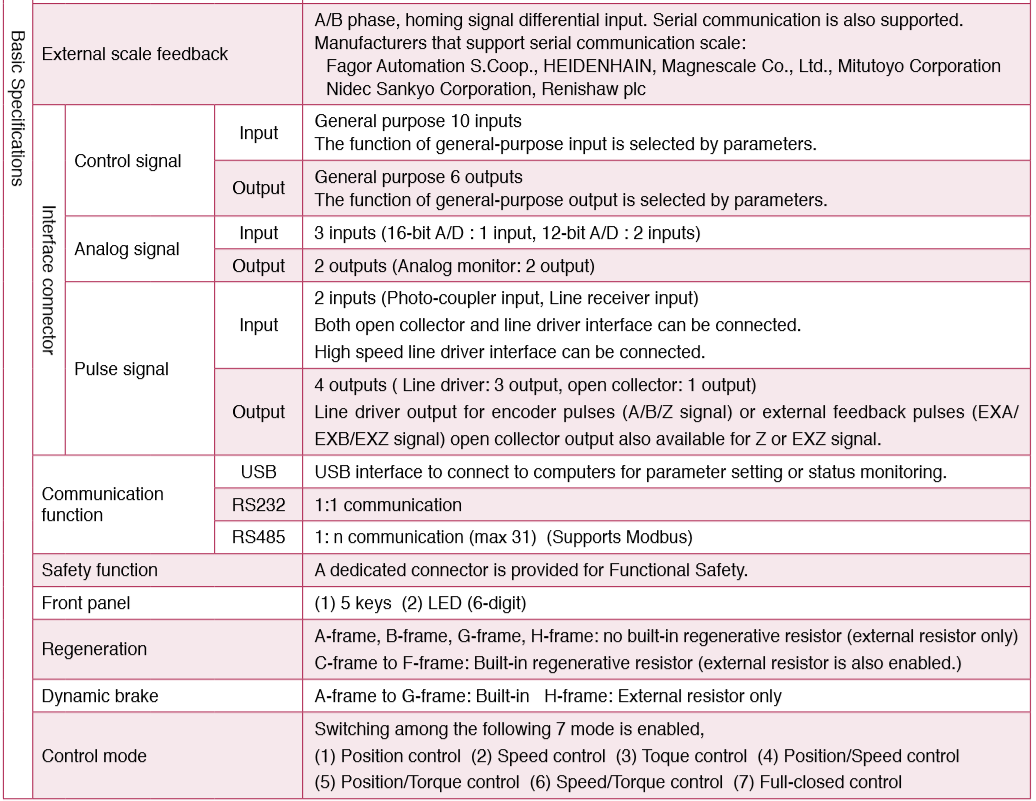

Specifications and Drawings

Panasonic: AC Servo Driver MCDLT35SF - 750W

MINAS A6 Series, 200V

Panasonic's MINAS A6 family is the latest motion and drives which feature real-time auto-tuning, which greatly reduces damage to equipment due to vibration, noise, and jitter. The MINAS A6 family assures stable operation by suppressing effects of the load to a minimum using adaptive load control which is ideal for robot motions where workload changes from moment to moment, regardless of arm posture or position.

Features:

MINAS A6 Series, C Frame
Max. current rating: 22A
Single/3-phase
200V, Load
Multi-Function type: Pulse, Analog, Full-closed, with the safety function
Rated Output Power: 750W

Support Links
MINAS A6 Series Datasheet
