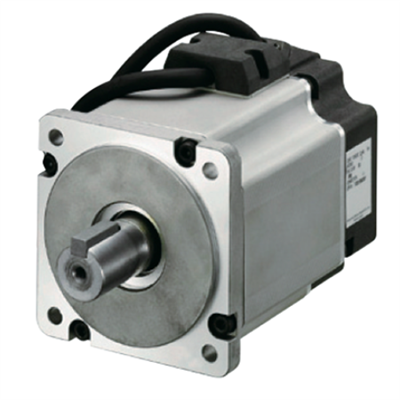

Panasonic: AC Servo Motor MHMJ082G1U (MINAS A5)

MINAS A5 Family (Motor) - Discontinued

High performance, multi-functional and compact AC Servo Motors from Panasonic.

Features:

Part Number	MHMJ082G1U
Product	Servo Motor
Details	High inertia, Lead wire type, IP65
Product Name	MINAS A5 Family Servo Motor (Discontinued)
Features	10 W to 7.5 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 20 bit incremental・17 bit Absolute/Incremental encoder, Frequency response 2.3 kHz

Substitute

MINAS A6 Family Servo Motor

Item	Specifications
Part Number	MHMJ082G1U
Product details	High inertia, Lead wire type, IP65
Family Name	MINAS A5
Series	MHMJ Series
Type	High inertia
Special Order Product	Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan.
Protection class	IP65
About Enclosure	Except rotating portion of output shaft and leadwire end.
Environmental Conditions	For more details, please refer to the instruction manual.
Flange sq. dimension	80 mm sq.
Flange size (mm)	80
Motor lead-out configuration	Lead wire
Motor encoder connector	Lead wire
Power supply capacity (kVA)	1.3
Voltage specifications (V)	200
Rated output (W)	750
Rated current (A rms)	4.0
Holding brake	without
Mass (kg)	2.5
Oil seal	with
Shaft	Key-way, center tap
Rated torque (N ⋅ m)	2.4
Momentary Max. peak torque (N ⋅ m)	7.1
Max. current (A 0-p)	17.0
Regenerative brake frequency (times/min)	Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283
About regenerative brake frequency	Please refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min)	3000
Max. rotational speed (r/min)	4500
Inertia of rotor ( x10-4 kg ⋅ m²)	1.51
Recommended inertia ratio	20 times or less
About recommended moment of inertia ratio of the load and the rotor	Please refer to the details of [Motor Specification Description] ,Note: 3.
Rotary encoder: specifications	20-bit Incremental system
Rotary encoder: Resolution	1048576
