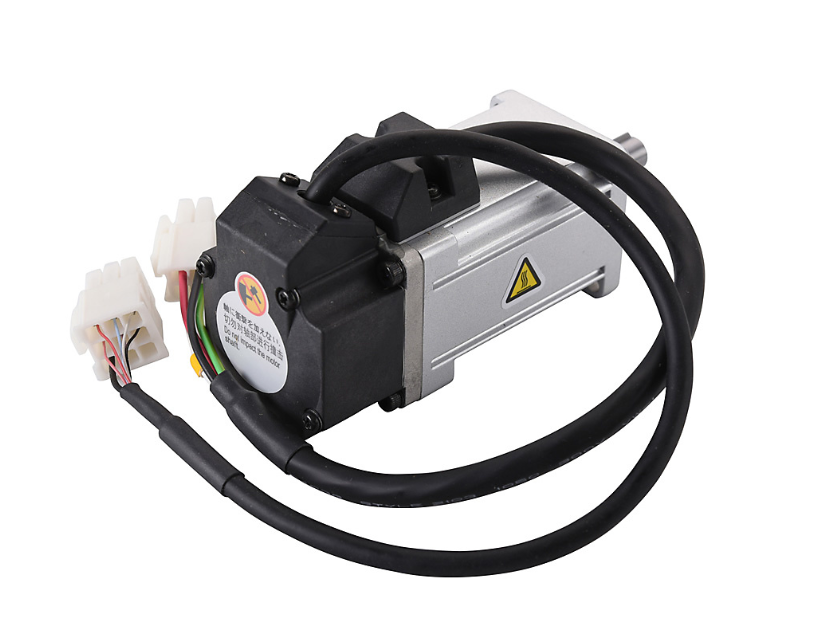

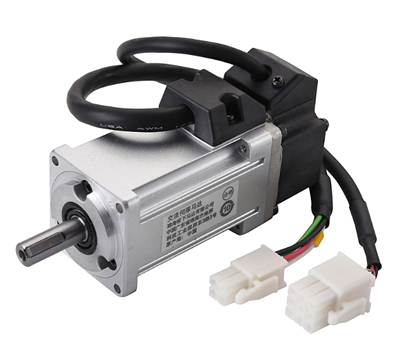

Panasonic: AC Servo Motors MINAS A6 Series MSMF082L1U2M - Low Inertia, 750W

Panasonic, one of the largest motor manufacturers in the world, have designed and developed a new range of globally approved geared motors. Continuing the reputation for quality, value and reliability, more compact, more faster and more easy-to-use Servomotors that meet the demands of the present age.

Features:

Panasonic MSMF082L1U1-MCDLT35SE

High-precision encoder, 23Bit / U; 8.38 million pulses / U

Max. Speed: 6500rpm

Low cogging torque

Even more compact design with new housing design (single-pole technology, even narrower encoder)

IP67 protection for all motors with plug connection

50W to 5000W

Single encoder (can be used as absolute and incremental encoder)

With oil seal and protection lip

Motor Specifications:

Max. speed: 6000 r/min

Rated speed: 3000 r/min

Rated output: 750 W

Rated torque: 2.39 Nm

Max. current: 17.4 A

Rated current: 4.1 A

Encoder: 23-bit absolute (8388608 pulse)
Holding brake: without

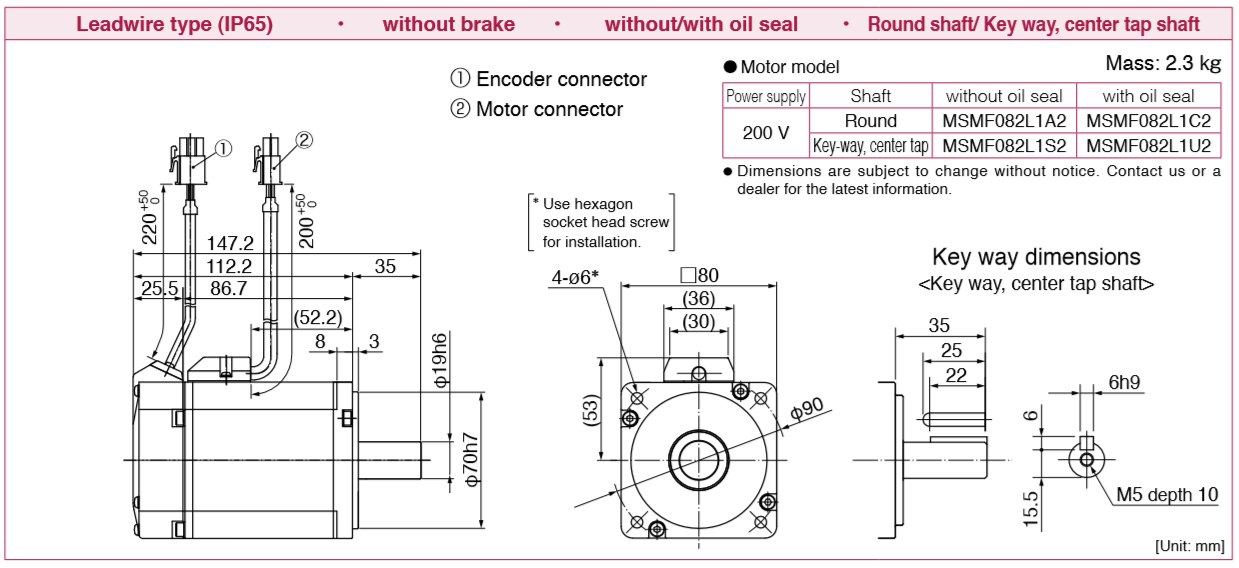

IP65: Leadwire type

IP67: Connector type

Applicable Driver:

1) Multifunction Type: MCDLT35SF

2) Basic Type: MCDLN35SE
