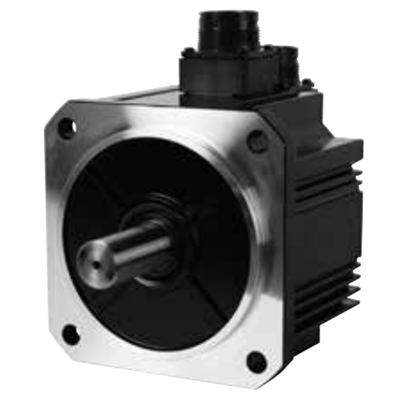

Panasonic: AC Servo Motors MINAS A6 Series MDMF502L1G6M - Middle Inertia, 5.0 kW
Panasonic: AC Servo Motors MINAS A6 Series MDMF502L1G6M - Middle Inertia, 5.0 kW

Alternate View
Price : $2,786.78

Quantity in Stock:5

Availability: New stock in oversea warehouse
Order #: MDMF502L1G6M
Qty:

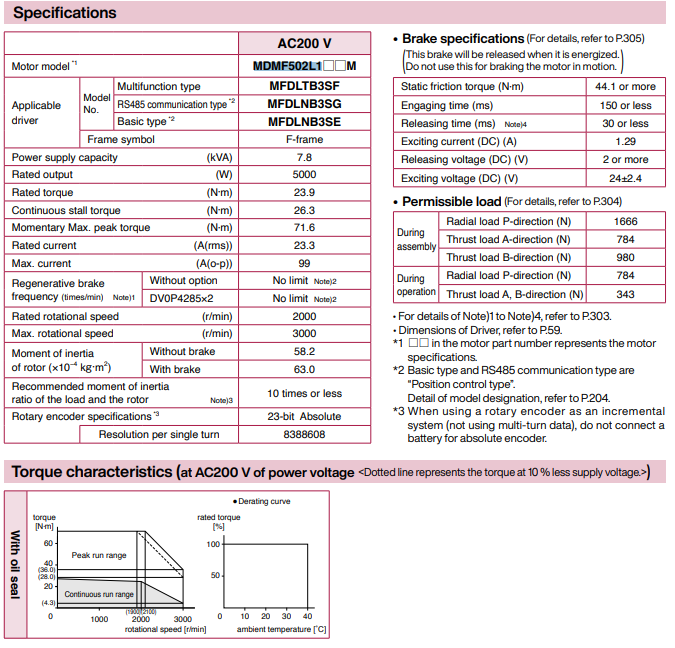

Description Ordering Information Specifications and Drawings


Panasonic: AC Servo Motors MINAS A6 Series MDMF502L1G6M - Middle Inertia, 5.0 kW


Motor Specifications:


Max. speed: 3000 r/min

Rated speed: 2000 r/min

Rated output: 5.0 kW

Rated torque: 23.9 Nm

Max. current: 99 A

Rated current: 23.3 A

Encoder: 23-bit absolute (8388608 pulse)
Holding brake: without

IP67: Connector type

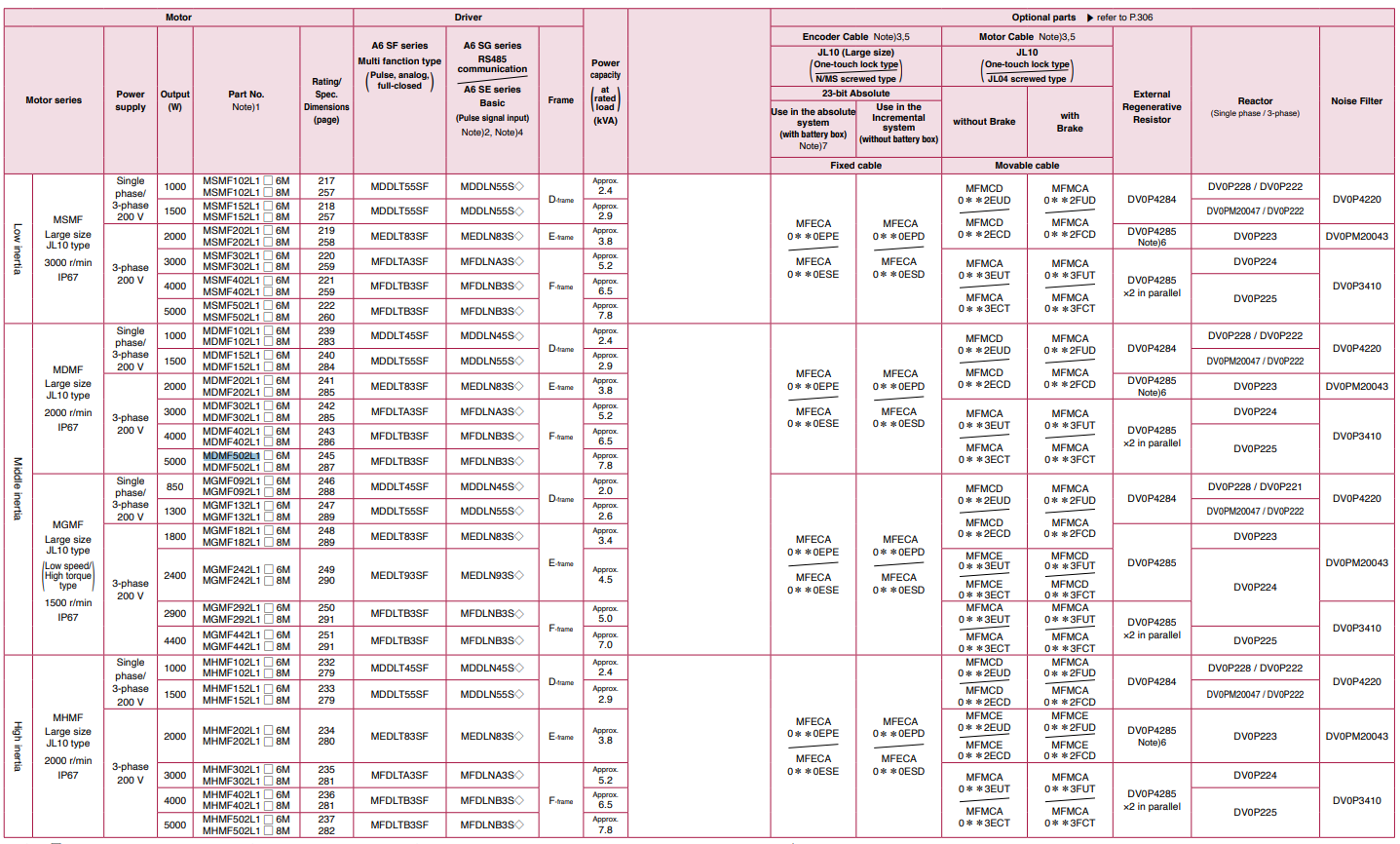

Applicable Driver:

1) Multifunction Type: MFDLTB3SF

2) Basic Type: MFDLNB3SE

3) RS485 communication type: MFDLNB3SG
