Panasonic: AC Servo Motors MINAS A6 Series MHMF152L1H6M - High Inertia, 1.5 kW
Panasonic: AC Servo Motors MINAS A6 Series MHMF152L1H6M - High Inertia, 1.5 kW

Alternate View
Price : $1,319.50

Quantity in Stock:25

Availability: New stock in oversea warehouse
Order #: MHMF152L1H6M
Qty:

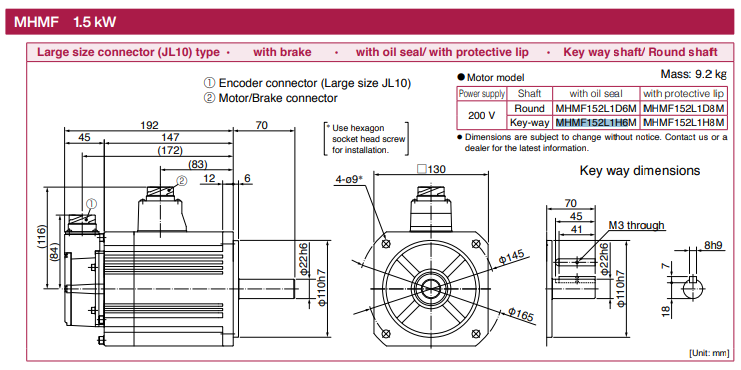

Description Ordering Information Specifications and Drawings


Panasonic: AC Servo Motors MINAS A6 Series MHMF152L1H6M - High Inertia, 1.5 kW


Motor Specifications:


Max. speed: 3000 r/min

Rated speed: 2000 r/min

Rated output: 1.5 kW

Rated torque: 7.16 Nm

Max. current: 34 A

Rated current: 8.0 A

Encoder: 23-bit absolute (8388608 pulse)
Holding brake: with

IP67: Connector type

Applicable Driver:

1) Multifunction Type: MDDLT55SF

2) Basic Type: MDDLN55SE

3) RS485 communication type: MDDLN55SG
