Panasonic: AC Servo Motors MINAS A6 Series MHMF202L1H6M - High Inertia, 2.0 kW
Panasonic: AC Servo Motors MINAS A6 Series MHMF202L1H6M - High Inertia, 2.0 kW

Alternate View
Price : $1,715.35

Quantity in Stock:10

Availability: New stock in oversea warehouse
Order #: MHMF202L1H6M
Qty:

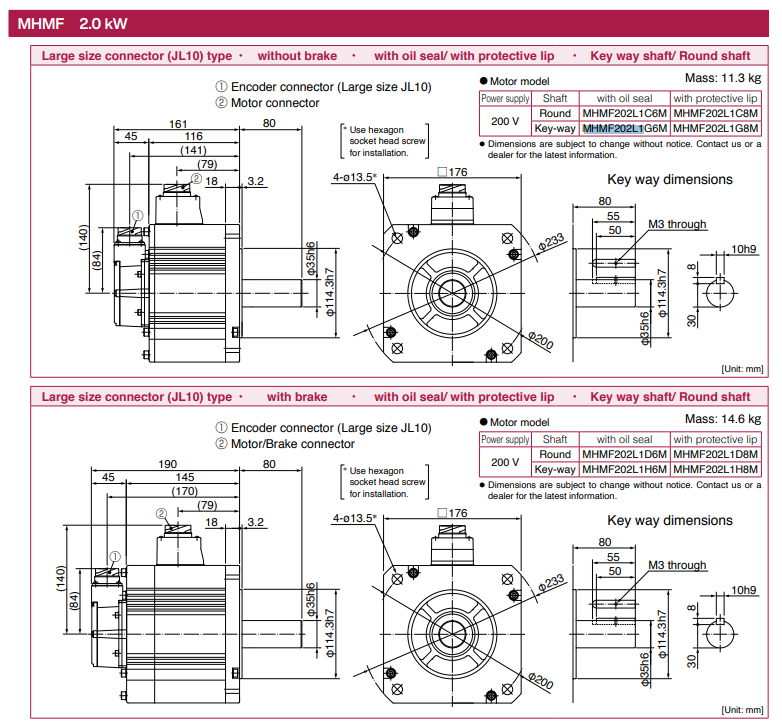

Description Ordering Information Specifications and Drawings


Panasonic: AC Servo Motors MINAS A6 Series MHMF202L1H6M - High Inertia, 2.0 kW

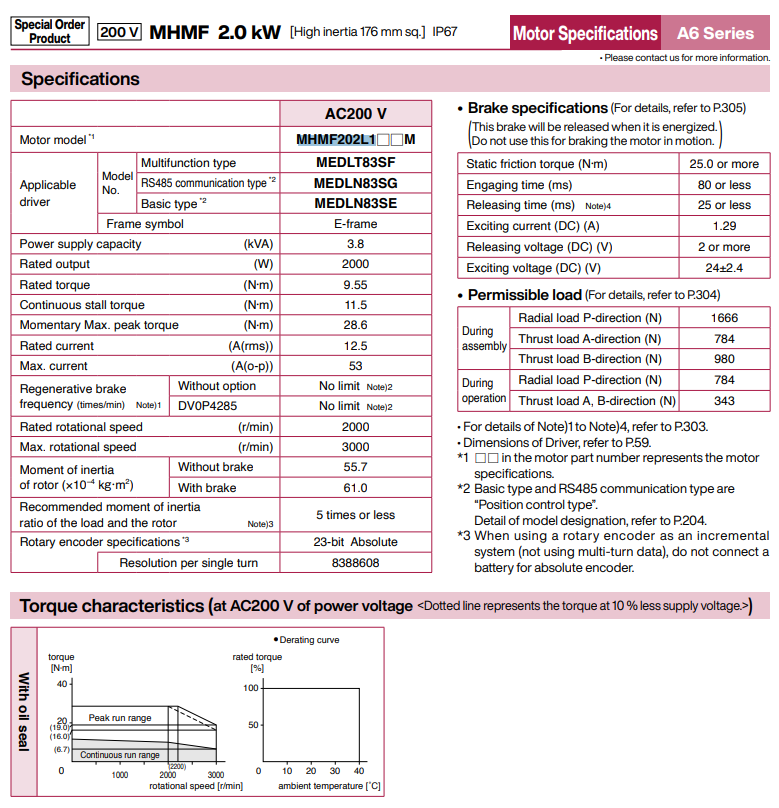

Motor Specifications:


Max. speed: 3000 r/min

Rated speed: 2000 r/min

Rated output: 2.0 kW

Rated torque: 9.55 Nm

Max. current: 53 A

Rated current: 12.5 A

Encoder: 23-bit absolute (8388608 pulse)
Holding brake: with

IP67: Connector type

Applicable Driver:

1) Multifunction Type: MEDLT83SF

2) Basic Type: MEDLN83SE

3) RS485 communication type: MEDLN83SG
