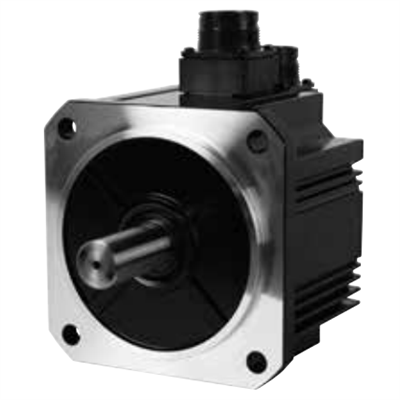

Panasonic: AC Servo Motors MINAS A6 Series MHMF302L1G6M - High Inertia, 3.0 kW
Panasonic: AC Servo Motors MINAS A6 Series MHMF302L1G6M - High Inertia, 3.0 kW

Alternate View
Price : $1,451.50

Quantity in Stock:5

Availability: New stock in oversea warehouse
Order #: MHMF302L1G6M
Qty:

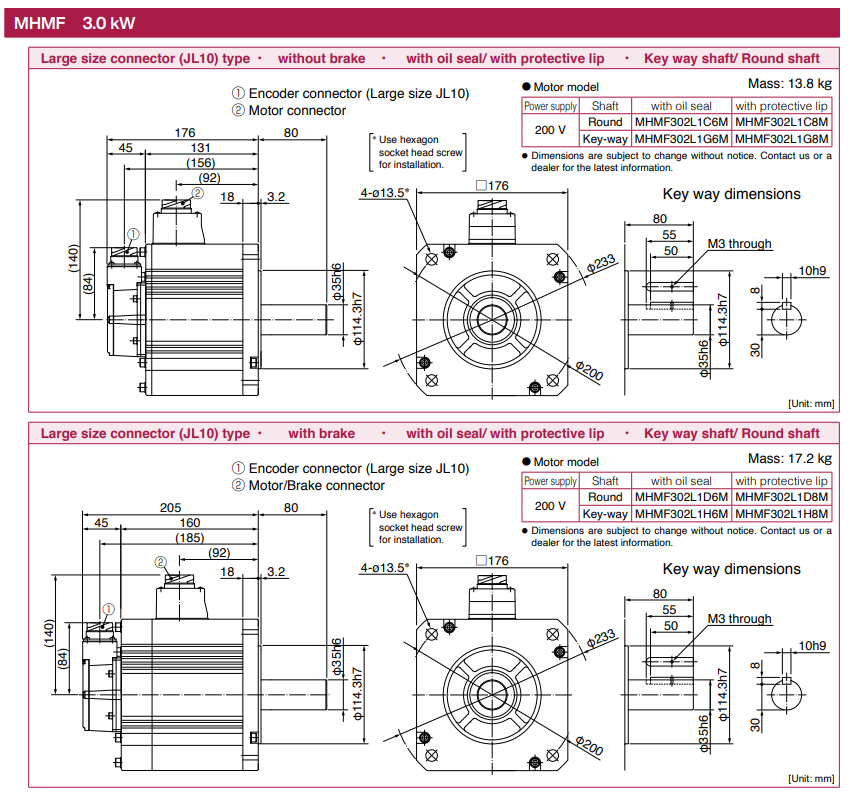

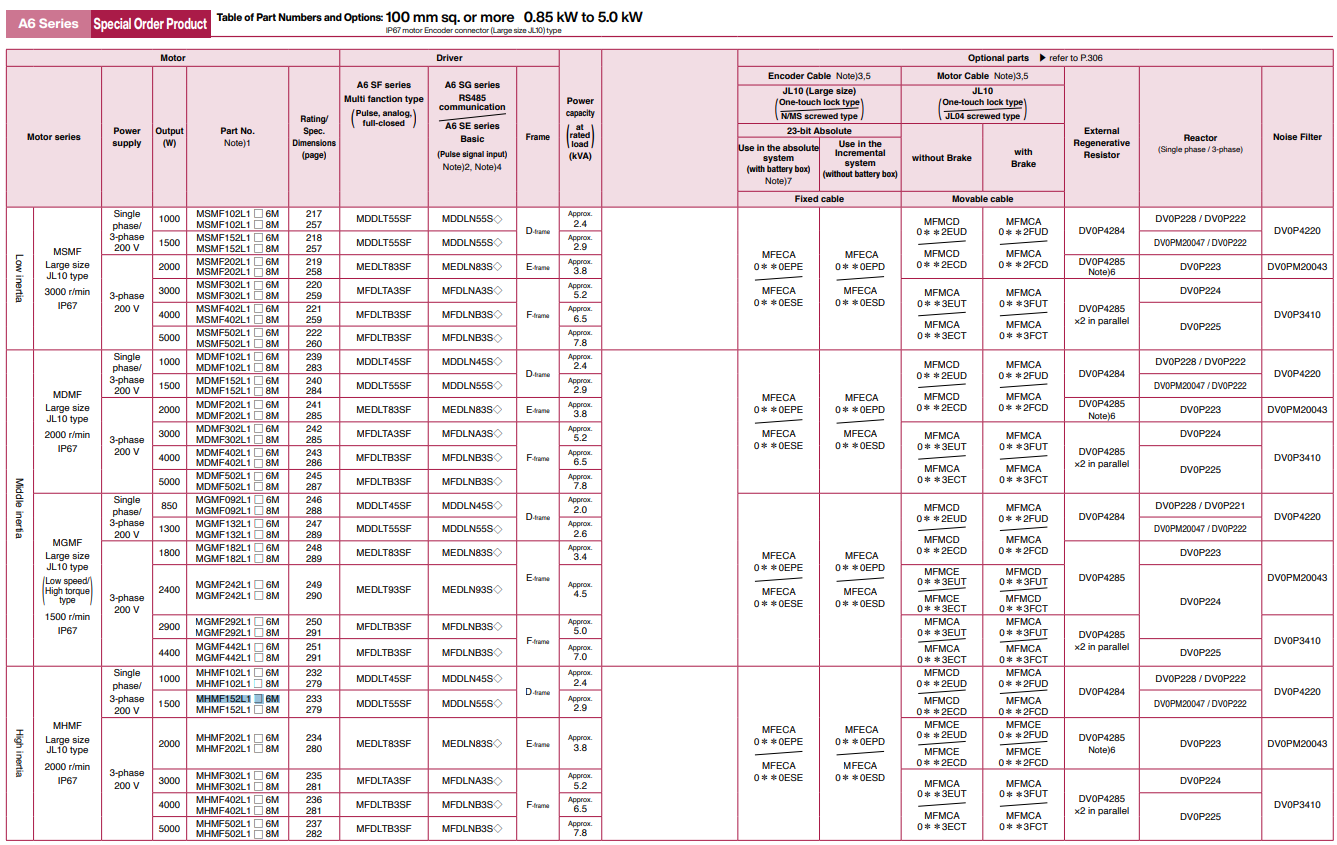

Description Ordering Information Specifications and Drawings


Panasonic: AC Servo Motors MINAS A6 Series MHMF302L1G6M - High Inertia, 3.0 kW

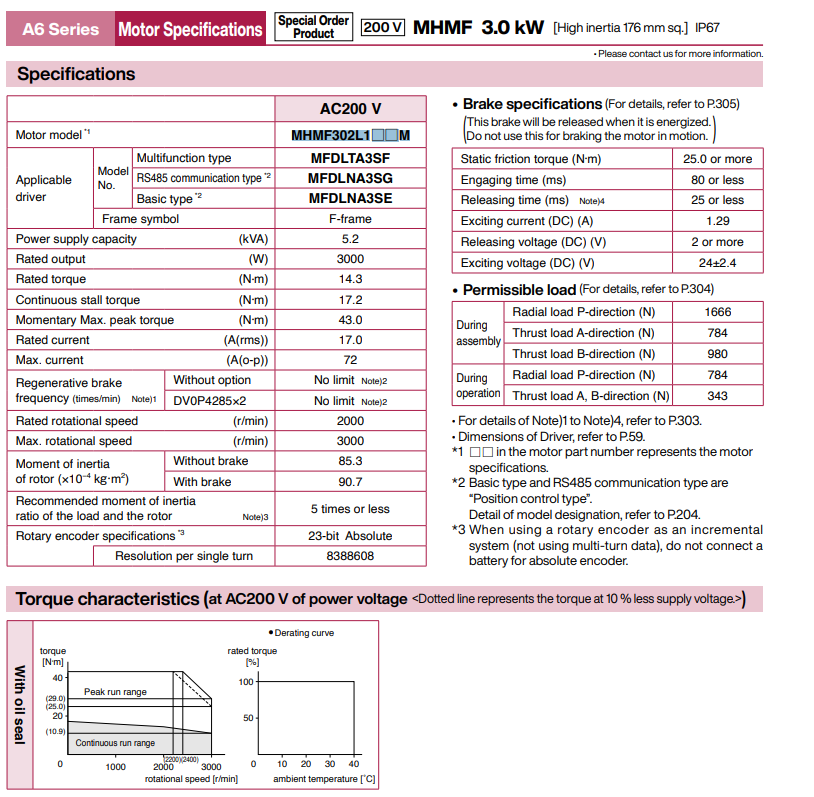

Motor Specifications:


Max. speed: 3000 r/min

Rated speed: 2000 r/min

Rated output: 3.0 kW

Rated torque: 14.3 Nm

Max. current: 72 A

Rated current: 17.0 A

Encoder: 23-bit absolute (8388608 pulse)
Holding brake: without

IP67: Connector type

Applicable Driver:

1) Multifunction Type: MFDLTA3SF

2) Basic Type: MFDLNA3SE

3) RS485 communication type: MFDLNA3SG
