Panasonic: AC Servo Motors MINAS A6 Series MSMF092L1U2M - Low Inertia, 1.0 kW
Panasonic: AC Servo Motors MINAS A6 Series MSMF092L1U2M - Low Inertia, 1.0kW

Alternate View
Price : $554.20

Quantity in Stock:50

Availability: New stock in oversea warehouse
Order #: MSMF092L1U2M
Qty:

Description Ordering Information Specifications and Drawings


Panasonic: AC Servo Motors MINAS A6 Series MSMF092L1U2M - Low Inertia, 1.0 kW

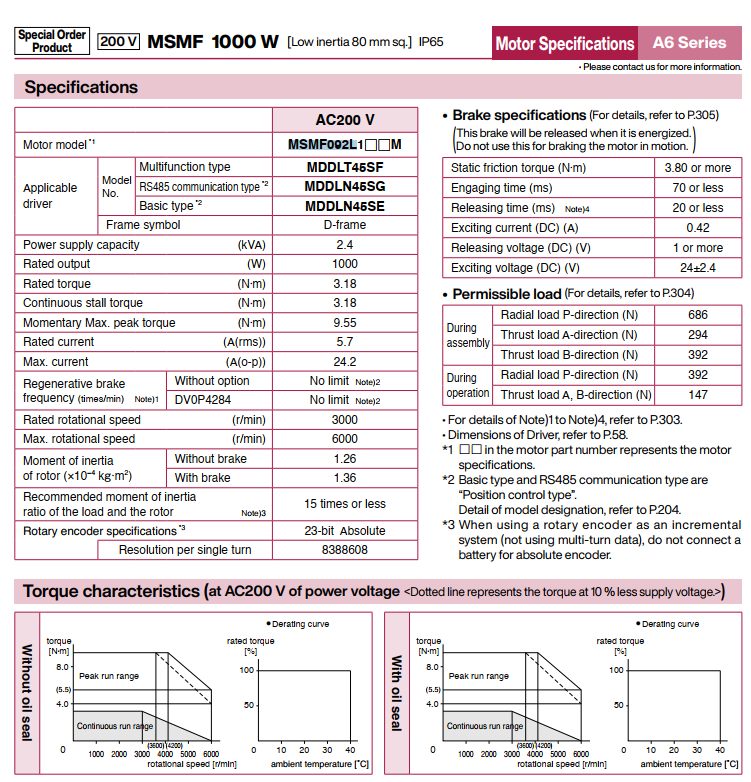

Motor Specifications:


Max. speed: 6000 r/min

Rated speed: 3000 r/min

Rated output: 1.0 kW

Rated torque: 3.18 Nm

Max. current: 24.2 A

Rated current: 5.7 A

Encoder: 23-bit absolute (8388608 pulse)
Holding brake: without

IP65: Leadwire type

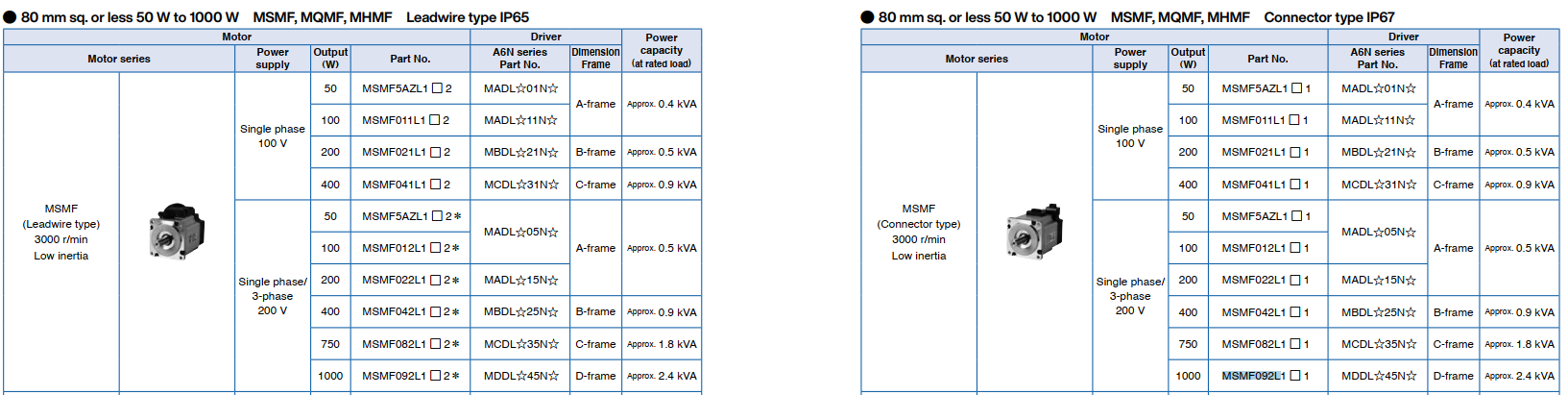

Applicable Driver:

1) Multifunction Type: MDDLT45SF

2) Basic Type: MDDLN45SE

3) RS485 communication type: MDDLN45SG
