Parker Bayside: Gearhead (PX90-003 Series)
Parker Bayside: Gearhead (PX90-003 Series)

Alternate View
Parker Bayside Gen. I Stealth Gearhead PX90-003-with-MX90-003-126 is replaced by Gen. II Stealth

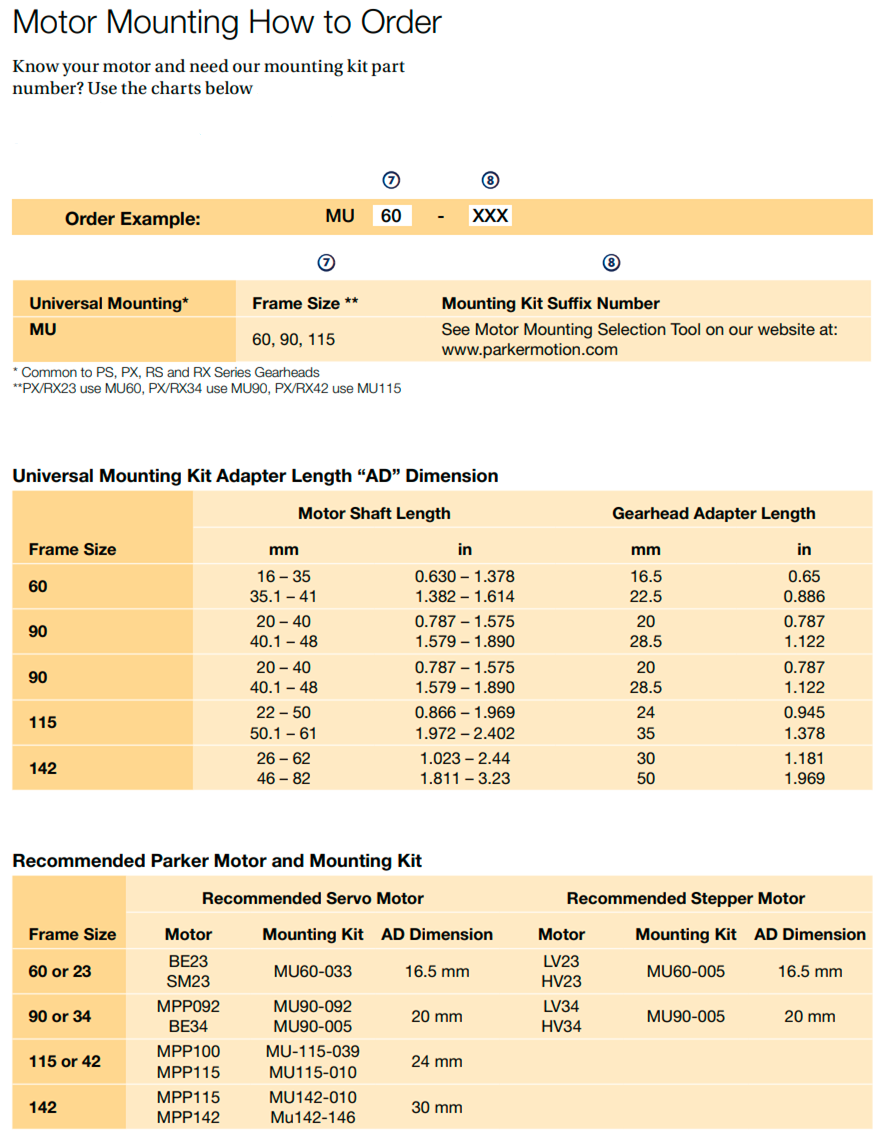

PX90-003-S2 + MU90-126


Availability: No stock
Order #: PX90-003-WITH-MX90-003-126
.

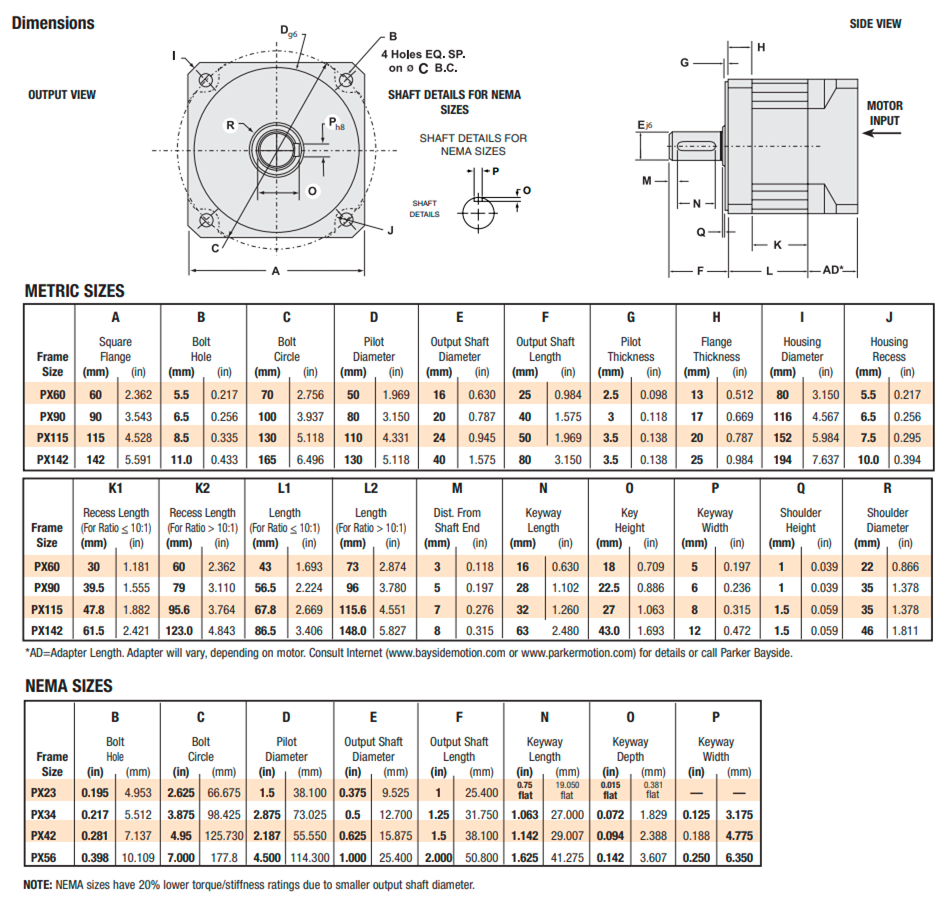

Description Ordering Information Specifications and Drawings


Parker Bayside: Generation I Stealth® Helical Planetary Gearhead (PX90-003 Series)

Stealth PX incorporates Parker Bayside's helical planetary technology in a lower-cost package. Available in NEMA and metric frame sizes, Stealth PX delivers high torque and quiet, smooth operation for less-demanding servo applications.

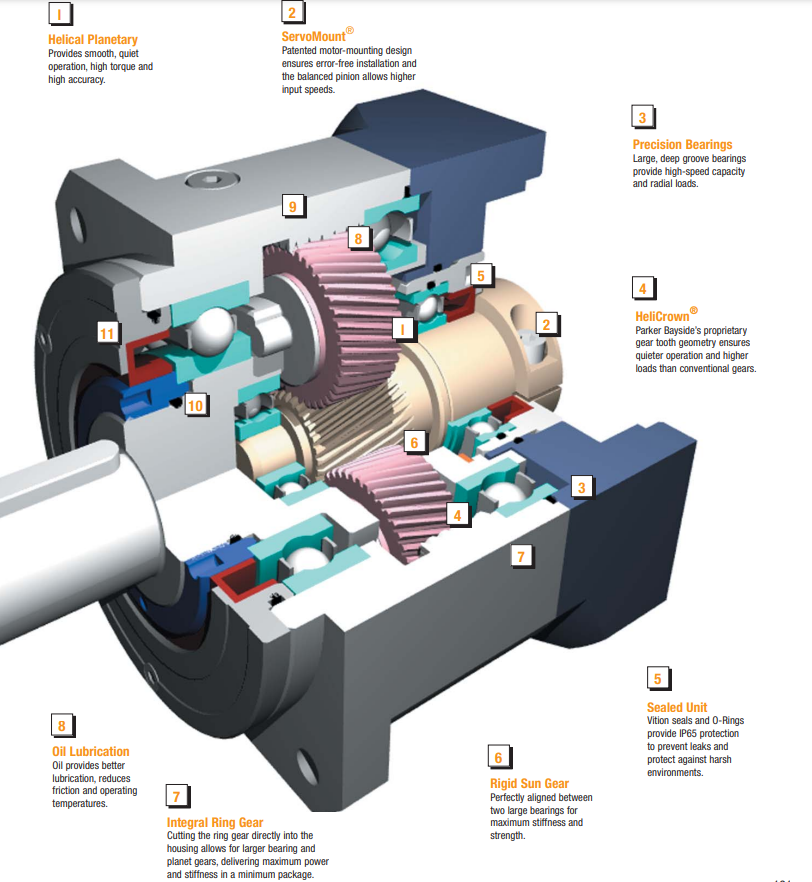

Common features for all Generation I & II Stealth® gearheads:

  • Helical Planetary – Provides smooth, quiet operation, high torque and high accuracy.

  • ServoMount® – Motor-mounting design ensures error-free installation and the balanced pinion allows higher input speeds.

  • Precision Bearings – Provide high speed and high radial and axial load capacity.

  • HeliCrown® – Parker’s proprietary gear tooth geometry ensures quieter operation and higher loads than conventional gears.

  • Sealed Unit – Viton seals and O-Rings provide IP65 protection to prevent leaks and protect against harsh environments.

  • Integral Ring Gear – Cutting the ring gear directly into the housing allows for larger bearing and planet gears, delivering maximum power and stiffness in a minimum package.


Specifications:
