The ET Series Electric Cylinder

The automation industry demands flexibility and durable design. The ET Series Electric Cylinder serves both demands. Introduced as the world's first complete stepper and servo driven electric cylinder system, the ET Series combines an unparalleled design with a variety of options that make it easy to integrate into both new and existing applications.

Produced to hard metric ISO standards, the ET Series can mount into existing fluidpower cylinder applications, adding infinite programmability to the durability and long life expected of hydraulic and pneumatic cylinders. Its modular design includes nine different actuator mounting styles in addition to available custom mounting. The ET Series' range of five profile sizes present the user with the flexibility to configure the actuator to the application.

Combined with a Parker Hannifin motor and control system, the ET Series arrives at the customer's dock complete and ready to mount. Backed by an industry-leading 2 year warranty and Parker Hannifin's worldwide customer support network, the ET Series is a global automation solution.

ET Markets and Applications

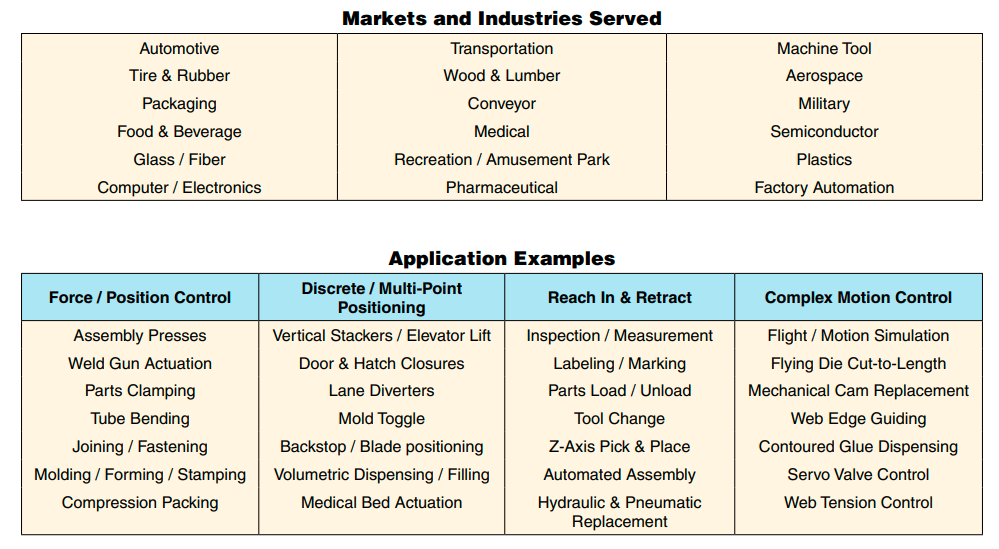

With thousands of axes installed worldwide, the ET series electric cylinder has proven to be a robust and reliable solution for numerous motion control applications across many markets and industries. Listed below are some examples of where and how the ET series electric cylinder has been successfully applied

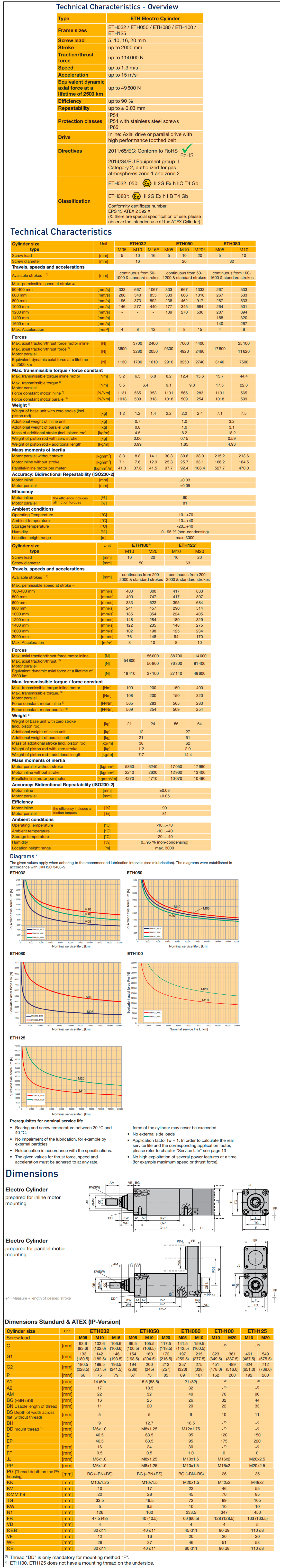

Catalog and Specifications
		ET Catalog PDF (6.6 Mb)
User Guides
		ET Maintenance Manual
		ET125 Maintenance Manual
		Wiring limits to an ACR
Download - Drawings and CAD files

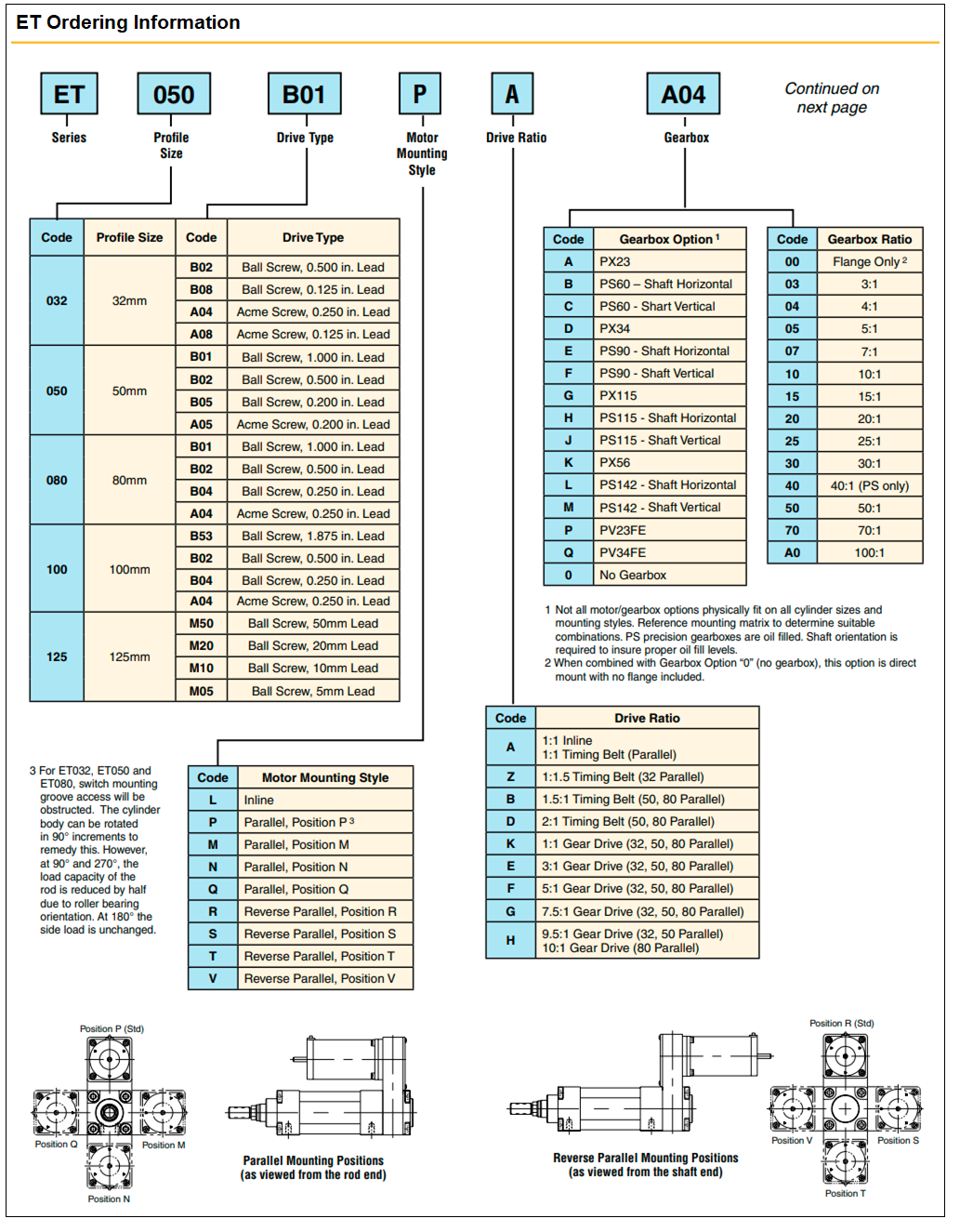

		3D CAD and Part Number Configuration - ET
