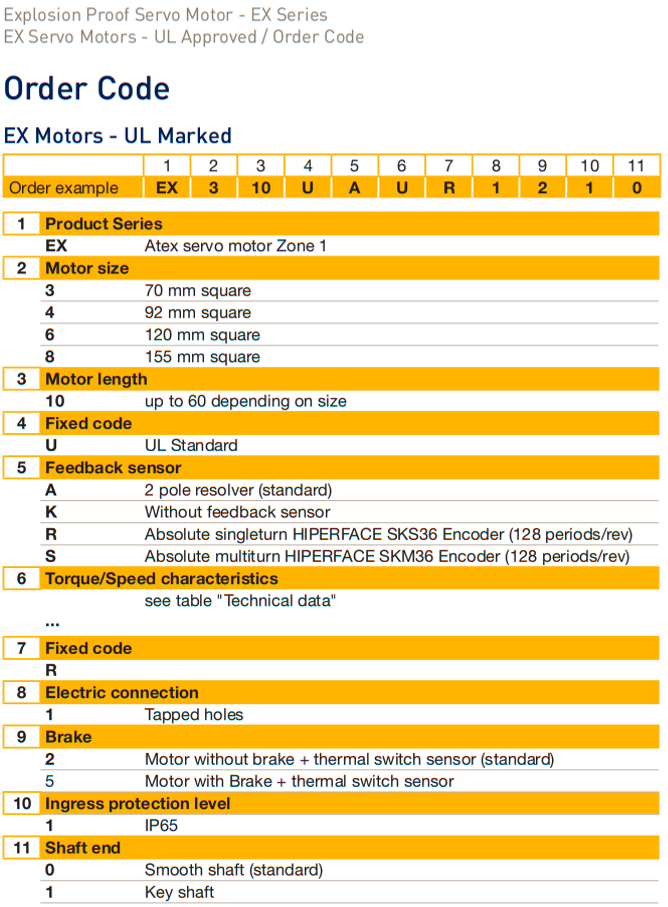

Ordering Information

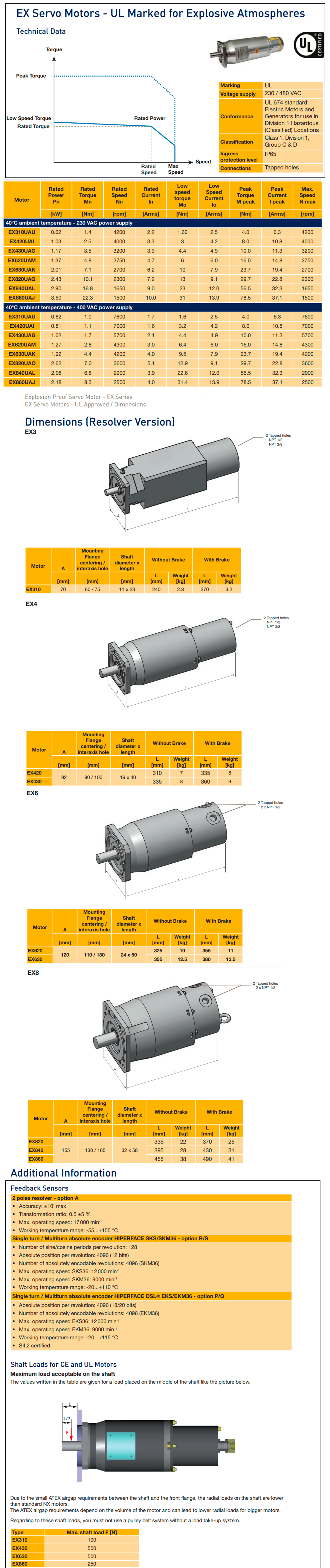

Specifications and Drawings

Parker: Explosion Proof Servo Motors - EX Series UL Approved EX310UAUR1210

Explosion Proof Motor for Zone 1 - EX Series

Overview

Description

EX series is a range of permanent magnet servo motor designed for use in zone 1 explosive atmospheres. Featuring robust explosion-proof housings, EX motors are capable of bearing internal explosions with no risks of propagation to the neighbouring environment. Two versions are available, conforming with North American or European safety standards. EX servomotors are characterized by excellent motion quality, great acceleration / deceleration capabilities, and high torque output over a wide speed range. Various winding variants and numerous options are available to offer maximum flexibility.

EX series motors are designed for use in explosive atmospheres. Two versions are available that conform to CE/ATEX, UL and IECEx requirements. EX motors are capable of bearing internal explosions with no risk of propagation to the outside environment. EX motors are characterized by excellent motion quality, great acceleration/deceleration capabilities and high torque output over a wide speed range.

Advantages

• Servo motors with explosion proof enclosure "d"

• Conforming with CE/ATEX, UL and IECEx

• For an ambiant temperature at 40°c or 60°C

• For gas and dust explosive atmospheres

• High precision

• High motion quality

• High dynamic performance

• Low cogging

• Compactness and robustness

• Maintenance free

• High power density (6 kW in a 155 square frame)
