Parker: Gantry Robot System - System Six (Three Axis: XX’-YY’-Z)
Parker Gantry Systems Minimize Your Engineering Effort

Parker’s gantry systems provide cost-effective, easy to integrate solutions that satisfy the vast majority of automation requirements. In addition to our standard gantry systems, Parker offers products with additional capabilities to fulfill the needs of special applications. Our engineering skill and manufacturing expertise have integrated these products into custom-tailored gantry solutions which have successfully addressed the most unique and exacting requirements of machine builders and integrators around the world.

• Motors, Drives and Controls

• Extended Travels

• Rotary Motion Modules

• Cleanroom Preparations

• External Position Feedback

• Vertical Axis Brakes

• End Effectors

• Protective Guarding

• Custom Support Structures

Parker’s seven standard system configurations are designed to satisfy the vast majority of gantry robot applications. By standardizing on these configurations, Parker has simplified sizing and selection, shortened lead times, and reduced costs for users of these systems. The travels and loads indicated are nominal, and should not be considered limiting factors. Longer travels and increased loads are attainable depending upon the combination of parameters.

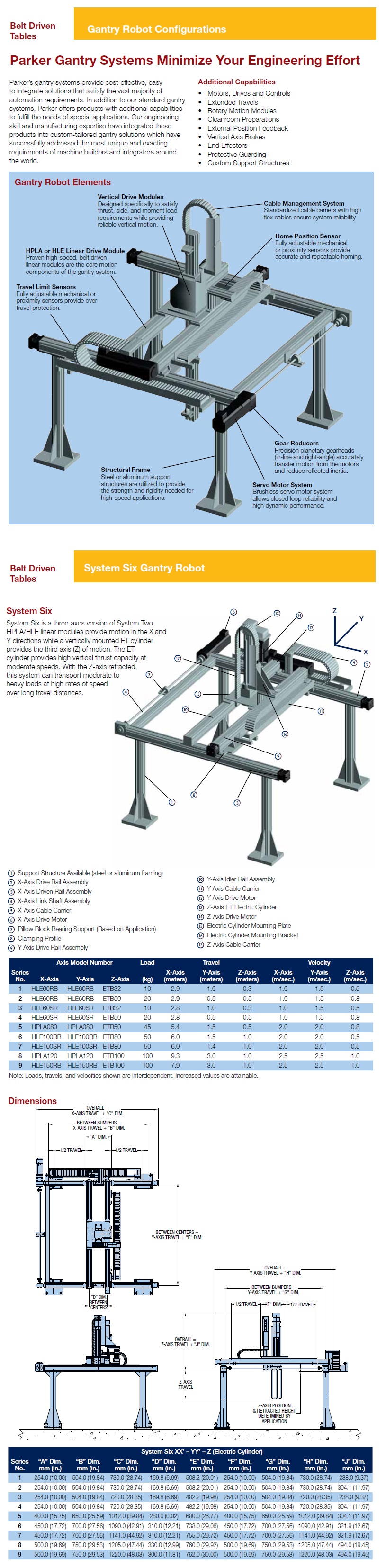

System Six

System Six is a three-axes version of System Two. HPLA/HLE linear modules provide motion in the X and Y directions while a vertically mounted ET cylinder provides the third axis (Z) of motion. The ET cylinder provides high vertical thrust capacity at moderate speeds. With the Z-axis retracted, this system can transport moderate to heavy loads at high rates of speed over long travel distances.

Series No.	X-Axis	Y-Axis	Z-Axis
1	HLE60RB	HLE60RB	ETB32
2	HLE60RB	HLE60RB	ETB50
3	HLE60SR	HLE60SR	ETB32
4	HLE60SR	HLE60SR	ETB50
5	HPLA080	HPLA080	ETB50
6	HLE100RB	HLE100RB	ETB80
7	HLE100SR	HLE100SR	ETB80
8	HPLA120	HPLA120	ETB100
9	HLE150RB	HLE150RB	ETB100

Size: HLE100RB-HLE100RB-ETB80 (X-Axis) (Y-Axis) (Z-Axis), HLE100SR-HLE100SR-ETB80 (X-Axis) (Y-Axis) (Z-Axis), HLE150RB-HLE150RB-ETB100 (X-Axis) (Y-Axis) (Z-Axis), HLE60RB-HLE60RB-ETB32 (X-Axis) (Y-Axis) (Z-Axis), HLE60RB-HLE60RB-ETB50 (X-Axis) (Y-Axis) (Z-Axis), HLE60SR-HLE60SR-ETB32 (X-Axis) (Y-Axis) (Z-Axis), HLE60SR-HLE60SR-ETB50 (X-Axis) (Y-Axis) (Z-Axis), HPLA080-HPLA080-ETB50 (X-Axis) (Y-Axis) (Z-Axis), HPLA120-HPLA120-ETB100 (X-Axis) (Y-Axis) (Z-Axis)
