Parker: High Precision Right-Angle Multi-Drive Helical Gearheads/Double Shaft (RD Series) RD142E003-LB

Stealth RD-series Multi-Drive gearheads offer the option of a double shaft in a compact, right angle package. Available in 90-220mm frame sizes, RD-series gearheads feature Stealth helical gearing for high torque, high accuracy and quiet operation.

The Stealth RD-series Multi-Drive gearheads offer the option of a double shaft in a compact, right angle package and features Stealth helical gearing for high torque, high accuracy and quiet operation. Available in 90-220mm frame sizes and with multiple ratios to choose from, you are sure to find a Stealth Multi-Drive to fit your servo motor application.

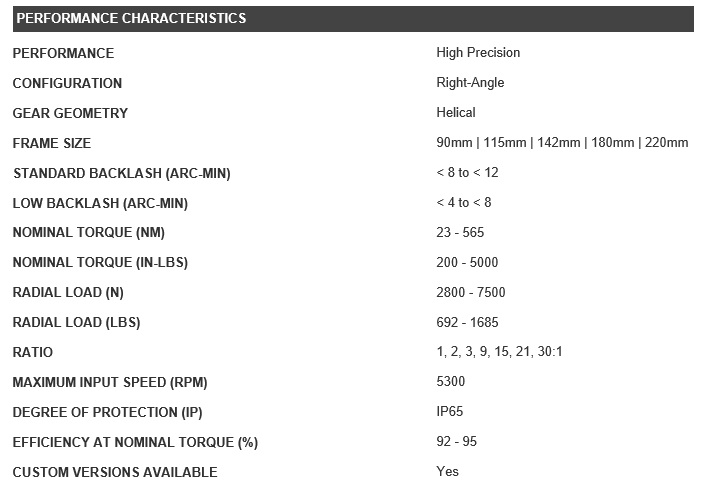

Features:

High Precision, Double Shaft Right-Angled Helical Gearhead
Frame Sizes: 90 – 220mm
Ratio Options: 1:1 - 30:1
High Torque / Low Backlash: helical planetary, spiral bevel gear geometry
Backlash: to < 8 arc-minutes (standard) / < 4 arc-minutes (optional)
Efficiency: up to 95%
Quiet Operation: less than 72db
Input Speeds: up to 5,300 RPM
Space Saving: Compact, right-angle design saves space in many applications
Smooth, Quiet Operation and Long Life: Hardened, precision spiral bevel gears ensure quiet operation
Quick, Error-Free Mounting to any servo or stepper motor using Parker's Servo Mount design
Sealed Unit: Seals and O-rings provide IP65 protection to prevent leaks and to protect against harsh environments
Spiral Bevel Gears: deliver high efficiency and high torque in a compact, right angle package
IP65 protection
