Parker:MPJ Series Low & High lnertia Rotary Servo Motors - MPJ0922C1E-NPSB

The MPP/MPJ family of brushless servo motors redefines performance, flexibility, and reliability

The MPP (MaxPlusPlus) Series is the industry’s highest performing servo motor. Utilizing eight pole segmented lamination technology, the MPP produces more torque in a shorter package. Use MPP motors for higher torque applications, customization options, or when high performance is required.

The MPJ (MaxPlus-J) Series of rotary servo motors from Parker features the same design characteristics as the MPP, but with 3 - 8 times the inertia of the standard MPP. This is a perfect solution for your applications requiring a high inertia servo motor.

The MPP Series features a new design that offers lower inertia and higher power, all in a smaller motor package. These brushless servo motors are designed for the demanding applications found in today’s high-performance servo systems.

The MPP motors feature segmented core technology, which can yield up to 40% higher torque per unit size than conventionally wound servo motors. “Potted” stators improve heat transfer for better thermal efficiency, resulting in increased torque at the motor shaft. High-energy neodymium magnets are employed for higher rates of acceleration.

Parker will customize any MPP/ MPJ motor to meet your specific system requirements. Parker does customs like no one else. We are specialists at customs, offering unrivalled custom motor solutions and support.

Common Customized Options:

• Shafts (longer, shorter, diameter change, hollow shafts)

• Front flange (bolt circle, pilot, NEMA dimensions)

• Motors coatings (white, PTFE, steel-it grey)

• Non-standard feedback devices

• Special connectors

• Special stator windings

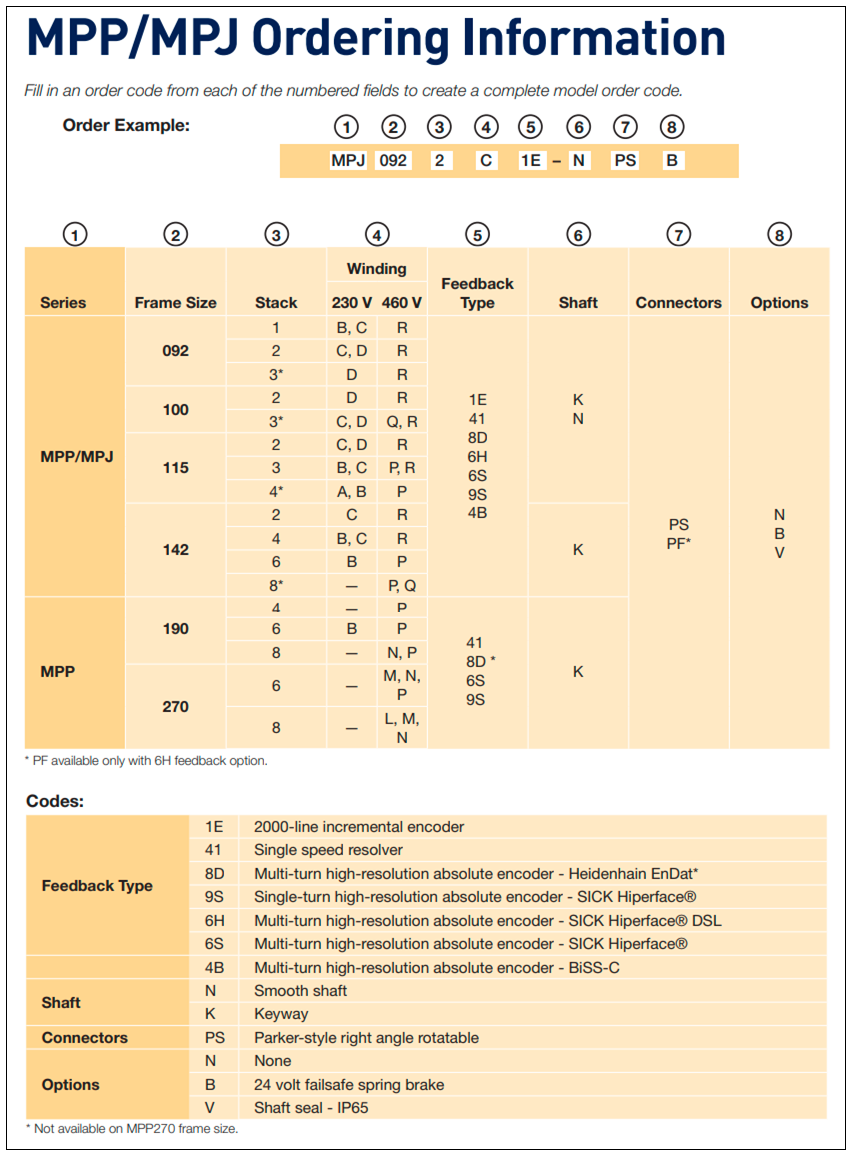

MPJ Motor Model No: MPJ0921C1E-NPSB, MPJ0922C1E-NPSB, MPJ0923C1E-NPSB, MPJ1002C1E-NPSB, MPJ1003C1E-NPSB, MPJ1152C1E-NPSB, MPJ1153C1E-NPSB, MPJ1154C1E-NPSB, MPJ1422C1E-NPSB, MPJ1424C1E-NPSB, MPJ1426C1E-NPSB, MPJ1428C1E-NPSB

Catalog and Specifications
		EC Declaration of Conformity
		MPP/MPJ Motor Catalog
User Guides
		Cable Selection & Drawings
		Connector Pinout - MPP / MPJ Motor
		FAQ: Absolute Encoders and Drive Compatibility
		FAQ: CMP, CMJ Custom Servo Motors
		MPP / MPJ Product Photos
		Sizing & Selection Tools CD Insert
		VIDEO: Parker MPP Servo Motors
Download - Drawings and CAD files
		3D CAD and Part Number Configuration - MPP/MPJ
		Hiperface DSL Drawings
