Parker: P1-10” PowerStation (P15 Series)

The new addition to the P1 PowerStation line features a 10” Pentium 166 processor package. Like the other P1 products, this new economical 10” unit is availble in color and mono display options with PC/104 expansion. The P1-10” comes bundled with Interact Core Modules (panel tools, graphics, alarming, and networking), and can also come bundled with any of the interact optional modules, as well as MachineLogic, CTC’s PC-Based Control software.

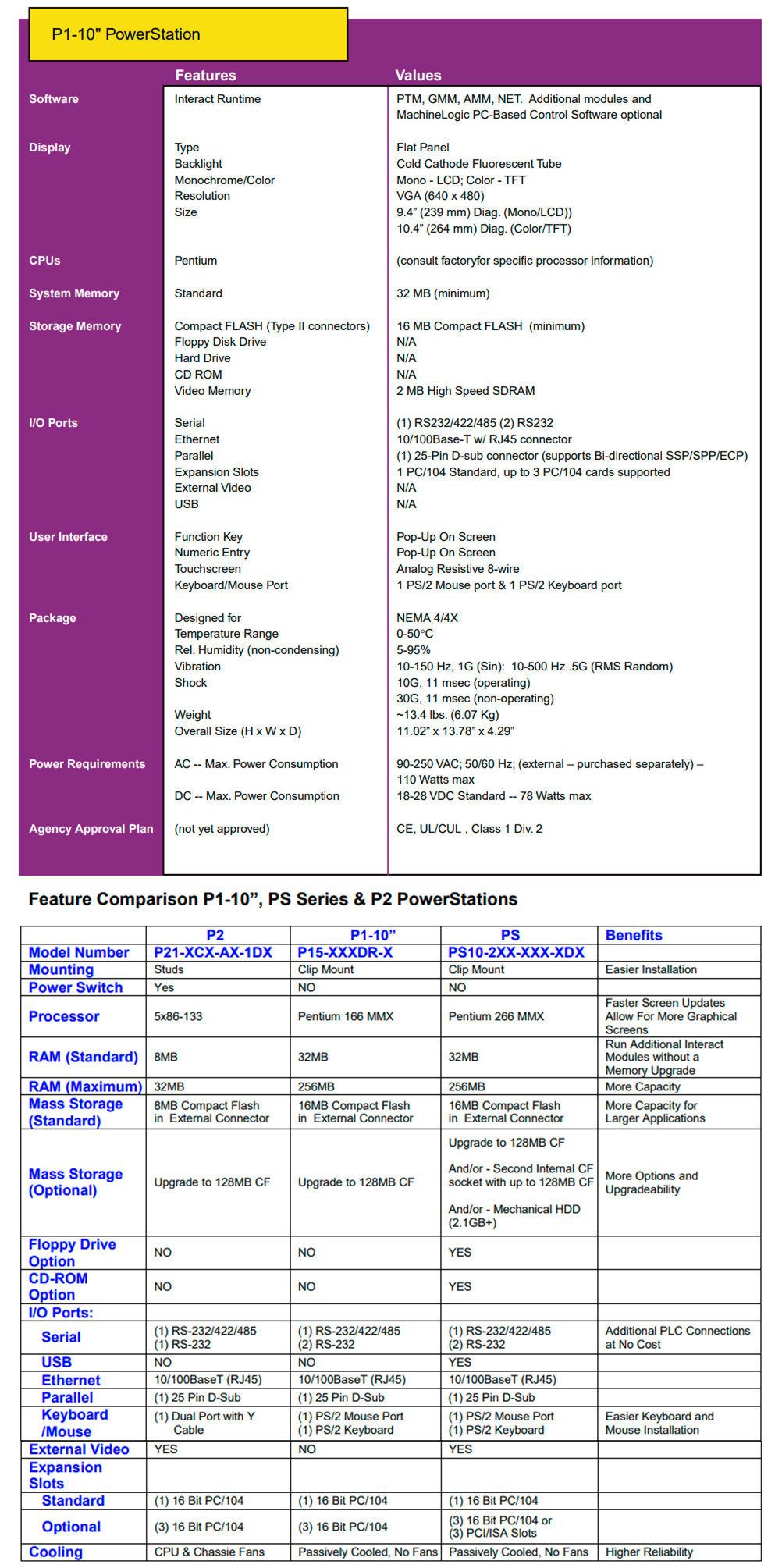

Overview of Changes from P2 to P1-10” PowerStations

Mounting Notes:

• Units will be clip mounted.

• Thickness of enclosure cannot exceed ¼“. This is thinner than the P2 PowerStation.

Power:

• P1-10” is DC powered.

• The new AC “brick” Power Supply released with the PS Series and the legacy Power Supply can be used with the P1-10”.

• New Power Supply can also be used for legacy product.

Depth:

• P1-10” units are 0.3” deeper than previous P2 units.

Other:

• Logo for P1-10” units is the same logo found on PS PowerStation and Monitor products.

• P1-10” requires MachineShop release 1.04 and FlashBack Utility release 1.03 or later.

Differences between P1-10” and PS PowerStations

Processor:

• P1-10” – Pentium 166MHz MMX

• PS – Pentium 266MHz MMX

Mass Storage:

• P1-10” and PS have a standard 16MB Compact Flash in an external Compact Flash slot. The Compact Flash may be upgraded to a maximum of 128MB.

• PS includes an option for an internal hard drive, or an internal Compact Flash. The P1-10” does not provide these options.

PS Options Not Supported by P1-10”

• Optional CD-ROM

• Optional Floppy Drive

• External Video Port

• USB Ports

• PCI/ISA Expansion Slots
