Parker: SM Series brushless servo motors SM231AE-NPSN

The SM Series brushless servo motors feature a slotless stator design.

This design eliminates all detent torque in the motor, allowing the SM Series motors to provide extremely smooth motion, especially at low speeds. The slotless design also creates a higher rotor inertia, which is ideal for applications involving high inertial loads (such as lead screws and belt drives).

The SM Series motors also feature a rugged anodized aluminum body and connector housing. An IP65 rating can be obtained on motors with PS or MS connectors and an optional shaft seal. All SM motors are CE (LVD) compliant.

Features

• NEMA size 16 and 23

• 0.8 to 11.3 lb-in continuous torque

• Brushless construction

• Slotless design provides negligible detent torque, reduced torque ripple and high inertia

• High-performance neodymium magnets

• Thermostat protected

• TENV housing

• IP65 option

• Feedback options – Encoder/Hall effect – Resolver

• Connectorization choices

• Special winding availability

• Custom modifications available

• Two-year warranty

• CAD models available

• CE Compliant

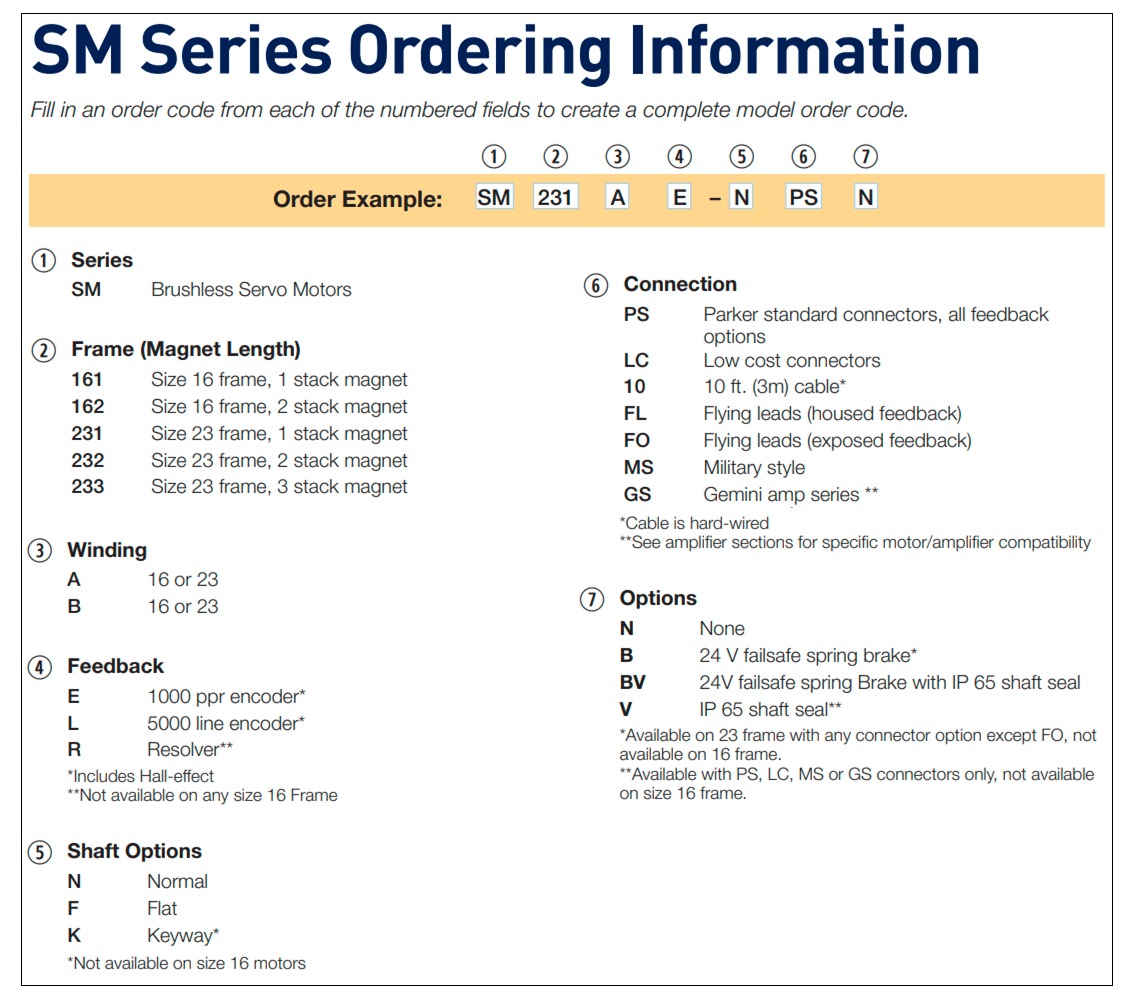

Order Code: SM161AE-NPSN, SM162AE-NPSN, SM231AE-NPSN, SM232AE-NPSN, SM233AE-NPSN
